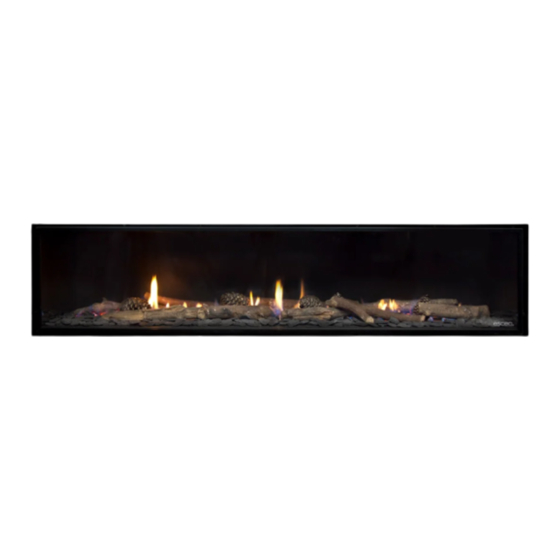

Escea DX1000 Installation And Service Manual

Hide thumbs Also See for DX1000:
Table of Contents

Advertisement

Quick Links

See also: Installation and Servicing Manual
Installation / Service Guide
DX1000 / DX1500
Gas Fireplaces
For the latest documentation, visit www.escea.com
630228_11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Escea DX1000

Summary of Contents for Escea DX1000

  • Page 1 Installation / Service Guide DX1000 / DX1500 Gas Fireplaces For the latest documentation, visit www.escea.com 630228_11...
  • Page 2 Installation must be carried out by a qualified and registered installer who, on completion of the installation, must issue a: AUS: Certificate of Compliance NZ: Energy Work Certificate in accordance with national and/or local codes. If these are not issued then the Escea war- ranty may be void.

  • Page 3: General Installation Information

    (eg. AS/NZS 5601.1). Any shortcomings in the appliance and flue installation will be the responsibility of the installer, and Escea will not be accountable for any such failings or their conse- quences.

  • Page 4: Table Of Contents

    Installation Process and Product Description Recommended Installation Process: Product Description Product Dimensions Creating the Cavity Cavity Shape Designing the Cavity Flue Configuration (For less than 4m length) Flue Configuration (For more than 4m length) Framing Dimensions Cavity Base Hearth Wall Linings Fascia Mantle Clearance Television Clearances...
  • Page 5 Cleaning the Fuel bed and Glass Checking Operating Pressure Replacing a Remote Control Replacing the burners Accessing the control tray Removing the Circuit Board Servicing the Horizontal / Vertical Powerflue Wiring Diagram DX1000 Star Rating Labels DX1500 Star Rating Labels...

  • Page 6: Installation Process And Product Description

    Section F Product Description The Escea DX1500 / DX1000 gas fire is a direct vent (fan draught balanced flue), room sealed gas appliance designed to be built into a cavity. This appliance is flued using a co- linear flexible aluminium flue connected to a powerflue terminal.

  • Page 7: A3 Product Dimensions

    Product Dimensions NOT TO BE MISTAKEN FOR CAVITY DIMENSIONS All dimensions are in mm DX1000 DX1500 664mm 914mm 1328mm 1828mm...

  • Page 8: Creating The Cavity

    • Home automation network connections - Ethernet cable layout This DX1500 / DX1000 fire is to be installed prior to any wall lining. The wall lining is the very last task to be completed in this installation. The cavity and wall linings may be constructed from standard timber framing materials and do not need to be non-combustible.

  • Page 9: B3 Flue Configuration (For Less Than 4M Length)

    Any joints within the flue system must be sealed adequately, with a sealing agent used if necessary. The flue system for the DX1500 / DX1000 is zero rated, so no spaces are required between the flue and any timber framing.

  • Page 10: B4 Flue Configuration (For More Than 4M Length)

    Flue Configuration (For more than 4m length) If your flue system is greater than 4m long (as shown in diagrams below), then a flexible flue with condensate trap and rigid PolyPro tube flue lengths is required. (For less than 4m flue runs, see section B3) 1.2m Co-axial Flue FOR MORE INFORMATION ON INSTALLATION OF THE POLYPRO...

  • Page 11: B5 Framing Dimensions

    B8. These dimensions indicate the opening required in any wall lining. These dimensions are for DX1500 / DX1000 without fascia, if using a fascia then please check the following section of this manual for separate wall lining dimensions.

  • Page 12: B9 Fascia

    Escea in no way guarantees or takes respon- sibility that the above installation suggestion will be suitable for all electrical or home entertainment appliances.

  • Page 13: B12 Ducting

    At least two of those outlets must be present in the same room that the fire resides in. There can be a maximum of 5 outlets for the DX1000 and 8 outlets for the DX1500. A standard duct kit (separate purchase) has provision for the three minimum outlets - You can use your own ductwork and outlets, but you must ensure they are rated to tempera- tures of at least 90 degrees Celsius and have an appropriate R-value.

  • Page 14: B13 Duct Fan Mounting

    B13 Duct Fan mounting Using the 3x spring mounts supplied, the duct fan should be installed in one of the following positions as shown below. You must use the spring mounts as this will help decrease noise by not transferring vibration into the walls. Run the electrical cable from the duct fan to the cavity where the appliance will be in- stalled.

  • Page 16: Installing The Electricity And Gas To The Appliance

    Installing the Electricity and Gas to the Appliance Power Supply While the cavity is being created consideration should be given to appropriate location of a standard 3 pin, EARTHED 230/240V power outlet. This must be within 1.0m of the bottom right of the appliance.

  • Page 17: C3 Gas Pipe Sizing

    DX1500 Gas Consumption = 42MJ/hr DX1000 Gas Consumption = 33MJ/hr Gas Pipe Position The gas connection is inside the appliance and is ½” male BSP on the lower right of the appliance as shown.

  • Page 18: Installing The Flue

    Installing the Flue Note: The appliance is designed to operate using the approved flexible flue supplied by Escea. Using other brands of flue may affect the appliance warranty. D1 Installing the Horizontal Powerflue Wall Terminal option The Horizontal Powerflue Wall Terminal must be installed in the correct orientation.

  • Page 19: D2 Installing The Vertical Powerflue Roof Terminal Option

    D2 Installing the Vertical Powerflue Roof Terminal option The vertical flue option is designed to have the box containing the fan and electricals mounted within the roof space of the house, and the vertical 200mm diameter twin wall flue pen- etrate through the roof.

  • Page 20: D3 Installing The Horizontal Powerflue Option

    D3 Installing the Horizontal Powerflue option The location of the Horizontal Powerflue Wall Terminal must be installed in accordance with AS/NZS 5601.1 and any other relevant building codes. Avoid installing the Horizontal Powerflue Wall Terminal in areas exposed to high winds and extreme weather, if possible. D4 Installing in Accordance with Relevant Codes Some of those minimum clearances for a fan assisted wall terminal are listed below;...

  • Page 21: D5 Creating The Hole In The Outside Wall

    D5 Creating the Hole in the Outside Wall When cutting the hole in the outside wall, be mindful of how the installation Horizontal Powerflue Wall Terminal will be finished, the installation must be weatherproof. Ideal hole/cavity size for Horizontal Powerflue 298mm 298mm 175mm...

  • Page 22: D6 How To Flash The Horizontal Powerflue

    D6 How to flash the Horizontal Powerflue The following diagrams are excerpts from the escea architect drawings, and are available in full on our website. These diagrams are recommendations, and your installation must comply with any local or national building codes.

  • Page 23: D8 Running The Flue

    Horizontal Powerflue Wall Terminal will be installed in the outside wall. The flue system for the DX1500 / DX1000 is zero rated, so no spaces are required be- tween the flue and any timber framing. Allow enough stretch in the flexible aluminium flue to allow it to be able to sit just outside of the wall.

  • Page 24: Installing The Appliance

    Installing the Appliance Double Sided conversion If the appliance is to be double sided, you will have been supplied with an extra glass panel and steel support frame and wall lining trim brackets. 1. On the rear of the appliance, unscrew the outer shell cover and remove it as shown 2.

  • Page 25: E2 Installing The Appliance

    Installing the Appliance Insert the gas fire into the cavity and bolt down in correct position using the brackets on each end of the appliance. It is a requirement that this appliance be securely fastened at the base. On the right hand side of the appliance: Connect the powerflue electrical cable.

  • Page 26: E5 Removing (And Replacing) The Glass

    Removing (and replacing) the Glass Using the supplied 3mm Allen Key (hex drive) remove the bolts around the glass retainer ensuring that the glass does not fall forward. Pull the top of the frame toward you slightly and lift the glass and frame out and away from the fire.

  • Page 27: E7 Gas Type Conversion

    NG to ULPG/Propane or vice versa. WARNING: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended for use with this Escea fire, will void the limited appliance warranty.
  • Page 28 Step 5: Remove the regulator screw cap and screw out the nylon adjuster screw to remove the existing spring. Replace the spring with the purple spring supplied in the conversion kit and reassemble the regulator. Step 6: Cover the existing gas type label with the new gas type label supplied in kitset. Ensure serial number and date of manufacture are still visible.

  • Page 29: E8 Checking The Gas Operating Pressure

    Note: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended for use with an Escea fire, will void the limited appliance warranty and may be dangerous.

  • Page 30: E9 Operating The Appliance

    If unable to acheive pressures from table in E8: Adjust point B (shown in section E8) with a 3mm allen key to adjust the LOW setting, and a 2mm allen key to adjust the HIGH setting. NOTE: Do not use a ball-end allen key. Use only square- end allen keys for adjusting this point.

  • Page 31: E10 Auxillary On/Off Button

    E11 Home Automation Setup Escea D-Series fireplaces have a simple interface for connection to a home automation system. Simply put this allows the fireplace to be woken up and started and then shut down. The “Close to wake” connection shown is essentially taking one of the 3.3 volt DC pins on the fireplace micro controller and pulling it down to ground.

  • Page 32: E12 Reinserting Fuel Bed And Ceramic Glass

    Home Automation Operation: Relay closed The fireplace will start in a medium setting until it receives a signal from the remote con- trol unit (up to 4 minutes). Once the remote has communicated with the fireplace it will turn on and begin operating the fireplace thermostatically. The remote will use whatever temperature the user has previously set and cannot be altered by the home automation system.

  • Page 33: Finishing The Installation

    For the DX1000 you should use the 7x supplied 600ml bags of shale (chips), and for the DX1500 you should use the 10x supplied bags.

  • Page 34: F3 Wall Lining

    Note: If the glass gasket requires a replacement, call your nearest Escea agent who will ensure the part is replaced with the correct type. In the event that the glass is broken by impact, purchase the replacement from an authorised Escea agent only.

  • Page 35: F4 Fitting The Fascia Panels

    Fitting the Fascia Panels To avoid scratches or knocks to the fascia panels of this heater they must be fitted at the complete conclusion of the installation process, after wall linings are in place. Note: Never ever rub the fascia. Step 1: Ensure the plastic spacer is placed on the thread of the studs.

  • Page 36: F5 Locating Wall Mount Cradle For Wireless Control

    A suitable distance away from the heater Ideally 1.2m to 1.5m from the floor The radio frequency signal will go through some walls but for best results Escea suggest that the cradle position is less than 10 metres away from the heater.
  • Page 37 Run the appliance again and check the operation of the thermostat by increasing and reducing the set temperature. Check the Flame Effect function and the Fan Boost functions work correctly. For further operation instructions please refer to the User Guide. Final checklist Run the appliance on full for an hour with the doors &...

  • Page 38: F7 Normal Operating Sounds And Smells

    Fan: Escea gas appliances use electric fans to push heated air into the room. It is not unusual for the fan to make a “whirring” sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan.

  • Page 39: Installation Checklist

    Installation Checklist Go through the following checklist to ensure you have installed the appliance correctly Correctly sized cavity to suit your fascia and flue configuration Correct clearances to combustibles and mantles around the fascia An electrical isolating switch to the appliance, accessible after finished installation Correctly sized gas supply with a pressure test point, ensuring adequate supply with all other gas appliances in the dwelling running A weather-tight installed Horizontal or Vertical Powerflue Terminal with clearance as...

  • Page 40: Service Manual

    Service Manual IMPORTANT: • This appliance must be serviced every 12 months. • Any service operation should be carried out only by a suitably qualified and trained person. • Gas and electricity supply MUST be isolated before any service operation is carried out on this appliance.

  • Page 41: S2 Error Codes

    Error Codes This gas fire has been designed to show error codes to help explain and identify any fault situation that occurs. These codes will appear on the wireless remote control in the form of a large letter “E” with a number beside it. Codes can normally be reset by turning the heater off then on again at the wall.
  • Page 42 The bimetallic snap disk mounted on the exhaust collector box has tripped. The possible causes for this could include: • Possibly fascia panels installed incorrectly resulting in restricted air flow. Appliance Over • Room air fans may be slowed or stalled. Check that fans are plugged Temperature in, cleaned, and free turning Sensor Trip...

  • Page 43: S3 Cleaning The Fuel Bed And Glass

    The outside of the fascias must only be cleaned with a clean damp cloth, dry off after cleaning. The high temp silver powder coating that is used on Escea fascia parts contains certain amounts of aluminium that when rubbed too hard will oxidise leaving a black smudge that cannot be removed.

  • Page 44: S4 Checking Operating Pressure

    Checking Operating Pressure WARNING: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended for use with an Escea fire, will void the limited appliance warranty. By law, the original installer has supplied a test point prior to the appliance. With all gas appliances within the house running on full, including this DX1500, check the inlet pres- sure upstream of the appliance.

  • Page 45: S5 Replacing A Remote Control

    Replacing a Remote Control If the wireless control becomes lost or damaged, a new one can be ordered from any Escea retail agent. When you have the new remote, the following procedure needs to be followed to “teach” the remote to only communicate with that fire.

  • Page 46: S6 Replacing The Burners

    Replacing the burners If a fascia is fitted, remove this first. Using the supplied 3mm Allen Key (hex drive) remove the bolts around the glass retainer ensuring that the glass does not fall forward. Pull the top of the frame toward you slightly and lift the glass and frame out and away from the fire.

  • Page 47: S7 Accessing The Control Tray

    Accessing the control tray Remove the screws in the bottom and the inner side of the firebox as per shown. Remove the ‘engine’ by lifting up and to the left. This is still connected internally to the gas hose and power cables. Place engine just to the left within firebox as shown. Removing the Circuit Board Step 1: Remove the Pilot cover and 2 jets circled to the...
  • Page 48 Step 3: Remove the clear plastic insulation cover from ontop of the circuit board by removing the screws circled below. Step 4: Remove all 5 connections to the circuit board as highlighted below. Step 5: Remove any screws securing the circuit board to the base and remove the circuit board.

  • Page 49: S9 Servicing The Horizontal / Vertical Powerflue

    Servicing the Horizontal / Vertical Powerflue Ensure the power to the Powerflue is off by disconnecting the power to the appliance inside. If the appliance has been running, allow the Powerflue to cool before attempting to service it. Servicing a horizontal Powerflue: If the Powerflue needs servicing, the fan can be accessed from the outside of the instal- lation for Horizontal termination, and accessed from within the roof space for Vertical termination.

  • Page 50: S10 Wiring Diagram

    S10 Wiring Diagram...

  • Page 51: S11 Dx1000 Star Rating Labels

    S11 DX1000 Star Rating Labels...

  • Page 52: S12 Dx1500 Star Rating Labels

    S12 DX1500 Star Rating Labels...
