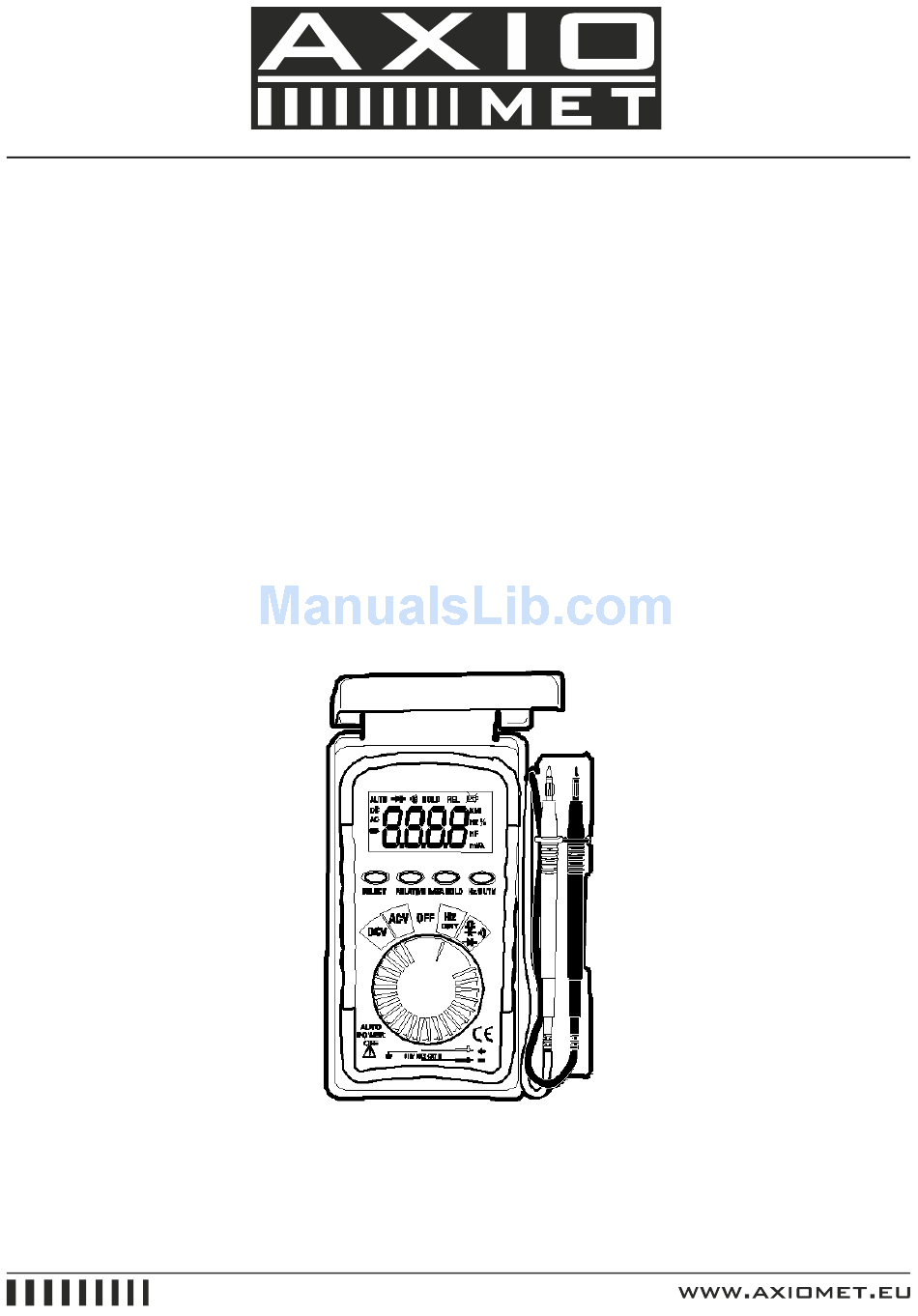

- Page 1 POCKET AUTORANGING AX-MS811 OPERATION MANUAL...
- Page 2 Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation Safety Precautions 1.
- Page 3 Specifications Electrical Specifications Function Range Accuracy ±(0.7% rdg + 3d) DC Voltage 400.0mV ±(1.0% rdg + 3d) 4.000V, 40.00V, ±(1.3% rdg + 3d) 400.0V, 500V ±(1.0% rdg + 10d) AC Voltage 4.000V, 40.00V 40-60Hz ±(2.3% rdg + 5d) 400.0V, 500V ±(2.0% rdg + 5d) Resistance 400.0Ω4.000kΩ, 40.00kΩ, 400.0kΩ...
- Page 4 Size 4.25x2.2x.5” (108x56x11.5mm) Standard IEC1010 CAT II 500V Pollution degree II, CE Approved Operation AC or DC Voltage Measurement 1. Set the function switch to the “DCV” position for DC voltage measurements, or “ACV” position for AC voltage measurements. 2. Touch the test probe tips to the circuit under test. Be sure to observe the correct polarity (red lead to positive, black lead to negative).
- Page 5 2. Press the Hz/DUTY button once to display Duty Cycle %. Pressing the button again will toggle the display to frequency (Hz). 3. Touch the test probe tips to the circuit under test. Be sure to observe the correct polarity (red lead to positive, black lead to negative).
