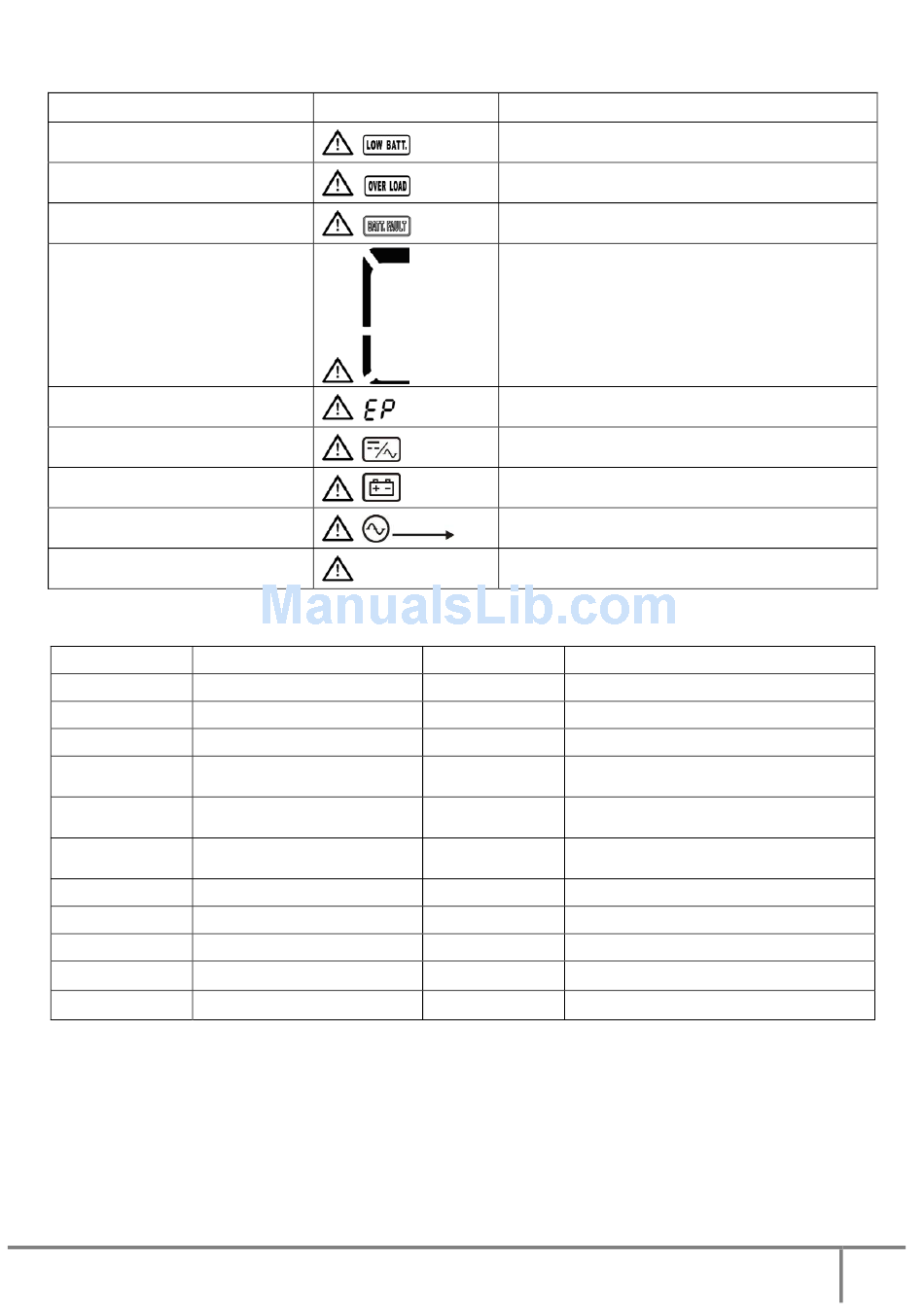

3-10. Warning Indicator

Warning
Battery low
Overload
Battery unconnected
Over charge
EPO enable
Fan failure/Over temperature
Charger failure
I/P fuse broken
Overload 3 times in 30min

3-11. Warning Codes

Warning code Warning event
01 Battery unconnected
02 IP Neutral loss
04 IP phase abnormal
05 Bypass phase abnormal
07 Over charge
08 Low battery
09 Overload
0A Fan failure
0B EPO enable
0D Over temperature
0E Charger failure
* These alarms are only for the single input unit.
