L1 L2 L3 N L1 L2 L3 N L1 L2 L3 N

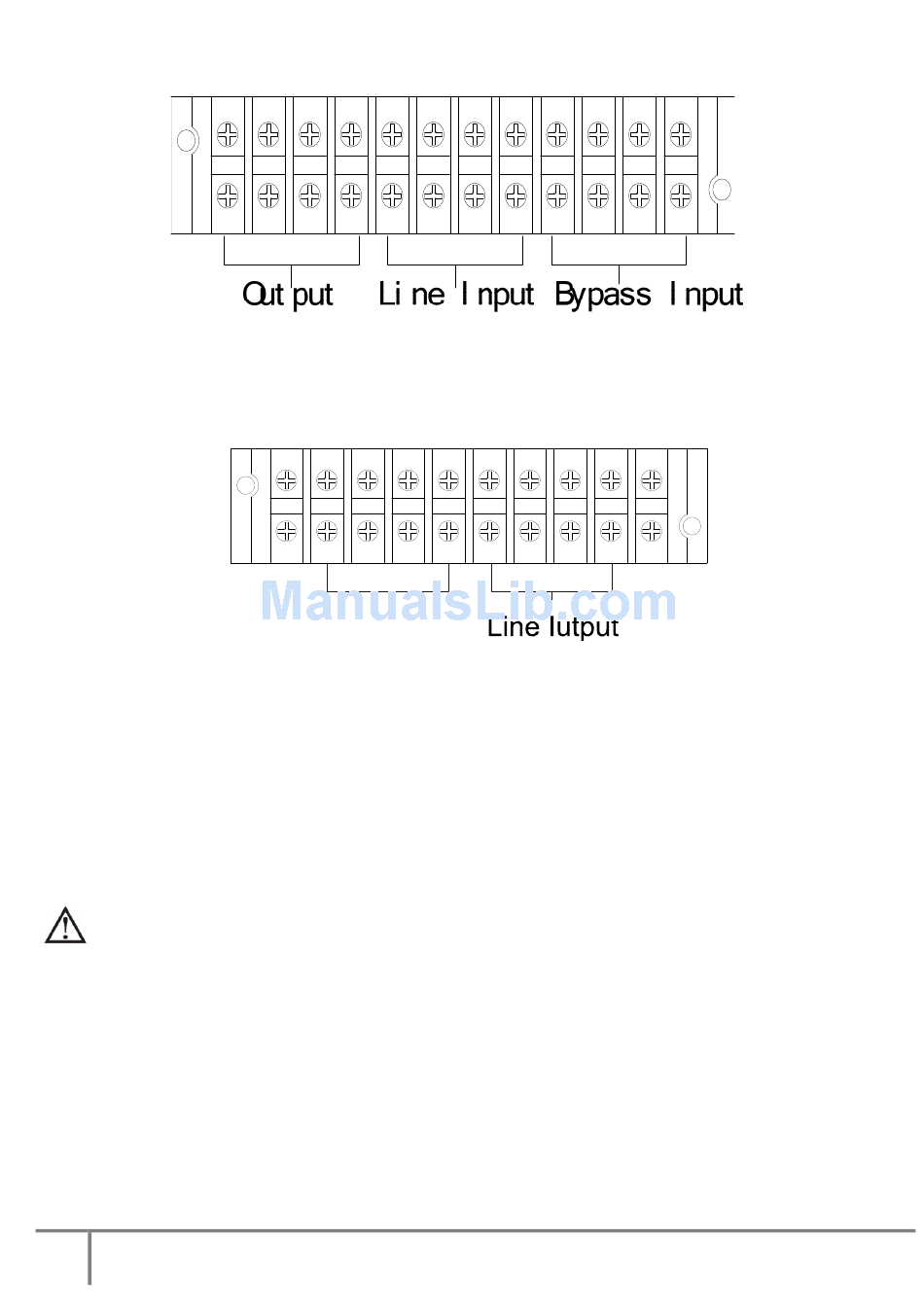

Terminal Block wiring diagram of E4 LCD TT 10K(S), 15K(S) & 20K(S)
For dual input unit, if there is two separate input, connect the Line input and bypass input respectively; if the is only
one common input, please connect the line input and bypass input together.
NOTE 1: Make sure that the wires are connected tightly with the terminals.
NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker should be
qualified with leakage current protective function if necessary.
6) Put the terminal block cover back to the rear panel of the UPS.
Warning: (Only for the standard model)
● Make sure the UPS is not turned on during installation. The UPS should not be turned on during wiring
connection.
● Do not try to modify the standard model to obtain the long-run model. In particular, do not try to connect the
standard internal battery to any external battery not provided by Infosec. The battery type and voltage may be
different. If you connect them it may cause an electric shock or fire!
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
55
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr –12 13 AA 59 203 07
L1 L2 L3 N L1 L2 L3 N
GND
Output
Terminal Block wiring diagram of E4 LCD TT 30K(S)
GND
