user manual
FeaTureS
1. compact Dimensions: 220×90×40
2. Material: aluminium
3. Display Options: lcD-display med 5 tecken
4. Capacity/Division:
TABELL 1
CAPACITY
200 kg
5. Power: rechargeable battery 6×aa / ac adapter 9V 500ma
6. Power saving: auto shut-off timing selectable (120seconds/180seconds/240seconds/360secons/off)
7. Operating Temperature: 5 – 35°c
8. Operating Humidity: 25 % - 95 % rH
9. 4Keys:
11. Zero Range: (4 % to full capacity)
12. Tare Range: (100 % to full capacity)
13. error Message indication: eeeee overload
Scandinavia's largest webshop for scales

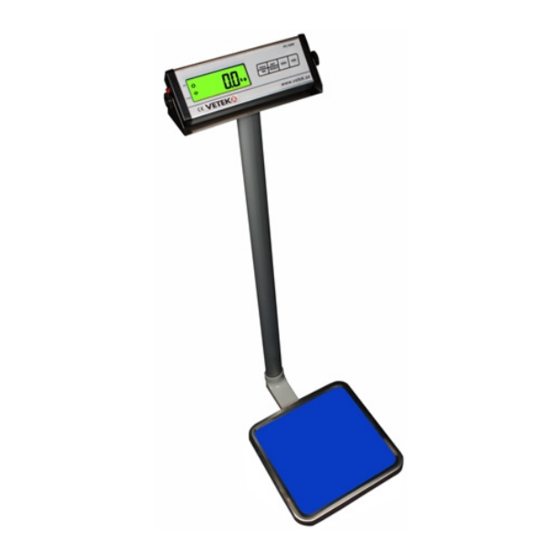

perSonal Scale: Fr-MS
(MS3200 Indicator, product Type MS-3200)
DIVISION1
0,05 kg
HolD/BMI , unIT/WeIGHT , Zero , Tare
HolD/BMI
press this key to store weight value
unIT/WeIGHT Toggle among KG and lB unit
Zero
Zero the weight
Tare
Tare the weight
errl
power on zero count too low
errH
power on zero count too high
erre
eeprom error
low battery indication
Box 79, Industrivagen 3
760 40 Vaddo, Sweden
DIVISION 2
0,1 kg
Tel. +46 (0)176-208920
Web
www.vetek.com
Fax +46 (0)176-208929
Email info@vetek.com
DIVISION 3
0,2 kg
1
REVISED
03.2010
Advertisement
Related Manuals for Vetek FR-MS
Summary of Contents for Vetek FR-MS
-
Page 1: User Manual
Scale: Fr-MS (MS3200 Indicator, product Type MS-3200) FeaTureS 1. compact Dimensions: 220×90×40 2. Material: aluminium 3. Display Options: lcD-display med 5 tecken 4. Capacity/Division: TABELL 1 CAPACITY DIVISION1 DIVISION 2 DIVISION 3 200 kg 0,05 kg 0,1 kg 0,2 kg 5. -
Page 2: Auto Shut Off Mode
B. put a container on the scale, press this key to tare the weight, and the tarred value is stored. 5. STRÖMBRYTARE: When the scale is in use or not in use, please turn the power on or the power off. www.vetek.com info@vetek.com... -
Page 3: Function Table
FuncTIon TaBle: press and hold [ HOLD/BMI] to turn the power, and then press continuously [UNIT/WEIGHT] three times, the display will show the “SET”. www.vetek.com info@vetek.com... - Page 4 3. Press and hold the HOLD key, until it display HLT 100, it means to input your height in cm 4. Press HOLD and UNIT keys until the display 180, it means 180cm 5. Press TARE, it display 80kg and 25%. www.vetek.com info@vetek.com...
- Page 5 1 (red)------- e+(positive source) pin 2 (blue)------- S+(positive signal) pin 3 (black)------- e-(negative source) pin 4 (white)------- S-(negative signal) pin 5 (no) no sign ------- 2. Rechargeable battery socket: AC/DC 9V――――――inner positive ,external negative 3. RS232 interface: DB9 www.vetek.com info@vetek.com...
