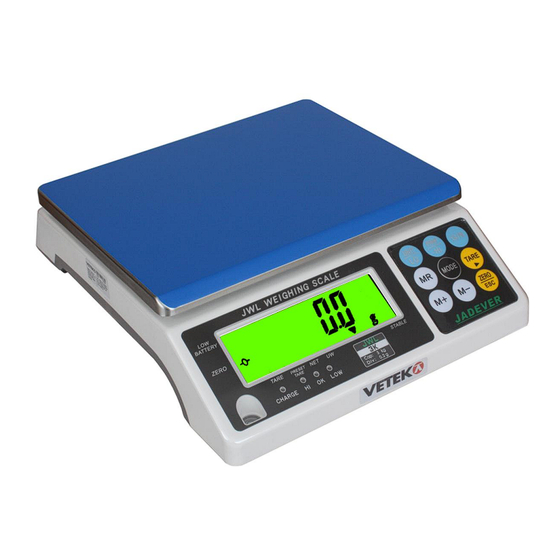

Summary of Contents for Vetek JWL Series

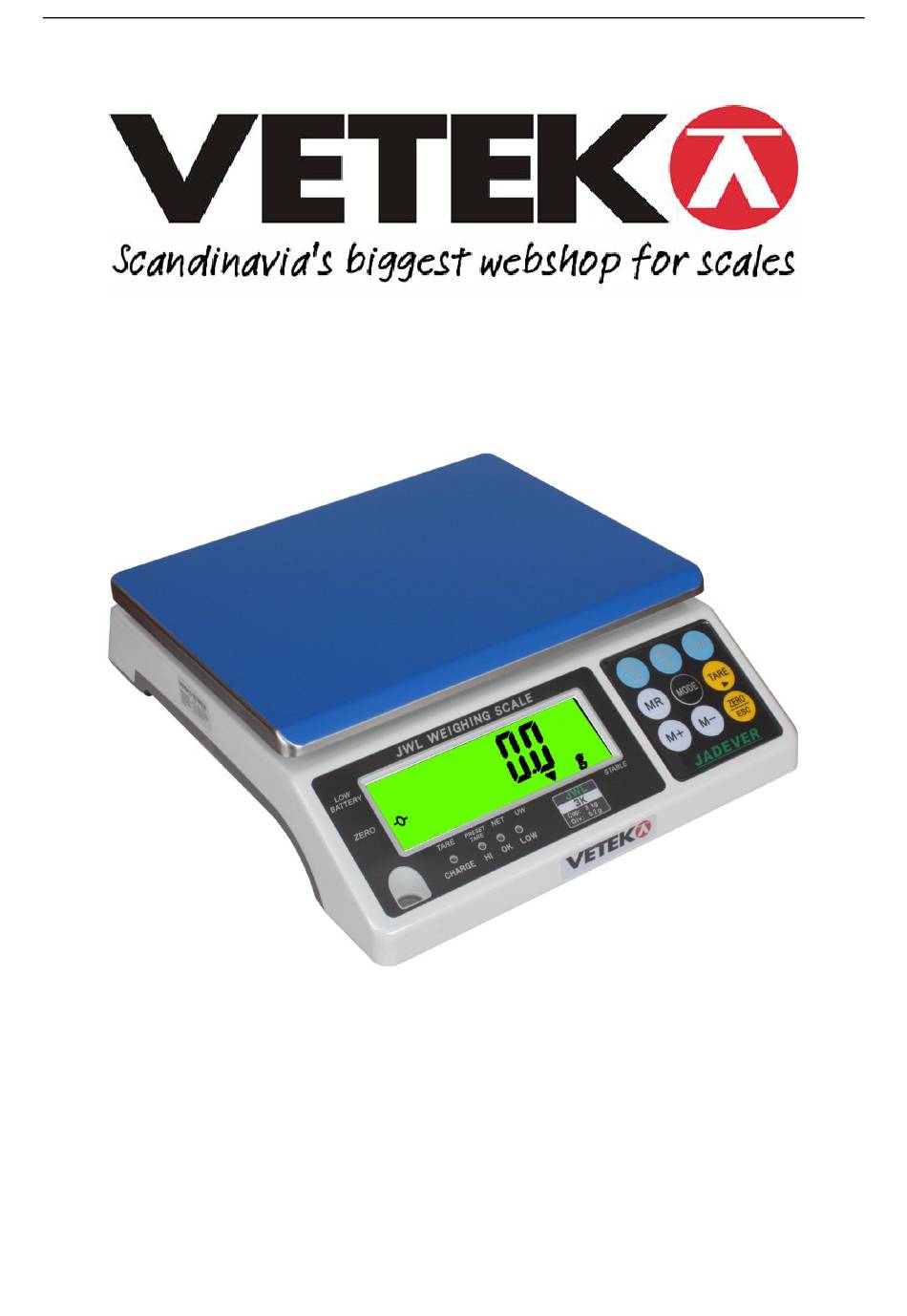

  • Page 1 Vetek Weighing AB User Manual weighing scale JWL. Manual_JWL_V1...

  • Page 2: Table Of Contents

    Vetek Weighing AB CONTENTS ………………………………….…………………………………………. 1. Introduction …………………………………….……………………………………….. 2. Precautions 3. Before Using the Product 3-1 Unpacking and Checking………………………………………………………………….. 3-2 Installing Components ………………………………………..…………………………… 3-3 Leveling the Scale………………………………………………..………………………… 4. Product Introduction 4-1 Specifications & General Features …………………………………......4-2 Display …….……………………………………………………………………………….. 4-3 Keyboard…………………………………………………………………………………….

  • Page 3: Introduction

    Vetek Weighing AB 1. Introduction This manual contains installation and operation instructions for the JWL Series weighing scale. Please read the manual completely before installation and operation. 2. Precautions ◎ Place the scale on a flat and stable surface( Refer to Section 3-3).

  • Page 4: Specifications & General Features

    Vetek Weighing AB 4-1 Specifications & General Features Specifications Model 1.5K 7.5K Capacity (Kg) Division-1 (g) Division-2 (g) Division-3 (g) Division-4 (g) 0.05 Display LCD(liquid crystal display), digits 31mm high, with back lighting Pan size 294X228X13.5mm Scale Dimensions 341X294X104mm AC 110V/220V (AC±10%) or built-in rechargeable battery （6V/4A）...

  • Page 5: Keyboard

    Vetek Weighing AB Low battery indication Tare or Preset Tare Indication Center of Zero Indication, The zeroing range is ±2﹪of weighing capacity. Auxiliary display (parameter, accumulated number of weighments) TARE Symbol “ ” points at “TARE” when manual Tare action is done.

  • Page 6: Power Supply

    Vetek Weighing AB PRINT/HI ＊ Short press sends data a RS232 port; long press lower limit initials lower limit setting ＊ Shift key (shift rightwards) ＊ Displays gross and net weight by turns ＊ Stores current condition ＊ Memory recall ＊...

  • Page 7: Weighing

    Vetek Weighing AB Low Battery Warning When appears in the upper left corner of the weight window, the battery requires recharging. The charge lamp turns green from red when the recharging is completed (which takes about 8 hours).Disconnect the scale from power supply when it is fully charged.

  • Page 8: Checkweighing

    Vetek Weighing AB to save and return to weighing mode, the screen display “ " before 3) Press key → reverting to preset tare value. 2) Put the load on the container, the scale will automatically deduct the value of the container from the total value.

  • Page 9: Accumulation, Accumulation Display And Accumulation Clearing

    Vetek Weighing AB 500、1000( pieces) . “ ” 4) Put the corresponding samples on the weighing pan, and then press key is displayed momentarily before the display reverts to the sample size. → 5）Remove the samples and put the load on, the scale begins to count.

  • Page 10: Calibration

    Vetek Weighing AB Press key or key to choose setting item p11,(There are 12 available setting items UNIT/LO ---p00-p11, indicated by Auxiliary display at the Lower Left corner.) then press key to start the unit setting menu. 2) How to set the init weight unit?

  • Page 11: Single Point Calibration

    Vetek Weighing AB JWL-6K, 1/3 of full load is 2 kg) 4) Wait till appears, put weights of 2/3 of full load on the weighing pan (E.g. for JWL-6K, 2/3 of full load is 4 kg) 5) Wait till appears, put weights of full load on the weighing pan (E.g. for JWL-6K, full load is 6kg) 6) The calibration procedure ends up with a symbol of “...
  • Page 12 Vetek Weighing AB desired one . UNIT/LO PRINT/HI 3) Press key or key to set the content values of setting items. MODE 4) Press key to save the settings and go back to the weighing mode. Description of Parameter Values 1) P00 Set the period of inactivity before the scale automatically turns off.

  • Page 13: Serial Interface

    Vetek Weighing AB =Enable =Disable 7) P06 Set the activation mode of backlight. Options are ONOFF (Auto on with items greater than 9d placed on the weighing pan or any key is pressed), ON (Backlight on) and OFF (No backlight) 8) P07 Set Print mode.

  • Page 14: Troubleshooting And Error Message

    Vetek Weighing AB 9. Troubleshooting and Error Message Error Status Possible Causes Basic Inspection & Treatment Press down the key to begin E02 no.samp PCS no sampling sampling. Re-solder EEPROM or contact E04 EE.ERR EEPROM access error Service . Remove weight that is greater than E05 out.ran...
