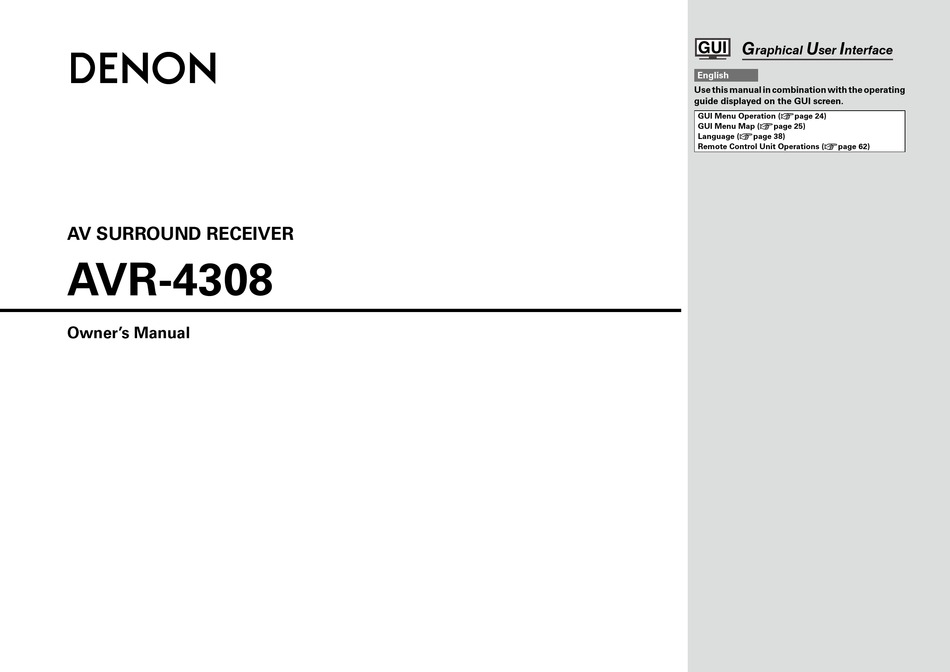

AV SURROUND RECEIVER
AVR-4308
Owner's Manual
G
U
I
raphical
ser
nterface
English
Use this manual in combination with the operating
guide displayed on the GUI screen.
GUI Menu Operation (vpage 24)
GUI Menu Map (vpage 25)
Language (vpage 38)
Remote Control Unit Operations (vpage 62)

Advertisement

Table of Contents
loading

Related Manuals for Denon AVR-4308

Summary of Contents for Denon AVR-4308

  • Page 1 English Use this manual in combination with the operating guide displayed on the GUI screen. GUI Menu Operation (vpage 24) GUI Menu Map (vpage 25) Language (vpage 38) Remote Control Unit Operations (vpage 62) AV SURROUND RECEIVER AVR-4308 Owner’s Manual...

  • Page 2: Safety Precautions

    Hereby, D&M Holdings Inc., Denon Brand Company declares that this • Do not expose the unit to dripping or splashing fluids. product AVR-4308 is in compliance with the essential requirements and • Do not place objects filled with liquids, such as vases, on the unit.

  • Page 3: Table Of Contents

    Monitor Out ············································································31 Connections to Other Devices ····················································· 17 Audio Setup ··················································································32 Components Equipped with a DENON LINK connector ·············· 17 a EXT. IN Setup ·········································································· 32 Video Camera / Game Console ···················································· 18 s 2ch Direct/Stereo ···································································· 32 Component with Multi-channel Output connectors ·····················...
  • Page 4 Selecting the Input Source ···························································75 Playing Files Stored on USB Memory Devices ······················58, 59 Status ····························································································47 Adjusting the Volume ···································································75 Operating the AVR-4308 Using a Browser (Web control) ············59 a MAIN ZONE ············································································47 Turning off the Sound Temporarily ················································75 s ZONE2/3/4 ··············································································47 Audio Input Signal ········································································48...

  • Page 5: Accessories

    • Power is supplied to some of the circuitry even when the unit is Thank you for purchasing this DENON product. To ensure proper set to the standby mode. When traveling or leaving home for long b Note operation, please read these owner’s manual carefully before using...

  • Page 6: About The Remote Control Unit

    • Replace the batteries with new ones if the set does not operate even Unit In addition to the AVR-4308, the included main remote control unit when the remote control unit is operated close to the unit. (RC-1068) can also be used to operate the equipment listed below.

  • Page 7: Part Names And Functions

    GWith the door openH SOURCE button ·········································· (39) D.LINK indicator Output signal channel indicators This lights when playing using DENON LINK TUNING PRESET button ···························· (51) Surround speaker indicators connections. ZONE 2/3/4 / REC SELECT button ······ (60, 75)

  • Page 8: Rear Panel

    DOCK CONTROL jack ································· (14) USB port ······················································ (19) EXT. IN connectors ····································· (18) Speaker terminals (SPEAKERS) ················ (10) DENON LINK connector ····························· (17) SIGNAL GND terminal ······························· (14) AC OUTLET ················································· (23) COMPONENT VIDEO connectors ·············· (13) AC inlet (AC IN) ··········································· (23)

  • Page 9: Remote Control Unit

    Remote Control Unit n Main remote control unit (RC-1068) n Sub remote control unit (RC-1070) System buttons ···································· (63, 64) ZONE indicators·········································· (70) Audio delay button (A. DL) ························ (47) Advanced setup button ······························ (70) Tuner system buttons ································ (50) Input source select buttons ·······················...

  • Page 10: Connections

    With some types of connections, certain settings must be made Coaxial digital connections Component video connections on the AVR-4308. For details, refer to the instructions for the (Green) (Orange) respective connection items below.

  • Page 11: Video Conversion Function

    AVR-4308 to a monitor. • The resolution of the HDMI input-compatible monitor connected to the AVR-4308 can be checked at GUI • The AVR-4308’s video input/output circuitry is compatible with the following four types of video signals: menu “Information”...

  • Page 12: Speaker Connections

    Front speakers Place the front speakers to the Surround speakers sides of the monitor or screen and as flush with the screen surface as possible. The table below shows a typical speaker configuration for the AVR-4308. SURROUND SURROUND SURROUND FRONT BACK...
  • Page 13 If the protection circuit is activated again even though there are no counterclockwise to loosen it. problems in the ventilation around the set nor in the connections, the set may be damaged. Turn the power off, then contact a DENON Insert the speaker cable’s core wire to service center.

  • Page 14: Connecting Equipment With Hdmi Connectors

    PCM 16/20/24 bits Dolby Digital, DTS Bitstream DVD-Video 2/5.1ch • When the AVR-4308 and DVD player are connected using an HDMI cable, also connect the AVR-4308 and 2.8224 MHz SACD monitor using an HDMI cable. 1 bit • If the connected monitor or DVD player only has a DVI-D connector, use an HDMI/DVI converter cable.

  • Page 15: Connecting The Monitor

    Connecting the Monitor Connecting the Playback Components • Connect the cables to be used (vpage 9 “Video Conversion Function”). Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect • With HDMI connections, the video and audio signals can be transferred with a single cable. correctly.

  • Page 16: Record Player

    Connect the cables to be used. Use a DENON Control Dock for iPod (ASD-1R, sold separately) to Turntable (MM cartridge) connect the iPod to the AVR-4308. For instructions on the Control CD player Dock for iPod settings, refer to the Control Dock for iPod’s operating instructions.

  • Page 17: Tv/Cable Tuner

    TV/CABLE Tuner Satellite Receiver Connect the cables to be used. Connect the cables to be used. TV tuner DBS / BS tuner When using an optical cable for the digital audio connection, make the settings at GUI menu “Source • When using a coaxial digital cable for the digital audio connection, make the settings at GUI menu “Source Select”...

  • Page 18: Connecting The Recording Components

    Connect the cables to be used. Digital video recorder • When recording via the AVR-4308, the playback device’s cable must be of the same type as the cable used to connect the AVR-4308’s VCR OUT connector. Example: TV IN → S-Video cable : VCR OUT → S-Video cable TV IN →...

  • Page 19: Cd Recorder / Md Recorder / Tape Deck

    DVD player NOTE Do not connect the output of the component connected to the AVR-4308’s OPTICAL3 output connector to any input connector other than OPTICAL3. To use with DENON LINK connections, make the settings at GUI menu “Source Select” – “Assign” –...

  • Page 20: Video Camera / Game Console

    Mode” – “Input Mode” – “EXT. IN” (vpage 40). • The video signal can be connected in the same way as a DVD player (vpage 13). • To play copyright-protected discs, connect the AVR-4308’s EXT. IN connector with the DVD player’s analog multi-channel output connector.

  • Page 21: Usb Port

    • Set to the USB port you want to use. • The AVR-4308 is equipped with two USB ports, one each on the front and rear panels. It is not possible to use the set with USB memory devices connected to both the ports at the same time. Select the USB port you want to use at the GUI menu “Source Select” – “NET/USB” –...

  • Page 22: Antenna Terminals

    Antenna terminals An FM antenna cable plug can be connected directly. Direction of broadcasting station AM loop antenna FM antenna (supplied) 75 Ω/ohms Coaxial cable FM indoor antenna (supplied) AM outdoor antenna Ground AM loop antenna assembly Connect to the AM Connection of AM antennas antenna terminals.

  • Page 23: Network Audio

    100 Mbps or greater. “Manual Setup” – “Network Setup” (vpage 33 ~ 35). • With the AVR-4308, it is possible to use the DHCP and Auto IP • When using with a wireless LAN, prepare a broadband router with functions to make the network settings automatically.

  • Page 24: Multi Zone

    RS-232C connector the same time (vpage 71 ~ 75). • When using a component video cable to connect the AVR-4308 and input device, connect the ZONE2 This connector is used for an external controller. monitor output to the component video connectors. When using an S-Video cable or a video cable, please connect the cable to the video connectors.

  • Page 25: Connecting The Power Cord

    Connecting the Power Cord Wait until all connections have been completed before connecting the power cord. To household power outlet Power cord (AC 230 V, 50 Hz) (included) Connection to the AC outlet • This outlet supply power to external audio devices.

  • Page 26: Gui Menu Operations

    Some typical examples are described below. GUI Menu Operations Example: Browse Menu (Top Menu) Cursor Position Display With the AVR-4308, settings and operations for most functions can be n Icon performed by operating while looking at the GUI menus displayed on the monitor screen.

  • Page 27: Gui Menu Map

    GUI Menu Map Information Source Select (vpage 39 ~ 42) (vpage 47 , 48) n TUNER (FM/AM) n PHONO n CD, DVD, HDP , TV/CBL, n NET/USB n Status • Play • Input Mode SAT, VCR, DVR, V.AUX • Play •...

  • Page 28: Preparations

    Preparations SETUP Connect the included setup microphone to the jack on the main unit Auto Setup The auto setup screen appears automatically. • This procedure lets you measure the acoustic properties of your Sound speakers and listening room and make the optimum settings receptor automatically.

  • Page 29: Auto Setup

    Start STEP2: Measurements Auto Setup Start auto setup and output the test tone. The listening environment with respect to the listening position Optimize settings for speakers in use. Set as desired before starting the auto setup procedure. (“Speaker size check” , “Crossover Frequency check” and “Room EQ correction”) is measured automatically at positions 2 to 8.

  • Page 30: Error Messages

    Error Messages s Option If the auto setup procedure could not be completed due to speaker installation, the measuring environment, etc., an error Select settings for room EQ, mic, etc. message is displayed. If this happens, check the relevant items, be sure to take the necessary measures, then perform the auto setup procedure over again.

  • Page 31: Manual Setup

    Surround A d Distance Select surround speakers A use and size. Set distance from listening position to speakers. Before making the settings, measure the distance from [Selectable items] Large Small None Manual Setup the listening position to the different speakers. Surround B Meters / Feet Make detail settings for various parameters.

  • Page 32: Channel Level

    f Channel Level h Surround Speaker • When the GUI menu “Speaker Configuration” – “Surround Back” Adjust channel levels to obtain equal volume from all Select surround speakers to use for each surround mode. setting (vpage 29) is set to “1spkr” , the surround back speaker speakers.

  • Page 33: Hdmi Setup

    HDMI Setup d Progressive Mode j Auto Lip Sync Make settings for HDMI video/audio output. Select optimum progressive mode for video material. Automatic compensation for timing shift in audio and video output. [Selectable items] Auto Video1 Video2 F Menu tree F [Selectable items] Manual Setup HDMI Setup...

  • Page 34: Audio Setup

    Audio Setup s 2ch Direct/Stereo d Downmix Option Make settings for audio playback. Make speaker settings for 2-channel mode playback. Set dynamic range for downmix playback of Dolby Digital sources. Setting F Menu tree F [Selectable items] Manual Setup To change the settings, select “Custom” . Audio Setup [Selectable items] Basic...

  • Page 35: Manual

    Make settings for wired or wireless LAN. equalizer. Wired LAN Adjust CH Make settings for wired LAN. Select speaker adjustment method. Turn on the AVR-4308’s power. Each [Selectable items] If a Ethernet cable is connected Manual EQ The mode automatically switches to “Wired” .
  • Page 36 Wireless LAN settings Make settings for wireless LAN. Turn on the AVR-4308’s power. Connection If no Ethernet cable is connected The mode automatically switches to “Wireless” . To enter the IP address manually To acquire the IP address automatically using the DHCP function Display GUI menu “Manual Setup”...

  • Page 37: Other

    Rch Level s Other Zone Setup Adjust the right channel output level. Make setting for amp power save mode and computer Make settings for audio playback in a multi- language environment. zone system. –12dB ~ ~ +12dB [Variable range] F Menu tree F Power Saving Channel Manual Setup...

  • Page 38: Option Setup

    Option Setup s Volume Control f GUI Set the main zone volume setting. Make GUI related settings. Make various other settings. Volume Limit Screensaver F Menu tree F Manual Setup Make a setting for maximum volume. Make screensaver settings. Use the screensaver to prevent burn-in on the monitor screen. Option Setup [Selectable items] –20dB...

  • Page 39: Quick Select Name

    Text h Trigger Out 1 k Digital Out Text information display. Select the conditions to turn on the trigger out 1 with Set usage of OPT3 OUT. respect to the zone, input source, surround mode, HDMI [Selectable items] monitor, etc. [Selectable items] ZONE4 Select Rec Select For details about the trigger out function, see page 22.

  • Page 40: A1 Dimmer

    NOTE Furthermore, updating the fi rmware may reset the backup data for Only use this function if so instructed by a DENON serviceperson or the parameters, etc., set for the AVR-4308. installer. ⋅ When updating the fi rmware, we recommend using wired...

  • Page 41: Source Select

    Play To operate the AVR-4308 using the main remote control unit, set the The playback screen is displayed. remote control unit to the AMP mode (vpage 62 “Remote Control Source Select Unit Operations”). [Input source] TUNER NET/USB iPod Use this procedure to select the input source and make the settings...

  • Page 42: Preset Name

    Operating from the main unit or main remote f Preset Name j Other control unit Assign name to a preset memory. Make various other settings. Press the INPUT MODE button on the main unit or the INPUT button on Names containing up to 8 characters can be input. Video Select the main remote control unit.

  • Page 43: Playback Mode (Ipod)

    USB) signals input from the digital input connectors cannot be output This can be selected for input sources for which “Assign” is assigned • When the AVR-4308 and monitor are connected with an HDMI cable, from the ZONE2 and ZONE3 audio output connectors and the analog at the “iPod dock”...

  • Page 44: A0 Playback Mode

    VCR (iPod) connector. [Selectable items] Favorites All Music • Even if “iPod dock” is set to “Assign” , if the AVR-4308 is not connected to a Control dock for iPod, the input source can be used as the normal input source.

  • Page 45: Surround Modes

    SIMU button. The mode switches each DTS NEO:6 : The signals are decoded in DTS NEO:6 for and the AVR-4308’s “AFDM” setting is set to “ON” . time the button is pressed. playback. z2 : This is displayed when the input signal is “DTS-ES Discrete •...

  • Page 46: Stereo Playback

    Stereo Playback Playback in the PURE DIRECT Mode This is the mode that recreates the original sound most [Selectable items] faithfully, providing extremely high quality sound. Parameter STEREO PURE DIRECT Press the button. This is the mode for playing in stereo. The tone can be adjusted. Sound is output from the front left and right speakers and subwoofer.
  • Page 47 Cinema EQ Dimension AFDM Soften treble range movie soundtracks better Shift sound image center to front or rear, to adjust playback balance. Auto-select surround mode by source. understanding. This function only works for software containing a special identification 0 ~ 3 ~ 6 [Variable range] signal.

  • Page 48: Tone

    Subwoofer Att. d Room EQ f RESTORER Attenuate subwoofer level when using EXT. IN mode. Select room equalizer for current environment. This function restores compressed audio signals to how they were before compression and corrects the sense of [Selectable items] [Selectable items] volume of the bass to obtain richer playback sound.

  • Page 49: Night Mode

    g Night Mode Picture Adjust Optimized setting for late-night listening. Adjust the picture quality. Information [Selectable items] Middle High F Menu tree F Parameter Operating from the main remote control unit Picture Adjust Status Press the NGT button. a Contrast The “...

  • Page 50: Audio Input Signal

    Audio Input Signal HDMI Information Quick Select Shows information about audio input Shows information about HDMI input/output Shows information about quick select signals. signals and monitor. settings. F Menu tree F F Menu tree F F Menu tree F Information Information Information Audio Input Signal...

  • Page 51: Playback

    The power indicator fl ashes green and the power turns on. AMP] Playing Video and Audio Equipment To operate the AVR-4308 using the main remote control unit, set the remote control unit to the AMP mode (vpage 62 “Remote Control Basic Operation Unit Operations”).

  • Page 52: Listening To Fm/Am Broadcasts

    Listening to FM/AM Broadcasts Presetting Radio Stations <SOURCE SELECT> (Preset Memory) Basic Operation Your favorite broadcast stations can be preset so that you can tune them in easily. Up to 56 stations can be preset. <SOURCE SELECT> [TUNER] Either turn or press Tune in the broadcast station you want to preset.

  • Page 53: Listening To Preset Stations

    RDS (Radio Data System) RDS Search Listening to Preset Stations Note that the RDS function only works when receiving Use this function to automatically tune to FM stations that Operation on the Main Unit RDS compatible stations. provide the RDS service. RDS (works only on the FM band) is a broadcasting service <TUNING PRESET>...

  • Page 54: Pty Search

    PTY Search TP Search <SOURCE SELECT> Use this function to find RDS stations broadcasting a Use this function to find RDS stations broadcasting traffic designated program type (PTY). programs (TP stations). For a description of each program type, refer to “Program <SOURCE SELECT>...

  • Page 55: Rt (Radio Text)

    The default setting is “Mode3” . (AMP mode) to select “TUNER”. menus. • Press <ON/STANDBY> and set the AVR-4308’s power to the standby mode before disconnecting the iPod. Also switch the input source iPod is a trademark of Apple Computer, Inc., registered in To operate using the main remote control unit, set the to one to which the GUI menu “iPod dock”...

  • Page 56: Listening To Music

    <STATUS> during playback. [ iPod] • On the AVR-4308, folder and fi le names can be displayed as titles. Any During playback, either press u (to cue to the previous track) or i (to cue to the next track), or press [8] or [9].

  • Page 57: Playing Network Audio Or Usb Memory Devices

    (JPEG) files stored on a computer or USB memory device. MP3 (MPEG-1 When still picture (JPEG) files are played on the AVR-4308, they are Audio Layer-3) n About the Internet radio function played in the direction in which they are stored in the folder, so store –...

  • Page 58: Basic Operation

    Press again to resume playback. Make the necessary preparations. To stop q Check the network environment, then turn on the AVR-4308’s During the play or pause mode, press and hold ENTER. power. (vpage 21 “Network Audio”) Searching up or down pages w If settings are required, make the network settings.

  • Page 59: Listening To Internet Radio

    The AVR-4308 automatically connects to the Internet and • On the AVR-4308, folder and file names can be displayed as titles. Any playback begins. characters that cannot be displayed are replaced with “ . (period)” .

  • Page 60: Playing Files Stored On A Computer

    Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol) standards can be to select the host name of the computer on played on the AVR-4308. which the music fi le you want to play is located, then ENTER press or p.

  • Page 61: Operating The Avr-4308 Using A Browser (Web Control)

    AC adapter, we recommend using the AC adapter. • It is not possible to connect and use a computer via the AVR-4308’s USB port using a USB cable.

  • Page 62: Recording On An External Device (Rec Out Mode)

    Press COAXIAL) are PCM (2-channel) signals. “ZONE2 SOURCE” is shown on the display. • Digital audio signals input to the DENON LINK or HDMI connectors are not output to the REC OUT connectors, so connect using the ZONE2 SOURCE ZONE2 TUNER ····...

  • Page 63: Convenient Functions

    Convenient Functions Quick Select Function Last Function Memory With this function, the currently playing input source, input This stores the settings as they were directly before the mode, surround mode, room EQ settings and volume can standby mode was set. Channel Level be stored in the memory.

  • Page 64: Remote Control Unit Operations

    ) mode is not used are shown in the Preset Code Table (v End of this remote ID is set, the AVR-4308 can be used independently on the AVR-4308, so use the learn function to store the signals manual). (vpage 65).
  • Page 65 Functions of Buttons by Component EL Display EL Display MODE SELECTOR iPod [MODE Device Mode [1], SELECTOR] [8 9], Device operated DVD Recorder CD Recorder TAPE iPod (Default setting) (Default setting) [6 7], [3], Playback Playback Playback Playback Playback Playback Playback/Pause [2], Auto search...
  • Page 66 EL Display EL Display MODE SELECTOR Satellite Receiver / Cable TV [MODE Device Mode [1], SELECTOR] Device operated TV (HITACHI) TV (SONY) [8 9], [6 7], [3], [2], Punch through Punch through Punch through Punch through [SOURCE ON], [SOURCE OFF] SOURCE ON Power on Power on...

  • Page 67: Setting The Remote

    Learning Function [RC SETUP] [RC SETUP] If your AV devices are of a brand other than DENON or if Press and hold in for at least 3 seconds. they cannot be operated with the preset memory function, The signal transmission indicator flashes twice and the setting is completed.

  • Page 68: System Call Function

    Signal Registering Punch Through Function transmission [MODE SELECTOR] Press for the device you want to indicator CD, DVD or VCR mode buttons can be stored at unused TV register. or SAT/CBL mode buttons. AMP] For example, when DVD mode buttons are assigned to [RC SETUP] Press and hold in for at least 3 seconds.

  • Page 69: Setting The Time The Backlight Stays Lit

    System call function Setting the Time the Backlight Stays Lit Resetting the Main Remote Control Unit [RC SETUP] Press and hold in for at least 3 seconds. [RC SETUP] Press and hold in for at least 3 seconds. Learning Function The signal transmission indicator flashes twice.

  • Page 70: Sub Remote Control Unit Operations

    ZONE OFF Power turned off ( b 1) Power turned off ( b 1) zone, so you can use it to control the AVR-4308 from other ZONE ON Power turned on ( b 1) Power turned on ( b 1) rooms.
  • Page 71 Device operated NET / USB iPod Zone selection ZONE SELECT Zone operation mode selection Zone operation mode selection ZONE OFF Power turned off ( b 1) Power turned off ( b 1) ZONE ON Power turned on ( b 1) Power turned on ( b 1) SOURCE SELECT Input source selection ( b 2)

  • Page 72: Switching Zones

    Setting the Zone for Which the Sub Setting the Remote ID Remote Control Unit is Used (ZONE When using multiple DENON AV receivers in the same [ZONE SELECT] Multi-zone indicator room, make this setting so that no AV receiver other than...

  • Page 73: Amp Assign / Multi-Zone Connections And Operations

    BACK AMP ASSIGN CENTER The amp assign function lets you assign the amplifiers for the different channels built into the AVR-4308 to Amp Assign mode the speaker outputs for the different zones. Select the desired playback environment from among “Setting 1” to “Setting 7” , then set the corresponding 7 .1CH...
  • Page 74 Setting 2: Setting 3: Setting 4: With this setting it is possible to switch between the following two playback modes. 7.1-channel playback Making bi-amp connections for Making bi-wiring connections Switching between bi-amp and bi-wiring playback using speakers the FL and FR channels in the for the FL and FR channels in the exclusively for 2-channel playback main zone and conducting 5.1-...
  • Page 75 Setting 5: Setting 6: With this setting it is possible to switch between the following two playback modes. With this setting it is possible to switch between the following two playback modes. 7.1-channel playback 7.1-channel playback Multi-zone playback Multi-zone playback •...

  • Page 76: Multi-Zone Settings And Operations With Zone Pre-Out Output

    Power amplifier AV amplifier DVD player ZONE2 video AVR-4308 • When the ZONE2 ON/OFF button is set to “ON” and the ZONE3 ON/OFF button is set to “OFF” , the main zone output is set to 5.1-channel playback. • When the ZONE3 ON/OFF button is set to “ON” , the main zone is set to 3.1-channel playback.

  • Page 77: Multi-Zone Operations

    – – – –70dB ~ –40dB ~ +18dB (Main remote control unit) (2-channel) format. • Digital audio signals input from the DENON LINK or HDMI connectors [ZONE SELECT] cannot be played in multi-zone. • The volume can be adjusted when GUI menu “Manual Setup”...

  • Page 78: Other Information

    Number of surround back speakers w Setting for primarily watching movies using diffusion type speakers for the surround speakers We recommend using 2 speakers. For the greatest sense of surround sound envelopment, diffuse Other Information When using dipolar speakers in particular, be sure to use 2 speakers. radiation speakers such as bipolar types, or dipolar types, provide a wider dispersion than is possible to obtain from a direct radiating Placement of the surround left and right channels...
  • Page 79 96 kHz/7 .1-channels. The lossless audio coding technology g matrix decoding technology. The AVR-4308 is equipped with a digital signal processing circuit that faithfully reproduces the sound of the studio master. It is fully Audio signals recorded in 2-channels are decoded to achieve a natural...

  • Page 80: Audyssey Multeq Xt

    DENON LINK is a unique digital, balanced transfer type interface For a detailed description, see page 26. developed by DENON. It offers high speed, high quality transfer of digital audio data with low signal loss. It can be used together with DENON DVD players equipped with a special DENON LINK connector using a single cable to enable playback with high sound quality.

  • Page 81: Surround Modes And Parameters

    HDMI Surround Modes and Parameters (High-Definition Multimedia Interface) Signals and adjustability in the different modes HDMI is a digital interface standard for next generation TVs based Channel output Parameter (default values are shown in parentheses) Surround Mode on DVI (Digital Visual Interface) standards and optimized for use in Surround Surround D.
  • Page 82 Signals and adjustability in the different modes Parameter (default values are shown in parentheses) Surround Mode NEO:6 MUSIC PRO LOGIC g/gx MUSIC mode only EXT. IN only mode only Mode Room Size Effect Level Delay Time Subwoofer Tone Night Mode Room EQ RESTORER Panorama...
  • Page 83 Differences in Surround Mode Names Depending on the Input Signals Input signals Button DOLBY DIGITAL DVD-AUDIO Super Audio CD (Windows LINEAR DOLBY Note Media Audio) DTS ES DTS ES DOLBY DOLBY DOLBY DOLBY DVD- DVD- Surround mode ANALOG PCM / DIGITAL EX / MP3 / DSCRT...
  • Page 84 Button Input signals DOLBY DIGITAL DVD-AUDIO Super Audio CD (Windows LINEAR DOLBY DVD- Note Media Audio) DTS ES DTS ES DOLBY DOLBY DOLBY DOLBY DVD- Surround mode ANALOG PCM / DIGITAL EX Audio / MP3 / DSCRT MTRX DIGITAL EX DIGITAL DIGITAL DIGITAL...

  • Page 85: Windows Media Drm

    IEEE 802.11b This is key information used for encrypting data when conducting data transfer. On the AVR-4308, the same WEP key is used for data This is one wireless LAN standard set by the 802 working group encryption and decryption, so the same WEP key must be set on...
  • Page 86 WPA (Wi-Fi Protected Access) This is a security standard established by the Wi-Fi Alliance. In addition to the conventional SSID (network name) and WEP key (network key), it also uses a user identification function and encrypting protocol for stronger security. WPA2 (Wi-Fi Protected Access 2) This is a new version of the WPA established by the Wi-Fi Alliance, compatible with more secure AES encryption.
  • Page 87 Relationship Between Video Signals and Monitor Output n Main zone Input signal Monitor output Monitor output (when GUI menu displayed) Video Convert HDMI COMPONENT S-VIDEO VIDEO HDMI COMPONENT S-VIDEO VIDEO HDMI COMPONENT S-VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO b VIDEO b VIDEO b S-VIDEO...
  • Page 88 SIGNAL IN MONITOR OUT MONITOR OUT (Normally) (when GUI menu displayed) Video Convert HDMI COMPONENT S-VIDEO VIDEO HDMI COMPONENT S-VIDEO VIDEO HDMI COMPONENT S-VIDEO VIDEO S (VIDEO) S (S-VIDEO) S (S-VIDEO) S (VIDEO) S (COMPONENT) S (COMPONENT) S (VIDEO) S (COMPONENT) S (S-VIDEO) S (COMPONENT) S (S-VIDEO)
  • Page 89 Relationship Between Amp Assign Setting and Speaker Output STEREO or DIRECT (2ch) Mode Status Speaker terminal Setting SURROUND B/ Surround mode SURROUND A SURROUND BACK ASSIGN-2 ASSIGN STEREO/DIRECT – – FL/FR FL/FR 2ch Bi-Wiring Other SLA/SRA SBL/SBR – – STEREO/DIRECT –...

  • Page 90: Troubleshooting

    • Turn off the power and contact a – Symptom Cause Countermeasure Page DENON service center. Power does not • Connection of the power cord is • Check that the power plugs are turn on, or turns faulty. securely inserted into the AVR-...
  • Page 91 DTS sound playback. DVDs cannot be • This is not a malfunction. Most – • The AVR-4308’s “Decode Mode” • Set to the “Auto” or “DTS” copied on a VCR. movie software includes copy – setting is set to “PCM” .
  • Page 92 USB cable. be used for connection to a port do not match. Select” . computer. • A USB memory device that • This is not a malfunction. DENON – Server is not • The computer’s router’s • Check the computer’s or router’s –...

  • Page 93: Specifications

    – Total harmonic distortion — 0.008 % (1 kHz, at 0 dB) outlet on a circuit different from S/N ratio — 102 dB that to which the AVR-4308 is Dynamic range — 100 dB connected. Digital input: Format — Digital audio interface •...
  • Page 94 Video section General • Standard video connectors Power supply: AC 230 V, 50 Hz 1 Vp-p, 75 Ω/ohms 580 W Input / output level and impedance: Power consumption: Frequency response: 5 Hz ~ 10 MHz — +0, –3 dB (when video convert set to “OFF”) 0.3 W (Standby) •...

  • Page 95: List Of Preset Codes

    40157 Cambridge GoldStar 00144 Supercable 00276 40157 40157 Soundworks Hitachi 00003, 00008 Taihan 00778 Denon Digital Tuner Carver 40157, 40179 Onkyo 40868, 40101 Hongtian Jiangsu 01462 01445 40000, 40032, 40037, 40087, 40420 Optimus Denon (NET) 62865, 62837, 62838, 62839 Hwalin...
  • Page 96 Viewsonic 01272, 01329 Beko 00455 DigiSat 01232 21313 TaeKwang 20439 Vizio 01126 Bell ExpressVu 00775 Digisky 01457 Denon 40766, 42868 Tandberg 20109 Voodoo 01272 Big Sat 01457 DigitAll World 01227 40072 20280, 20283, 20289, 20308, Black Diamond 01284 Xbox 01805...
  • Page 97 01142, 00749, 01749, 00775, Eurocrypt 00455 Hauppauge 01672 Kreiselmeyer 00173 Multibroadcast 00642, 00879 00724, 00819, 01076, 00722, 00642, 00879, 01333, 01433, EuroLine 01251 01214, 01801 Kross 01695 Multichoice 00099, 00710, 00455, 00818, 01559, 01560 Philips 00200, 00847, 00853, 00173, Europa 00863 01159 L&S Electronic...
  • Page 98 Satstation 01083 Tarbs 01225 Ventana 00200 Dishpro 01505, 00775 Skyplus 01412 Schaub Lorenz 01214 Tatung 00455 Vestel 01251 01075 Sony 00639, 01640 Schneider 00710, 01206, 01251 TBoston 01659 VH Sat 00299 Dream Multimedia 01237 Star Choice 00869 00394, 00504, 00863, 01075, Teac 01225, 01227, 01251, 01322 Viasat...
  • Page 99 Denko 10264 10362, 10371, 10433, 10648, 10037, 10073, 10109, 10208, 10037, 10036, 10009 Baird CMS Hightec 10217 11037, 11982 10217, 10343, 11196 Denon 10145, 10511 Caihong 10009, 10817 10047, 10054, 10017, 10060, Amtron 10000, 10180 Bang & Olufsen 10565 Colortyme...
  • Page 100 10047, 10054, 10154, 10000, 10000, 11909, 11900, 11163, Elcit 10163 Hewlett Packard 11494, 11502 Imperial 10037, 10074, 10370, 10418 Fisher 10036, 10208, 10217, 10361, 11037, 10880, 10808, 10714, 10001, 10009, 10264, 10374, Electroband 10000 Hifivox 10109 10370 10668, 10661, 10634, 10625, Imperial Crown 10661 10587, 10560, 10556, 10499,...
  • Page 101 10054, 10093, 10463, 10053, 10047, 11454, 10054, 10154, Kyoshu 10418 Minato 10037, 10556 Nishi 10030 10030, 10070, 10036, 10218, 10000, 10250, 10051, 10180, Kyoto 10163, 10217 Minerva 10070, 10108, 10195, 10487 Nobliko 10070 10371, 10418, 10508, 10606, 10060, 10030, 10171, 10092, Magnavox 10650, 10653, 10683, 10731, 10706, 11944, 11904, 11755,...
  • Page 102 10054, 10000, 10156, 10250, 10865, 10876, 10877, 11207, Profex 10009, 10163, 10361 Saville 10060 SilverCrest 11037 Relisys 10051, 10236, 10030, 11947, 11298 Profi 10009 10037, 10556 Simpson 10178, 10030, 10011 11946, 11941, 11480, 11310, 10250, 10093, 10145, 10171, Remotec 10060, 10092, 10009, 10037, Panasonic 11291, 11271, 10853, 10650, Profilo...
  • Page 103 10054, 10250, 10051, 10226, Strato 10009, 10037, 10264 Tiane 10093, 10817 Univox 10037, 10163 World 10451, 10236, 10463, 10180 Technics 10556, 10650 10865, 10877, 10880, 11217, Strong 11149, 11163 Tiny 11269 10864, 10885, 11755, 11756 World-of-Vision TechniSat 10556, 11267 11298 Studio Experience 10843 10236, 10180, 10178...
  • Page 104 11944 Deitron 20278 GoldStar 10037 Blue Sky 20352, 20480, 20642, 20742, 11982 Symphonic 11944 Dell 21972 21137 Goodmans 10374, 11909 Denon 20081, 20042 Jensen 11933 Toshiba 11945 20046 Grundig 10037, 10195, 10556 Derwent 20041 11962 Brandt 20041, 20320 Harley Davidson...
  • Page 105 20060, 20035, 20048, 20240, International 20037, 20278, 20642 Mark 20000, 20278 Noblex 20240 Prosco 20278 20000, 20226, 20320, 20807, 20037, 20000, 20209, 20278, 20048, 20081, 20240, 20042, Marta 20037 Prosonic 20209, 20278 21035, 21060 Intervision 20348 Nokia 20104, 20041, 20278, 20046, Mastec 20642 Protec...
  • Page 106 20000, 20104, 20041, 20106, 20035, 20081, 20000, 20043, Triad 20278 Go Video 20614 Ferguson 20000, 20278 Schaub Lorenz Sylvania 20315, 20348 21593, 21781 Trix 20037 Hewlett Packard 21972 Fidelity 20000 20037, 20081, 20240, 20000, Symphonic 20240, 20000, 20002, 21593 Schneider 20042, 20278, 20348, 20352, Uher 20240...
  • Page 107 31367 31530 Inno Hit 30713 30713, 30723, 30730, 30831, 30672, 30539, 30717, 30695, Bush 30490, 30634, 31634, Fisher 30670 Denon 30833, 30884, 31051, 31140, Insignia 31268 [32134] Alba 30699, 30713, 30730, 30783, 31483, 31695, 31832 Funai 30675, 30695, 31268 30884, 31140, 31530, 31695...
  • Page 108 30503, 30539, 30646, 30675, 30672, 30651, 31005, 31036, Jaton 30665 Nikkai 31923 Proceed 30672 Scott Magnavox 30713, 30821, 30885, 31140, 31233, 31423 30672, 30651, 30686, 30833, 30702 Nintaus 31051, 31202 31268 Proline Seeltech 31224, 31451 31004, 31483 30730 Niro 32024 Magnex 30723 30798, 30665, 30713, 30763,...
  • Page 109 Sylvania 30630, 30675, 30821, 31268 Vestel 30713, 30884, 31530 Cytron 31347 Sampo 31347 Insignia 31268 Symphonic 30675, 30821, 31268 Victor 31597 Denon 30490 Samsung 30490, 31635 31367 Synn 30768 Vieta 30705 Denver 31056 ScanMagic 31730 31271 Tandberg 30713, 31695 Viewmaster...
  • Page 110 DVD preset codes 32134 30490 Model No. DVD-550 DVD-2800g DVD-800 DVD-700 DVD-2900 DVD-1600 DVD-900 DVD-2910 DVD-2000 DVD-1000 DVD-2930 DVD-2500 DVD-1400 DVD-3800 DVD-3000 DVD-1500 DVD-3910 DVD-3300 DVD-1710 DVD-3930 DVD-1910 DVD-A11 DVD-1930 DVD-A1 DVD-2200 DVD-A1XV DVD-2800 : Preset codes set upon shipment from the factory. PRESET CODE PRESET CODE...
  • Page 112 Denon Brand Company, D&M Holdings Inc. Printed in Japan 00D 511 4612 004...
