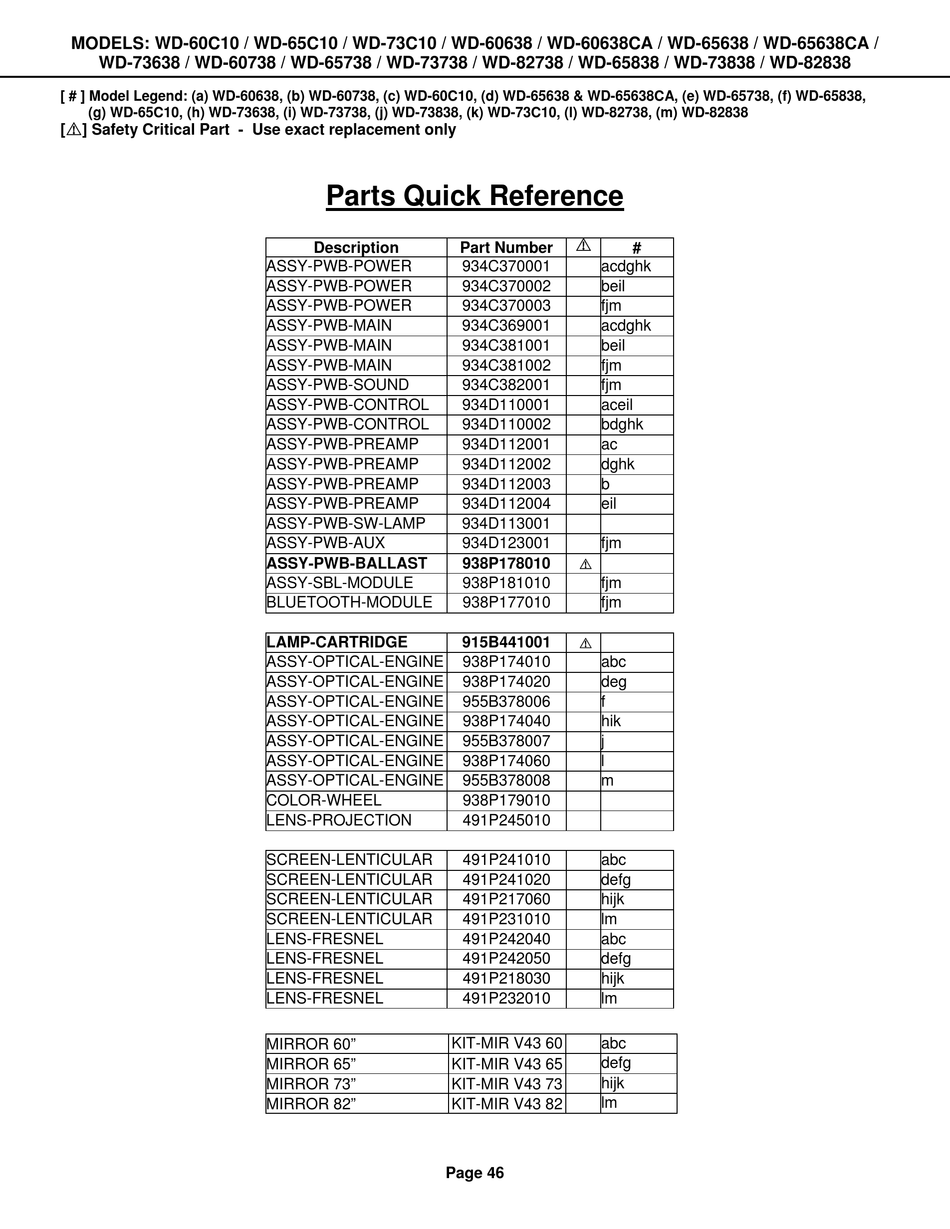

Parts Quick Reference - Mitsubishi Electric WD-60C10 Service Manual

MODELS: WD-60C10 / WD-65C10 / WD-73C10 / WD-60638 / WD-60638CA / WD-65638 / WD-65638CA /
WD-73638 / WD-60738 / WD-65738 / WD-73738 / WD-82738 / WD-65838 / WD-73838 / WD-82838
[ # ] Model Legend: (a) WD-60638, (b) WD-60738, (c) WD-60C10, (d) WD-65638 & WD-65638CA, (e) WD-65738, (f) WD-65838,
(g) WD-65C10, (h) WD-73638, (i) WD-73738, (j) WD-73838, (k) WD-73C10, (l) WD-82738, (m) WD-82838
[] Safety Critical Part - Use exact replacement only

Parts Quick Reference

Description
ASSY-PWB-POWER
ASSY-PWB-POWER
ASSY-PWB-POWER
ASSY-PWB-MAIN
ASSY-PWB-MAIN
ASSY-PWB-MAIN
ASSY-PWB-SOUND
ASSY-PWB-CONTROL
ASSY-PWB-CONTROL
ASSY-PWB-PREAMP
ASSY-PWB-PREAMP
ASSY-PWB-PREAMP
ASSY-PWB-PREAMP
ASSY-PWB-SW-LAMP
ASSY-PWB-AUX
ASSY-PWB-BALLAST
ASSY-SBL-MODULE
BLUETOOTH-MODULE
LAMP-CARTRIDGE
ASSY-OPTICAL-ENGINE
ASSY-OPTICAL-ENGINE
ASSY-OPTICAL-ENGINE
ASSY-OPTICAL-ENGINE
ASSY-OPTICAL-ENGINE
ASSY-OPTICAL-ENGINE
ASSY-OPTICAL-ENGINE
COLOR-WHEEL
LENS-PROJECTION
SCREEN-LENTICULAR
SCREEN-LENTICULAR
SCREEN-LENTICULAR
SCREEN-LENTICULAR
LENS-FRESNEL
LENS-FRESNEL
LENS-FRESNEL
LENS-FRESNEL
MIRROR 60"
MIRROR 60"
MIRROR 65"
MIRROR 65"
MIRROR 73"
MIRROR 73"
MIRROR 82"
MIRROR 82"

Part Number
934C370001 acdghk
934C370002 beil
934C370003 fjm
934C369001 acdghk
934C381001 beil
934C381002 fjm
934C382001 fjm
934D110001 aceil
934D110002 bdghk
934D112001 ac
934D112002 dghk
934D112003 b
934D112004 eil
934D113001
934D123001 fjm
938P178010

938P181010 fjm
938P177010 fjm
915B441001

938P174010 abc
938P174020 deg
955B378006 f
938P174040 hik
955B378007 j
938P174060 l
955B378008 m
938P179010
491P245010
491P241010 abc
491P241020 defg
491P217060 hijk
491P231010 lm
491P242040 abc
491P242050 defg
491P218030 hijk
491P232010 lm
KIT-MIR V43 60 abc
KIT-MIR V43 60 abc
See Kits Page defg
defg
KIT-MIR V43 65
KIT-MIR V43 73 hijk
hijk
KIT-MIR V43 73
KIT-MIR V43 82 lm
lm
KIT-MIR V43 82
Page 46
#
