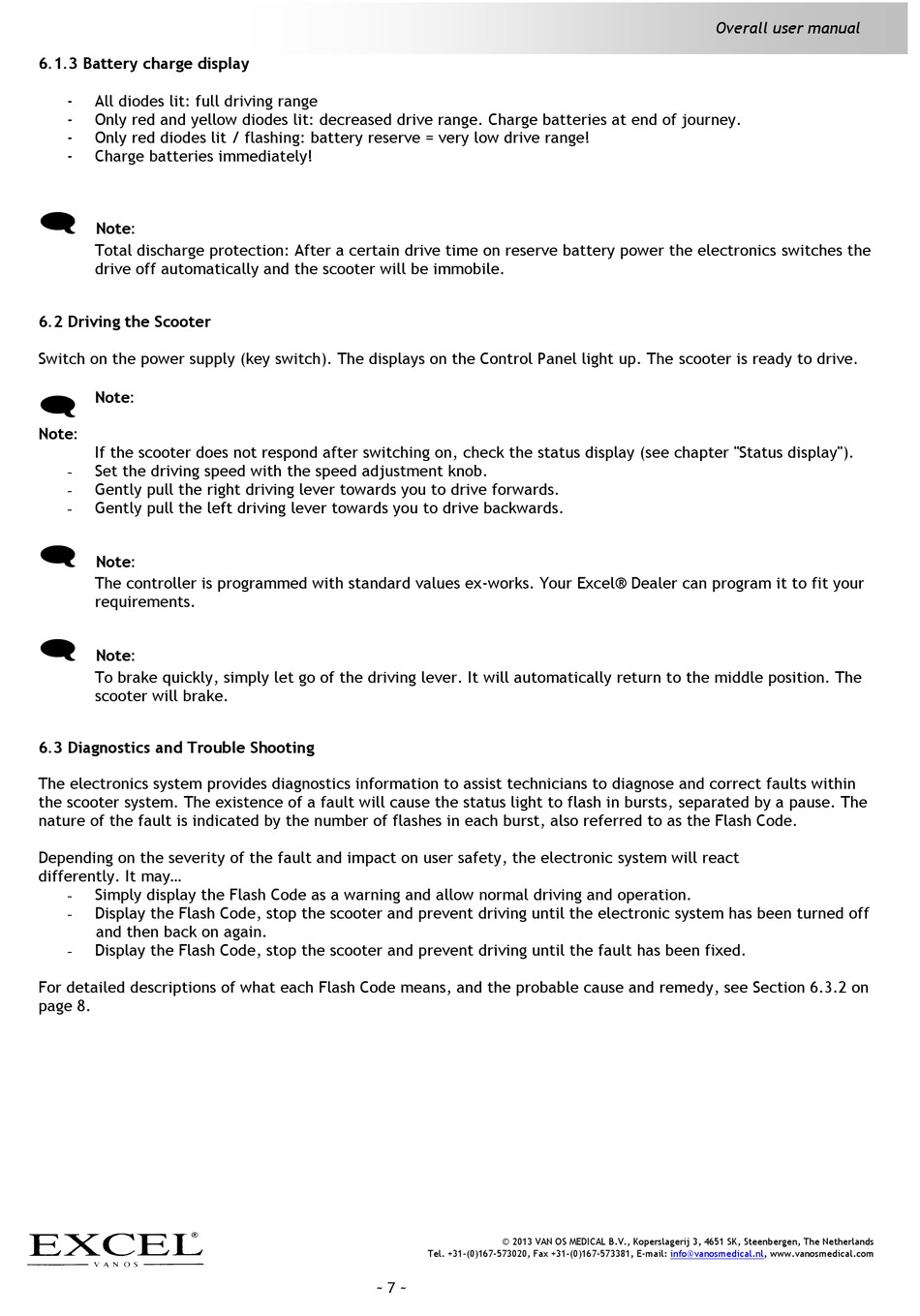

Driving The Scooter; Diagnostics And Trouble Shooting - Excel Entice User Manual

6.1.3 Battery charge display
- All diodes lit: full driving range
- Only red and yellow diodes lit: decreased drive range. Charge batteries at end of journey.
- Only red diodes lit / flashing: battery reserve = very low drive range!
- Charge batteries immediately!

Note:
Total discharge protection: After a certain drive time on reserve battery power the electronics switches the
drive off automatically and the scooter will be immobile.

6.2 Driving the Scooter

Switch on the power supply (key switch). The displays on the Control Panel light up. The scooter is ready to drive.
 Note:
Note:
If the scooter does not respond after switching on, check the status display (see chapter "Status display").
Set the driving speed with the speed adjustment knob.
-
Gently pull the right driving lever towards you to drive forwards.
-
Gently pull the left driving lever towards you to drive backwards.
-

Note:
The controller is programmed with standard values ex-works. Your Excel® Dealer can program it to fit your
requirements.

Note:
To brake quickly, simply let go of the driving lever. It will automatically return to the middle position. The
scooter will brake.

6.3 Diagnostics and Trouble Shooting

The electronics system provides diagnostics information to assist technicians to diagnose and correct faults within
the scooter system. The existence of a fault will cause the status light to flash in bursts, separated by a pause. The
nature of the fault is indicated by the number of flashes in each burst, also referred to as the Flash Code.
Depending on the severity of the fault and impact on user safety, the electronic system will react
differently. It may...
Simply display the Flash Code as a warning and allow normal driving and operation.
-
Display the Flash Code, stop the scooter and prevent driving until the electronic system has been turned off
-
and then back on again.
Display the Flash Code, stop the scooter and prevent driving until the fault has been fixed.
-
For detailed descriptions of what each Flash Code means, and the probable cause and remedy, see Section 6.3.2 on
page 8.
