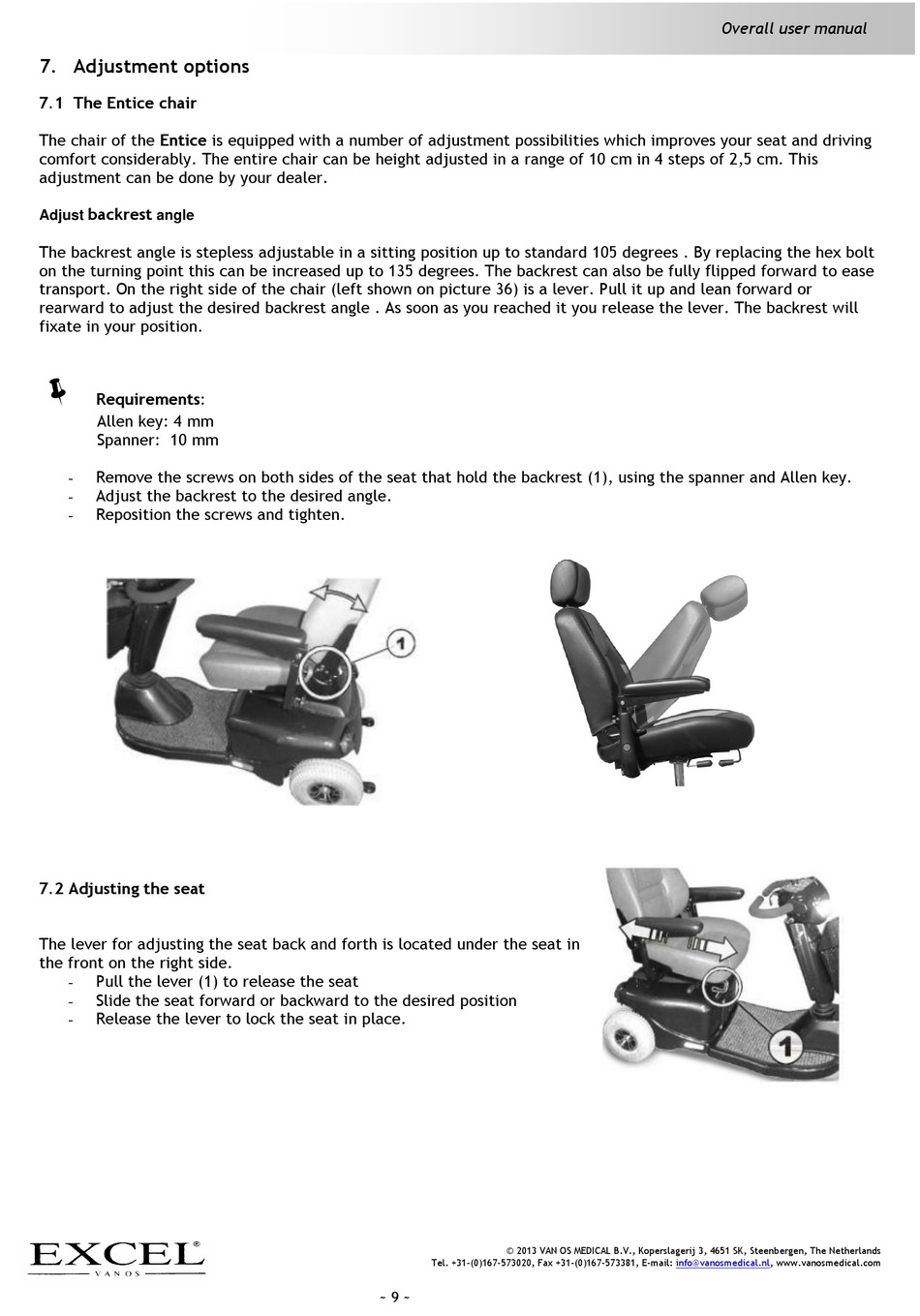

7. Adjustment options

7.1 The Entice chair

The chair of the Entice is equipped with a number of adjustment possibilities which improves your seat and driving
comfort considerably. The entire chair can be height adjusted in a range of 10 cm in 4 steps of 2,5 cm. This
adjustment can be done by your dealer.
backrest
Adjust angle
The backrest angle is stepless adjustable in a sitting position up to standard 105 degrees . By replacing the hex bolt
on the turning point this can be increased up to 135 degrees. The backrest can also be fully flipped forward to ease
transport. On the right side of the chair (left shown on picture 36) is a lever. Pull it up and lean forward or
rearward to adjust the desired backrest angle . As soon as you reached it you release the lever. The backrest will
fixate in your position.

Requirements:
Allen key: 4 mm
Spanner: 10 mm
Remove the screws on both sides of the seat that hold the backrest (1), using the spanner and Allen key.
-
Adjust the backrest to the desired angle.
-
Reposition the screws and tighten.
-

7.2 Adjusting the seat

The lever for adjusting the seat back and forth is located under the seat in
the front on the right side.
Pull the lever (1) to release the seat
-
Slide the seat forward or backward to the desired position
-
Release the lever to lock the seat in place.
-
