Summary of Contents for Bartscher Regina Plus 40T
- Page 1 Regina Plus 90T Regina Plus 40T A190146 A190196 V1/0814...
- Page 2 A190146 Ø 220 A190196 Ø 270...
- Page 3 ① ② ③ ⑨ ④ ⑧ ⑦ ⑤ ⑥ ⑩ ⑬ ⑪ ⑫...
-
Page 4: Table Of Contents
6.1 Safety advice ....................... 31 6.2 Cleaning and descaling ..................32 6.3 Safety instructions for maintenance ..............35 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany... -
Page 5: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 6: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 7: Safety
2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 8: Intended Use
o Children should not play with the device. o Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision. o Children under the age of 8 years old must be kept away from the device and its power cord. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data

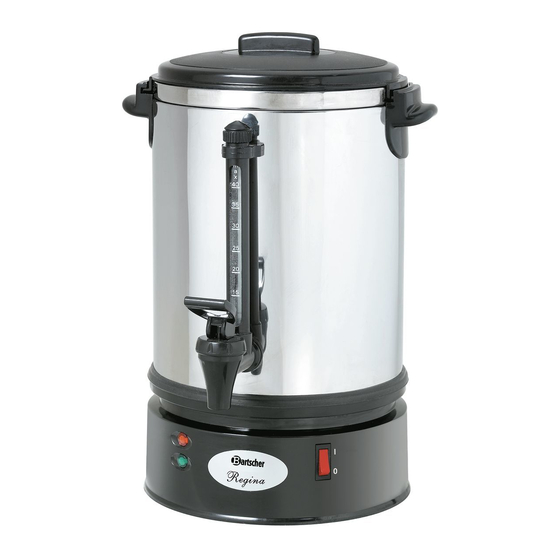

4. Technical data 4.1 Technical specification Name Coffee maker with round filter Regina Plus 40T Regina Plus 90T Model: A190146 A190196 Code-No: Material: stainless steel housing; plastic base and lid Capacity: 6.8 litres 15.0 litres Brewing time for approx. 45 minutes approx. -
Page 11: Overview Of Parts
4.2 Overview of parts NOTE! On the folded page of the instruction manual is listed the most important components of the coffee maker. This page should always be opened when reading the instruction manual. ① Cover handle ② Cover ③ Water container handle ④... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Safety instructions • Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable. •... -
Page 13: Operation
WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! Take note of the security advice! The device must only be connected to a properly installed single socket with protective contact. - Page 14 Only round paper filters should be used with the coffee maker with round filter We recommend using BARTSCHER round paper filters numbers A190190 or A190009250 for models Regina Plus 40T (A190146) and round paper filters numbers A190011 or A190011250 for models Regina Plus 90T (A190196).
- Page 15 • Start the coffee maker by switching the ON/OFF switch to position „I“. During the boiling process the red operation control light in the switch will come on. • The green heat retention light will come on when the boiling process has completed. As soon as the brewing process is finished, the temperature is reduced automatically and the coffee is kept at temperature proper for serving until the power plug is disconnected from power supply or the ON/OFF switch is set to „O“.
-
Page 16: Cleaning And Maintenance
Instructions and advices NOTE! The best results can be achieved when coffee is prepared for at least 20 or 30 cups at once. Remove the filter basket and coffee grounds immediately after the brewing process. Thanks to this the coffee's flavor is maintained. WARNING! Danger of burns! Elements of the filter basket and grounds are very hot. -
Page 17: Cleaning And Descaling
6.2 Cleaning and descaling Daily cleaning o Clean the device after each use. o After use, wash the device with hot water and a mild, commercially available detergent for coffee makers. Clean also the filter basket, riser pipe and cover. Please observe the instructions of the manufacturer. - Page 18 CAUTION! Check if the glass pipe is correctly positioned in the seal. Tighten the fitting gently, otherwise the glass pipe may break. o Tighten the screw (d) of the level indicator. Cleaning the heating hole o The heating hole must be thoroughly cleaned every week, especially if used daily. o Included in the coffee maker packaging is a scale deposit scraper for cleaning the heating hole at the bottom of the coffee maker.
- Page 19 Descaling ATTENTION! In order to extend the use of the device and to ensure good quality coffee, the coffee maker should be descaled regularly! Claims will not be accepted if the coffee maker will not be descaled regularly, as described in the instruction manual. Such claims are not covered under the warranty! o The device is equipped with red descaling indicator.
-
Page 20: Safety Instructions For Maintenance
6.3 Safety instructions for maintenance o Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it. o In case of damage or malfunction, please contact your stockist or our customer service centre. -
Page 21: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
