PREPARATION (Continued)

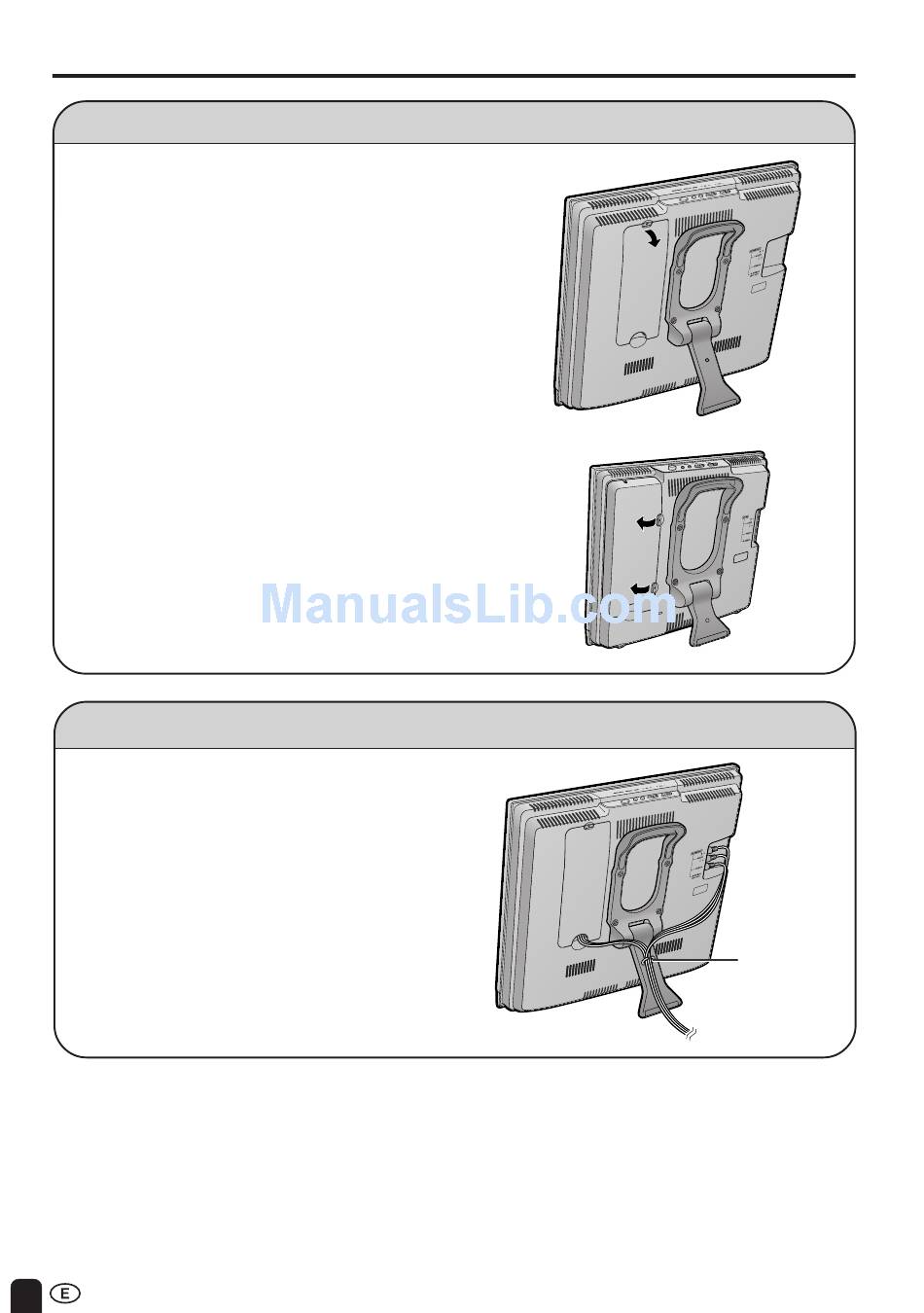

Removing the Terminal Cover

LC-20S1H
I Before connecting cables and cords to the rear terminals, remove
the terminal cover. Push in the tab and pull out the terminal cover
carefully.
I To mount the cover, insert the 2 hooks on the bottom of the cover
into the cabinet and press on the upper part of the terminal cover
until the tab locks in place with a click.
LC-13/15S1H
I Before connecting cables and cords to the rear
terminals, remove the terminal cover. Push in the 2
tabs on the right side of the terminal cover and pull it
out carefully to the left.
I To mount the cover, insert the 2 hooks on the left side
of the cover into the cabinet and press on the right part
of the cover until the tabs lock into place with a click.

Bundling Cables with Clamp

• Secure cables and cords with the supplied
cable clamp so that they do not get caught
when mounting the cover.
6
Cable clamp
