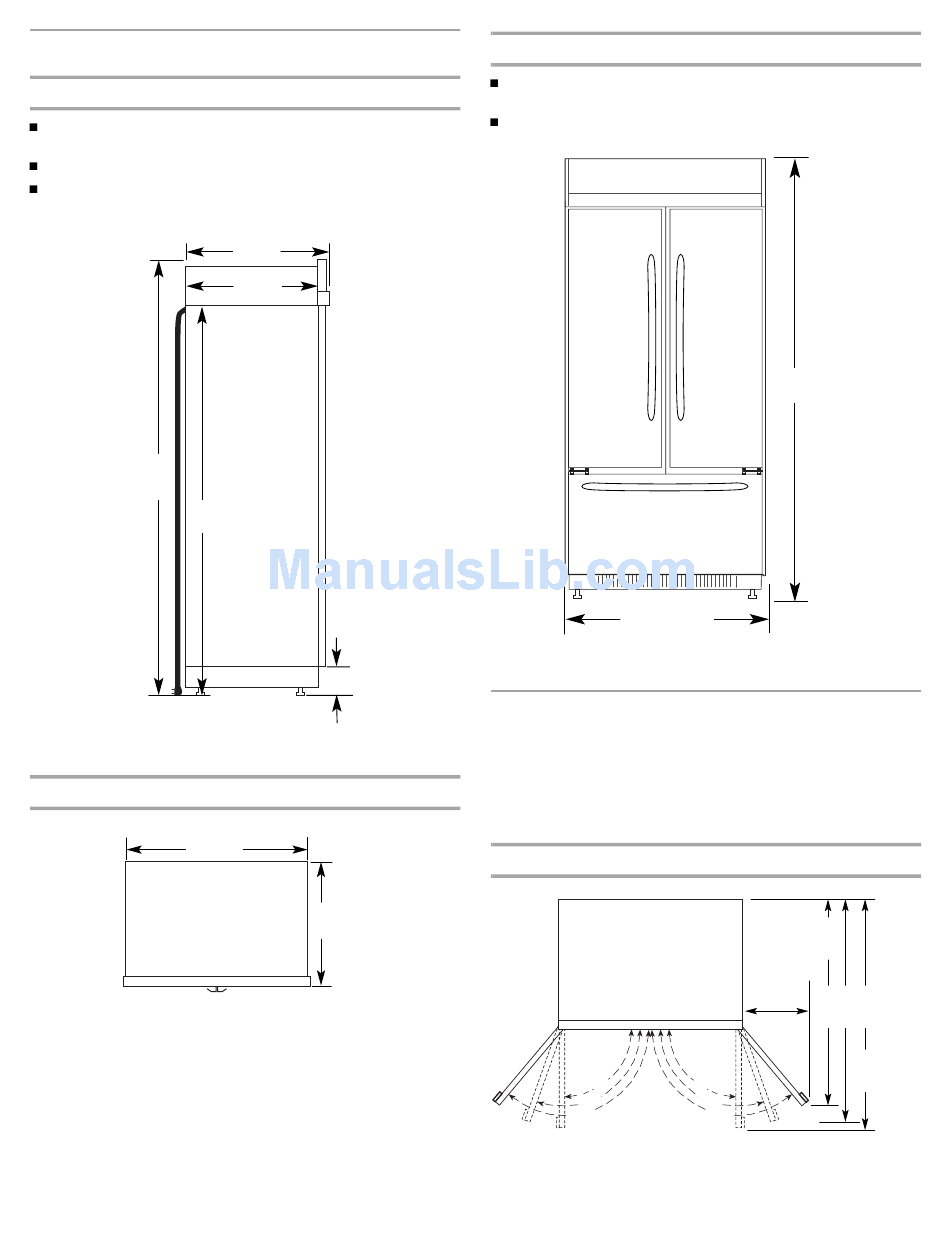

Product Dimensions

Side View
The depth from the front of the top grille to the back of the
refrigerator cabinet is 25³⁄₈" (64.4 cm).
The power cord is 84" (213 cm) long.
The water line attached to the back of the refrigerator is 5 ft
(1.5 m) long. Height dimensions are shown with leveling legs
extended ¹⁄₈" (3 mm) below the rollers.
³⁄₈
*83
"
(211.8 cm)
84" (213 cm)
Power Cord
*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.
Top View
41
(105 cm)
³⁄₈
25
"
(64.4 cm)
¹⁄₂
23
"
(60 cm)
¹⁄₂
*3
" (9 cm)
¹⁄₄
"
³⁄₈
25
"
(64.5 cm)
Front View
Width dimensions were measured from trim edge to trim
edge.
Height dimensions are shown with leveling legs extended ¹⁄₈"
(3 mm) below the rollers.
¹⁄₄
42
" (107.3 cm)
*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.

Door Swing Dimensions

The location must permit the door to open to a minimum of 90°.
Allow 4¹⁄₂" (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay
panels or custom handles.
To adjust the door swing, see "Adjust Door Swing."
42" (106.7 cm) Models
90˚
110˚
130˚
³⁄₈
*83
"
(211.8 cm)
⁷⁄₁₆
40
"
(102.7 cm)
¹⁄₂
13
"
⁷⁄₁₆
(34.3 cm)
43
"
(110.3 cm)
¹⁄₄
44
(112.3 cm)
90˚
110˚
130˚
"
7
