Summary of Contents for Impecca IPAC12-KR2

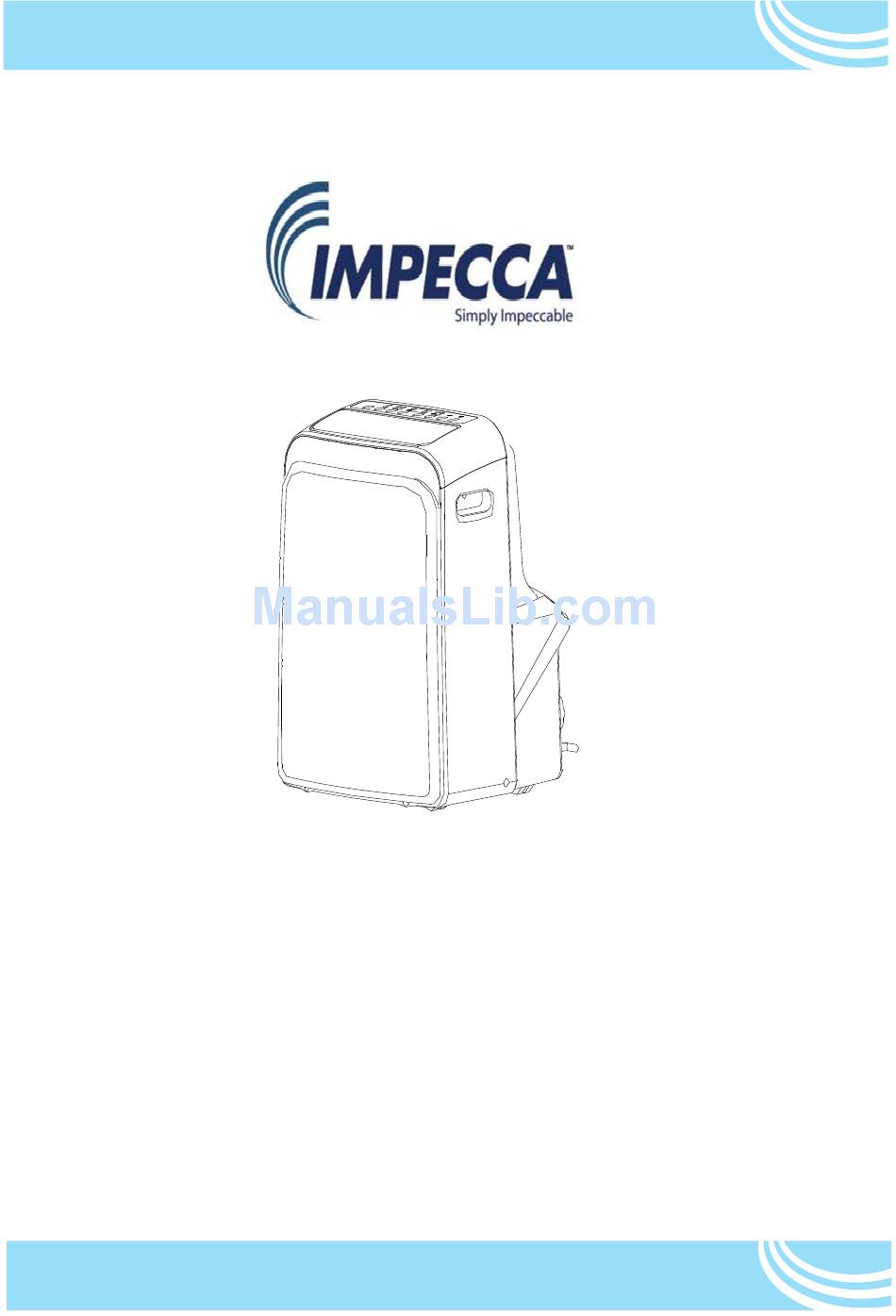

- Page 1 Dual-Hose Portable Air Conditioner User Manual Model: IPAC12-KR2...
- Page 2 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips.
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Safety rules ............................2 Operating conditions ........................2 Electrical information ........................3 IDENTIFICATION OF PARTS Accessories ............................3 Names of parts...........................4 AIR CONDITIONER FEATURES Electronic control operating instructions ...................5 OPERATING INSTRUCTIONS Operating instructions ........................6 INSTALLATION INSTRUCTIONS Location ............................8 Window kit installation ........................8 Exhaust hose installation ........................11 Water drainage ..........................12 CARE AND MAINTENANCE... -
Page 4: Safety Precautions Safety Rules
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage. Always do this Never do this • Do not operate your air conditioner in a wet room such as a bathroom or laundry room. -
Page 5: Electrical Information
IDENTIFICATION OF PARTS WARNING For your safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. -
Page 6: Names Of Parts
IDENTIFICATION OF PARTS PARTS NAMES Front Operation panel Horizontal louver blade (swings automatically) Caster Carrying handle (both sides) Fig.1 Rear Air filter (Behind the grille) Air intake Air outlet Power cord outlet Power cord buckle (Used only when storing the unit) Bottom tray drain outlet Power plug socket (Use CLOSE... -
Page 7: Air Conditioner Features Electronic Control Operating Instructions
Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from AUTO -> COOL -> DRY -> FAN. The mode indicator light illuminates for the corresponding mode. FAN button Control the fan speed. Press to select the fan speed in four steps –... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Error codes and protection code: E1- Room temperature sensor error – FAN operation Unplug the unit and plug it back in. Press the "MODE" button until the If error repeats, call for service. E2- Evaporator temperature sensor error – "FAN "... - Page 9 OPERATING INSTRUCTIONS SLEEP operation Note on sleep mode: Upon pressing this button, the selected temperature will increase by 2°F (1°C) in 30 minutes. The temperature will then increase The idea behind this mode is to save by another 2°F (1°C) after an additional 30 energy during the night when one is minutes.
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS (optional) A:30cm-100cm 30cm Fig.5 26.5" ( 48" ( Note: If the window opening is less than the mentioned minimum length of the window slider kit, shorten the piece containing both holes in order to fit the window opening. Never cut up to the hole 26.5"... - Page 11 INSTALLATION INSTRUCTIONS (optional)
- Page 12 INSTALLATION INSTRUCTIONS (optional) Note: All the illustrations in this manual are for descriptive purposes only. Your unit may be slightly different in actuality.
-
Page 13: Exhaust Hose Installation
INSTALLATION INSTRUCTIONS Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig.16a Install COOL or AUTO mode FAN, (DRY) DEHUMIDIFY mode Remove 1. Install the adaptor B and adaptor I onto the exhaust hose as shown in Fig.16a or Fig.16b. -
Page 14: Water Drainage
INSTALLATION INSTRUCTIONS Water drainage: During dehumidifying modes, remove the upper Continuous drain plug from the back of the unit, install the drain drain hose connector (5/8” universal female mender) with ¾” hose (locally purchased). For the models without drain connector, just attach the drain hose to the hole. -
Page 15: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE Air filter (take out) IMPORTANT: 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean Air filter the unit. (take out) 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 16: Troubleshooting Tips
Technical support For questions not answered in this manual, or for warranty service, please contact Impecca Technical Support: By phone: 1-866-954-4440 (9:00 AM to 6:00 PM Eastern Time) By e-mail: service@impeccausa.com Online: www.impecca.com © 2015 Impecca...
