7.1.6 PANEL ADJUSTING

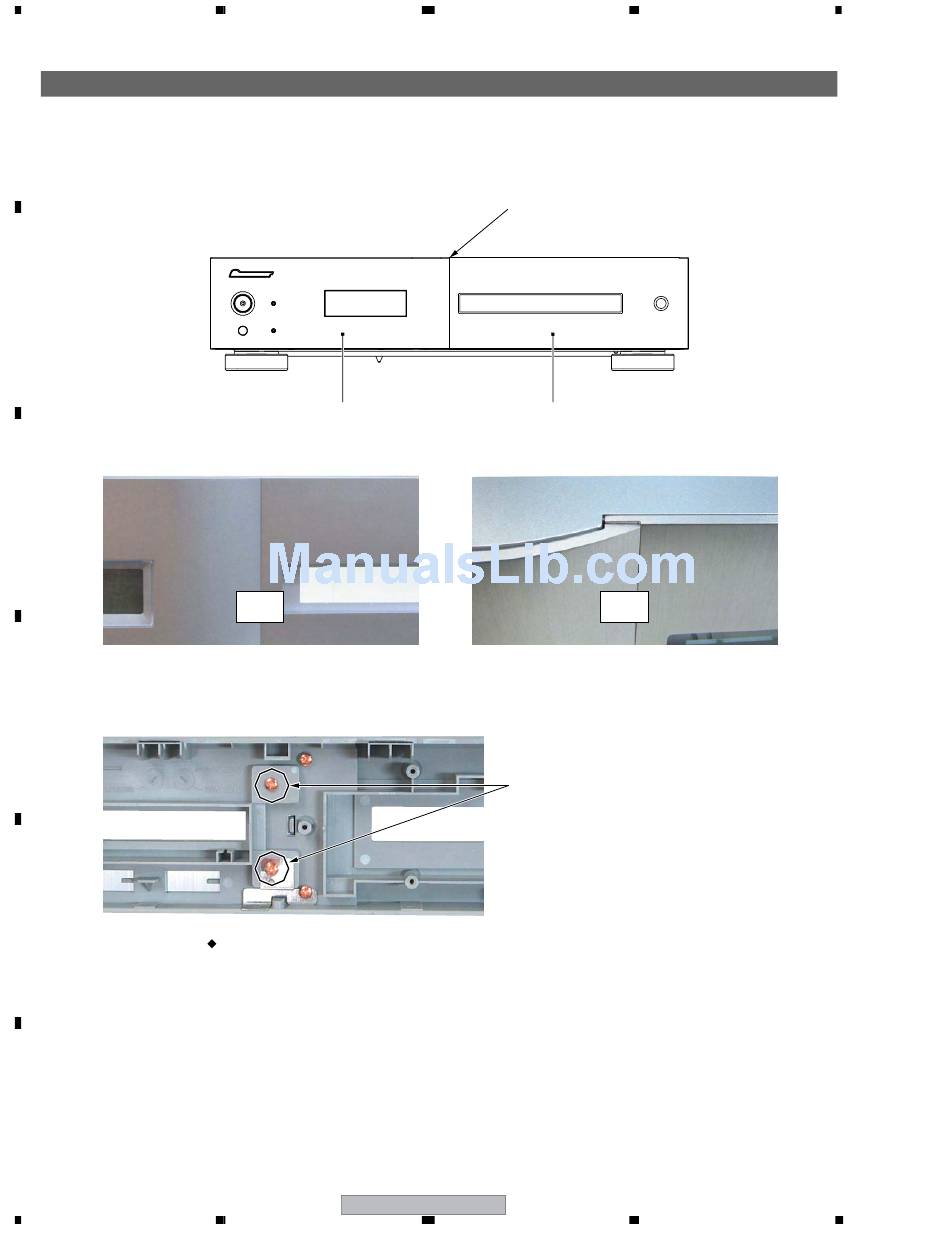

How to adjust the AL Panel (when replacing the AL Panel L)
A
Set the top and bottom edges of the AL Panel L even with R and tighten the screws.
B
C
D
E
F
80
1
2
AL Panel L
O K
Rear face of the Panel ASSY
PD-D6-J
2
3
Adjust this gap to zero (0).
AL Panel R
N G
Screw for securing the AL Panel L
(Tighten the screw while adjusting the gap.)
