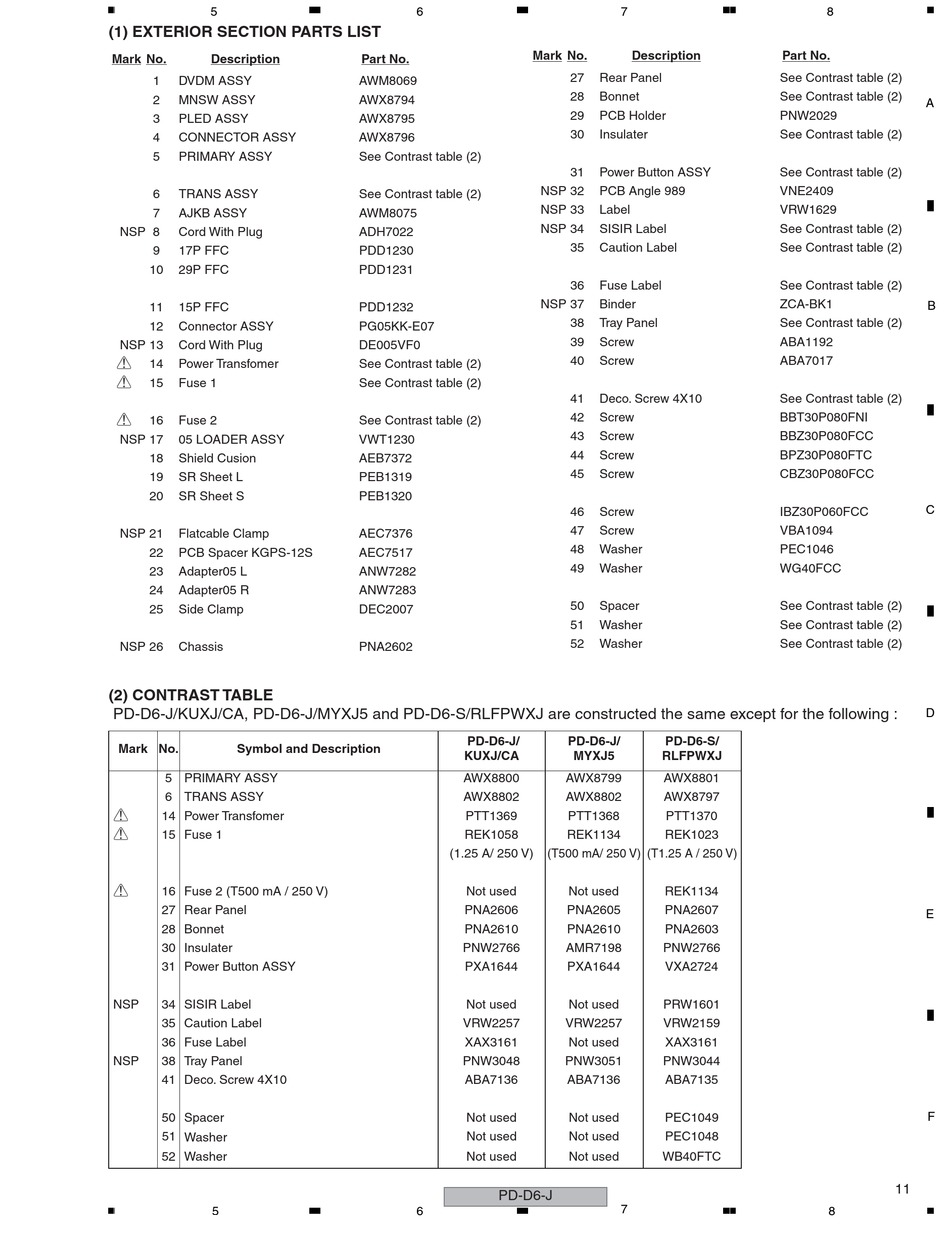

(1) EXTERIOR SECTION PARTS LIST
Mark No. Description
1 DVDM ASSY
2 MNSW ASSY
3 PLED ASSY
4 CONNECTOR ASSY
5 PRIMARY ASSY
6 TRANS ASSY
7 AJKB ASSY
NSP 8 Cord With Plug
9 17P FFC
10 29P FFC
11 15P FFC
12 Connector ASSY
NSP 13 Cord With Plug
>
14 Power Transfomer
>
15 Fuse 1
>
16 Fuse 2
NSP 17 05 LOADER ASSY
18 Shield Cusion
19 SR Sheet L
20 SR Sheet S
NSP 21 Flatcable Clamp
22 PCB Spacer KGPS-12S
23 Adapter05 L
24 Adapter05 R
25 Side Clamp
NSP 26 Chassis
(2) CONTRAST TABLE
PD-D6-J/KUXJ/CA, PD-D6-J/MYXJ5 and PD-D6-S/RLFPWXJ are constructed the same except for the following :
Mark No. Symbol and Description
5 PRIMARY ASSY
6 TRANS ASSY
>
14 Power Transfomer
>
15 Fuse 1
>
16 Fuse 2 (T500 mA / 250 V)
27 Rear Panel
28 Bonnet
30 Insulater
31 Power Button ASSY
NSP 34 SISIR Label
35 Caution Label
36 Fuse Label
NSP 38 Tray Panel
41 Deco. Screw 4X10
50 Spacer
51 Washer
52 Washer
5
6
Mark No.
Part No.
AWM8069
AWX8794
AWX8795
AWX8796
See Contrast table (2)
See Contrast table (2)
AWM8075
ADH7022
PDD1230
PDD1231
PDD1232
PG05KK-E07
DE005VF0
See Contrast table (2)
See Contrast table (2)
See Contrast table (2)
VWT1230
AEB7372
PEB1319
PEB1320
AEC7376
AEC7517
ANW7282
ANW7283
DEC2007
PNA2602
PD-D6-J/
KUXJ/CA
AWX8800
AWX8802
PTT1369
REK1058
(1.25 A/ 250 V)
Not used
PNA2606
PNA2610
PNW2766
PXA1644
Not used
VRW2257
XAX3161
PNW3048
ABA7136
Not used
Not used
Not used
PD-D6-J
6
7
Description
27 Rear Panel
28 Bonnet
29 PCB Holder
30 Insulater
31 Power Button ASSY
NSP 32 PCB Angle 989
NSP 33 Label
NSP 34 SISIR Label
35 Caution Label
36 Fuse Label
NSP 37 Binder
38 Tray Panel
39 Screw
40 Screw
41 Deco. Screw 4X10
42 Screw
43 Screw
44 Screw
45 Screw
46 Screw
47 Screw
48 Washer
49 Washer
50 Spacer
51 Washer
52 Washer
PD-D6-J/ PD-D6-S/
MYXJ5 RLFPWXJ
AWX8799 AWX8801
AWX8802 AWX8797
PTT1368 PTT1370
REK1134 REK1023
(T500 mA/ 250 V) (T1.25 A / 250 V)
Not used REK1134
PNA2605 PNA2607
PNA2610 PNA2603
AMR7198 PNW2766
PXA1644 VXA2724
Not used PRW1601
VRW2257 VRW2159
Not used XAX3161
PNW3051 PNW3044
ABA7136 ABA7135
Not used PEC1049
Not used PEC1048
Not used WB40FTC
