3.2 Link status

The Link Status tab displays the adapter's current status.
The following table describes the items found on the Network Status screen.
• status – Shows whether the station is connected to the wireless network, if not connected, display rF is
closed; if connected, display AP name and BSSID.
extra Info – Shows link status and the current channel in use.
•
Link speed – Shows the current max Transfer rate, unit is Mbit/sec.
•
throughput – Displays Tx and Rx rate, unit is Kbits/sec.
•
Link Quality – Shows the quality of the signal.
•
• signal strength – Shows the strength of the signal.
• Noise Level – Shows the signal noise level.
YML866 Rev1
www.netcomm.com.au

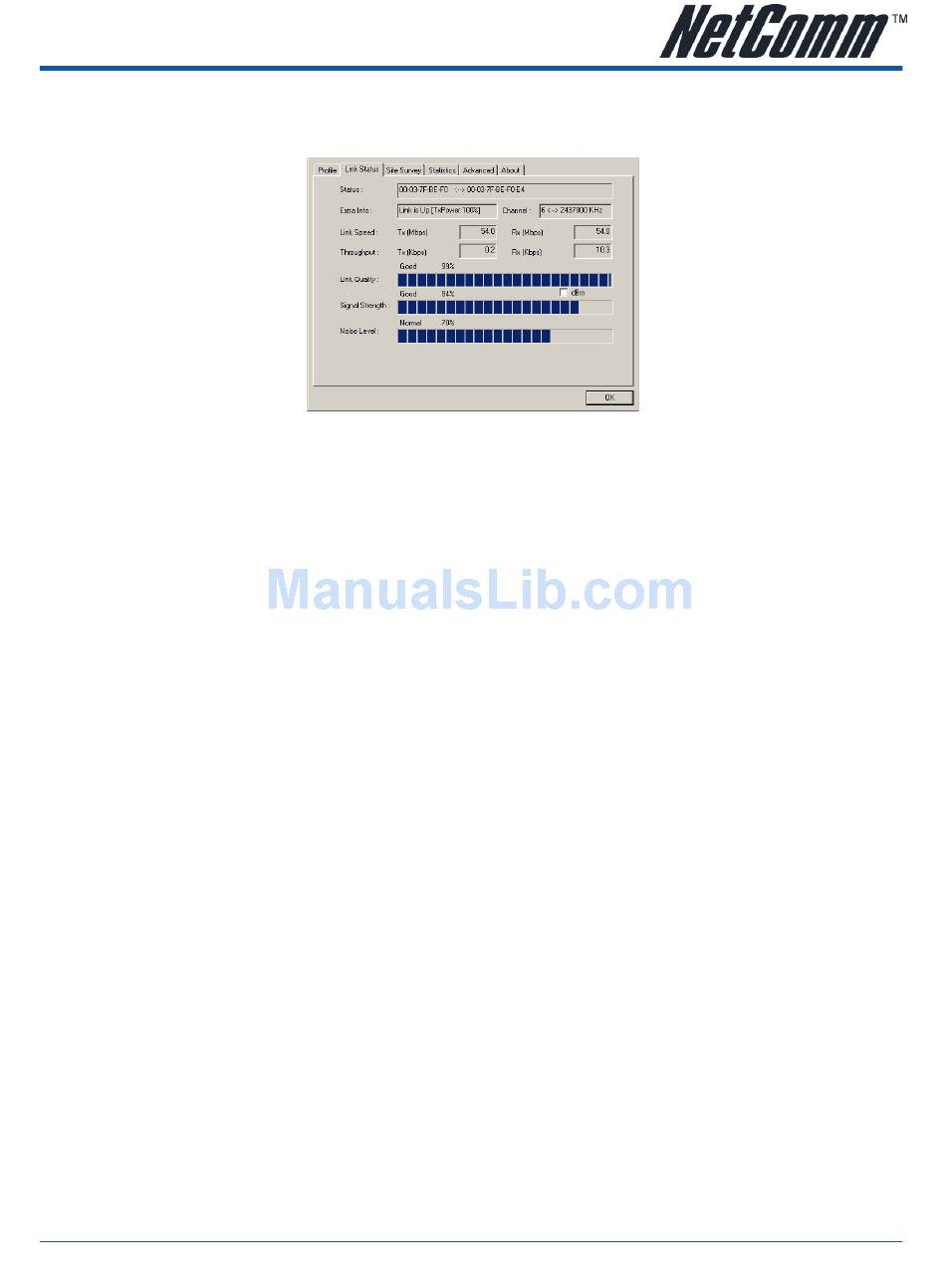

Figure -4 Link Status
