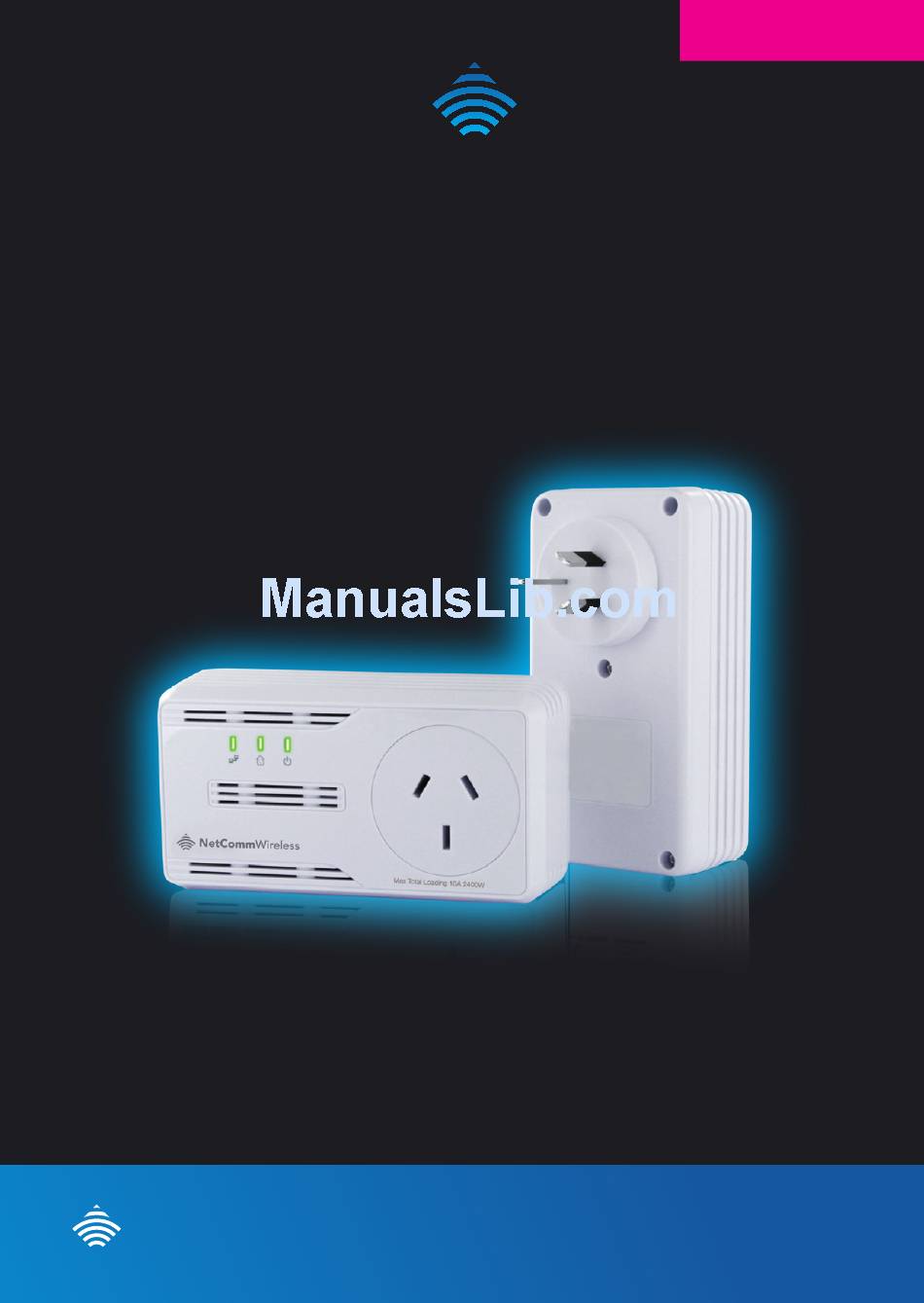

- Page 1 QUICK START GUIDE NetCommWirele 200Mbps Powerline Adapters with AC Pass-through NetCommWireless 200Mbps Powerline Adapters with AC Pass-through - NP205 NP205...
-
Page 2: Setting Up Powerline Adapters
This quick start guide is designed to get you up and running quickly with your new device. More advanced set up instructions can be found in the user manual which can be downloaded from www.netcommwireless.com SETTING UP YOUR POWERLINE ADAPTERS Router Using one of the supplied Ethernet cables connect one end into the LAN Ethernet port of your modem/router. - Page 3 Pass-through socket rather than connecting the Powerline adapter to a powerboard. If possible, also avoid plugging other electrical devices into the socket next to the Powerline adapter to ensure your network performs to its full potential. 200Mbps Powerline Adapters with AC Pass-through - NP205...
-
Page 4: Leds
LEDS What can the LEDs tell me? The Powerline LED changes colour depending on the speed of your data transfer. - Fastest - Faster - Fast LED Off- The adapter is not paired or wall socket not turned on. NOTE: The devices work on the same electrical circuit with the same circuit breaker. -
Page 5: Troubleshooting
2 seconds to complete the pairing process. When pairing is complete, the LED on both adapters will be lit. Both adapters now share the same password and will be able to communicate with each other. 200Mbps Powerline Adapters with AC Pass-through - NP205... -
Page 6: To Connect Additional Adapters
To connect additional adapters Connect adapter 1 and adapter 2 to a powerboard or powerpoints near each other in the same room Powerboard Additional Already Paired adapter adapter (unpaired) NetCommWireless... - Page 7 (press for 15 seconds) Press and hold the Simple Connect button on adapter 2 for 2 seconds to put the adapter into pairing mode. The will flash Already paired adapter (press for 2 seconds) 200Mbps Powerline Adapters with AC Pass-through - NP205...
- Page 8 Hold the Simple Connect button on adapter 1 for 2 seconds to complete the pairing process. When pairing is complete, the on both Adapters will be lit and all adapters will share the same password. Repeat for any further additions Additional adapter (unpaired)
