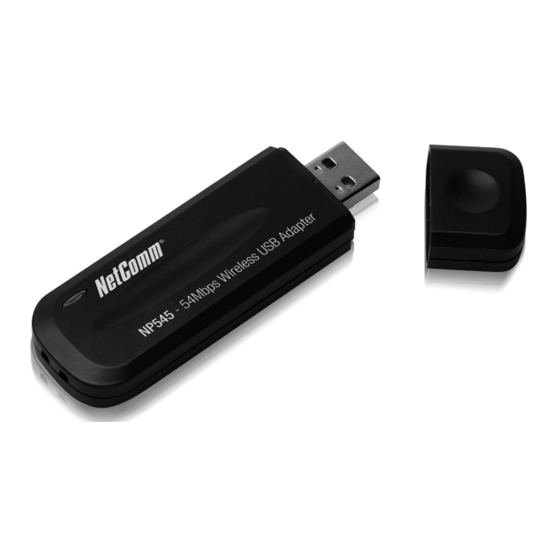

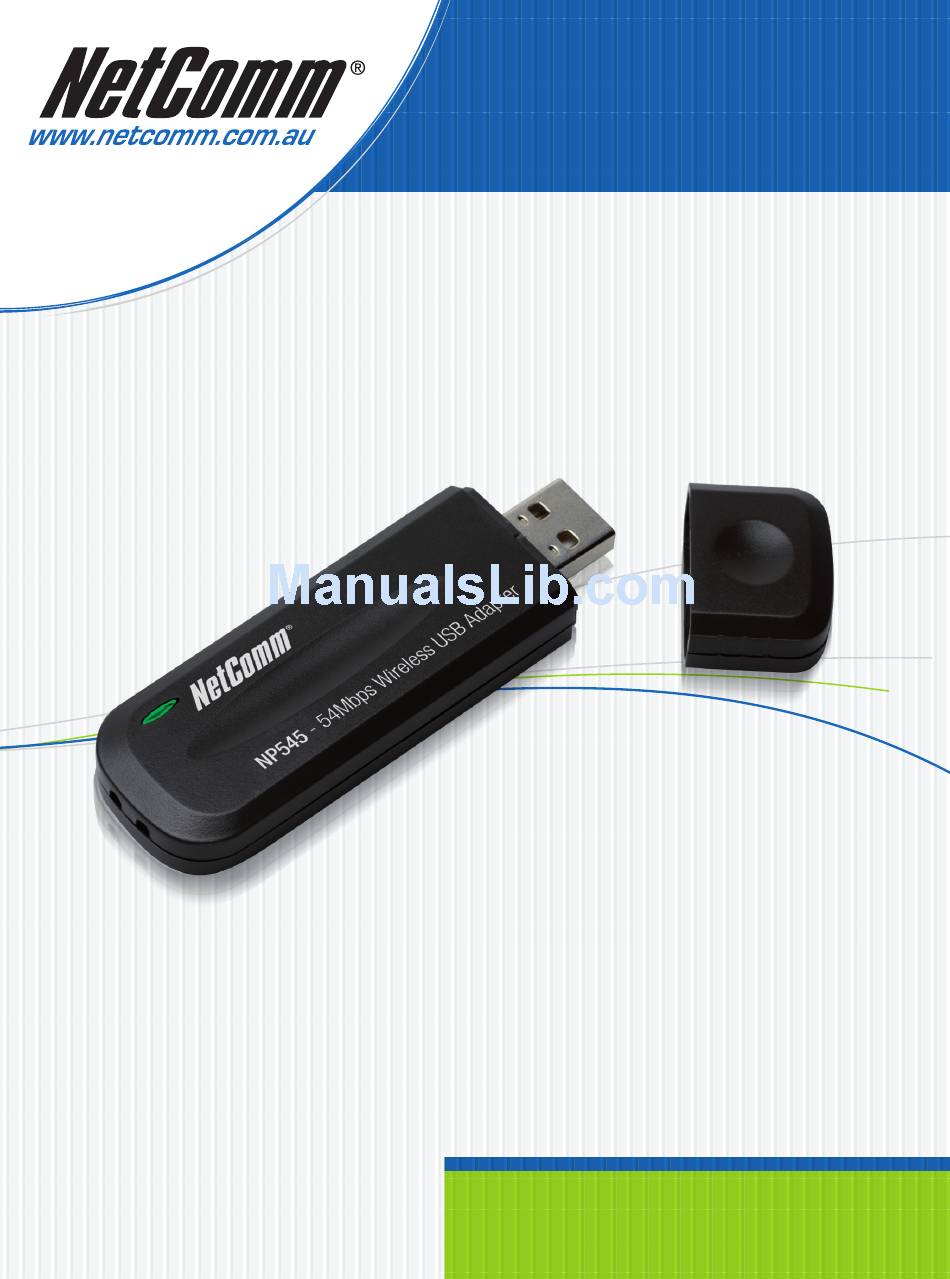

- Page 1 User Guide NP545 54Mbps Wireless USB Adapter...
-
Page 2: Package Contents
Utility and Drivers • User Guide • Other Helpful Information Note: If any of the listed contents is damaged or missing, please contact the retailer from whom you purchased the NP545 Wireless Adapter for assistance. NP545 User Guide YML866Rev1 www.netcomm.com.au... -
Page 3: Chapter 1 - Introduction
1 - INtrodUctIoN 1.1 overview of the product The NetComm NP545 USB Wireless Adapter gives you the flexibility to install your PC or notebook PC in the most convenient location available, without the cost of running the network cables. -
Page 4: Chapter 2 - Installation Guide
Otherwise, the Setup Wizard will display a screen similar to that shown in figure 2-2 after a moment. To continue, click the Next button on the screen, figure 2-2. Click the cancel button to abort the Installation. NP545 User Guide Figure -1 Preparing Setup Figure - Start Setup YML866Rev1 www.netcomm.com.au... - Page 5 If it does not, please follow the windows setup steps to finish the driver installation. After installing the driver successfully, you should see an icon, YML866 Rev1 www.netcomm.com.au Figure - Windows 000 Warning Box Figure -4 Finish , appear in your system tray.
-
Page 6: Hardware Installation
On the Windows taskbar, click the start button, point to settings, and then click control Panel Double-click the add/remove Programs icon, find the NP545 program from the installed program list, highlight it and click the remove button. Following the Install Shield Wizard will uninstall the utility software from your PC. NP545 User Guide YML866Rev1 www.netcomm.com.au... -
Page 7: Chapter 3 - Configuration
3 - coNFIgUratIoN NetComm NP545 USB Wireless Adapter can be configured by its utility. This section describes how to configure your USB Wireless Adapter for wireless connectivity on your Wireless Local Area Network (WLAN) and use the data security encryption features. - Page 8 Profile Name list, and click the activate button. Note: Do not forget to click the Apply button when you create a new profile for connection. NP545 User Guide Figure -1 Profile Tab YML866Rev1 www.netcomm.com.au...
- Page 9 – Displays the wireless mode, either Only 802.11B or 802.11B/G mode. channel – Shows the current channel in use. This field determines which operating frequency will • be used. YML866 Rev1 www.netcomm.com.au Figure - Add Profile - configuration NP545 User Guide NP545 User Guide...
- Page 10 WPA Preshared key – When you select WPA-PSK or WPA2-PSK Authentication, you need to enter the WPA Preshared key. This key can be from 8 to 63 characters and contain special characters and spaces. NP545 User Guide Figure - Add Profile – configuration YML866Rev1 www.netcomm.com.au...
-
Page 11: Link Status
Link Quality – Shows the quality of the signal. • • signal strength – Shows the strength of the signal. • Noise Level – Shows the signal noise level. YML866 Rev1 www.netcomm.com.au Figure -4 Link Status NP545 User Guide NP545 User Guide... -
Page 12: Site Survey
The statistics tab shows receiving and transmitting statistical information for the following receive and transmit diagnostics for frames received by or transmitted to the wireless network adapter. Click the reset counter button to reset the count of the statistics information. NP545 User Guide Figure -5 Statistics tab YML866Rev1 www.netcomm.com.au... - Page 13 - The wireless radio of this adapter can be enabled or disabled. You can turn the wireless • radio off by selecting the check-box. • apply - Click the apply button to save the current setting. YML866 Rev1 www.netcomm.com.au Figure -6 Advanced NP545 User Guide NP545 User Guide...
-
Page 14: An Example For Application
• 3.7 an example for application Suppose you have an installed AP, the SSID is NetComm and it adopts 64-bit encryption with the key 0123456789. To establish a connection with this AP, you should follow these steps below: Launch NP545 Wireless Client Utility. -
Page 15: Appendix A: Specifications
Safety & Emissions FCC, CE Physical environmental Operating Temp C~40 C (32 Storage Temp C – 70 Humidity 10% - 95% RH, Non-condensing Dimensions (WxDxH) 86x26x12 mm YML866 Rev1 www.netcomm.com.au F~104 C (-40 F~158 NP545 User Guide NP545 User Guide... -
Page 16: Appendix B: Legal & Regulatory Information
The power supply that is provided with this unit is only intended for use with this product. Do not use this power supply with any other product or do not use any other power supply that is not approved for use with this product by NetComm. Failure to do so may cause damage to this product, fire or result in personal injury. -
Page 17: Product Warranty
The cost of transporting product to and from NetComm’s nominated premises is your responsibility; and, NetComm does not have any liability or responsibility under this warranty where any cost, loss, injury or damage of any kind, whether direct, indirect, consequential, incidental or otherwise arises out of events beyond NetComm’s reasonable control. This includes but is not limited to: acts of God, war, riot, embargoes, acts of civil or military authorities, fire, floods, electricity outages, lightning, power surges, or shortages of materials or labour. -
Page 18: Contact Information
Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a Network Specialist.
