ON to OFF. This means that a visual or acoustic signal can be connected to channel 2 to signal that
the anti-theft device is connected or disconnected.

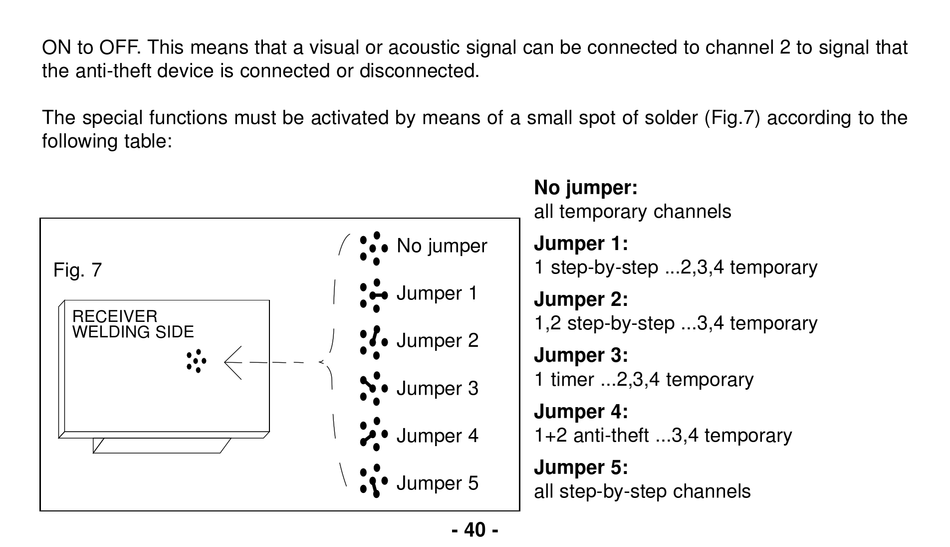

The special functions must be activated by means of a small spot of solder (Fig.7) according to the
following table:
Fig. 7
RICEVITORE
RECEIVER
LATO SALDATURE
WELDING SIDE
No jumper:
all temporary channels
NESSUN
Jumper 1:
No jumper
PONTICELLO
1 step-by-step ...2,3,4 temporary
Jumper 1
PONTICELLO 1
Jumper 2:
1,2 step-by-step ...3,4 temporary
Jumper 2
PONTICELLO 2
Jumper 3:
1 timer ...2,3,4 temporary
Jumper 3
PONTICELLO 3
Jumper 4:
1+2 anti-theft ...3,4 temporary
PONTICELLO 4
Jumper 4
Jumper 5:
PONTICELLO 5
Jumper 5
all step-by-step channels
