- Page 1 Nice made in Italy OXIBD OXIBD/A Radio receiver EN - Instructions and warnings for installation and use...
-
Page 2: Product Description

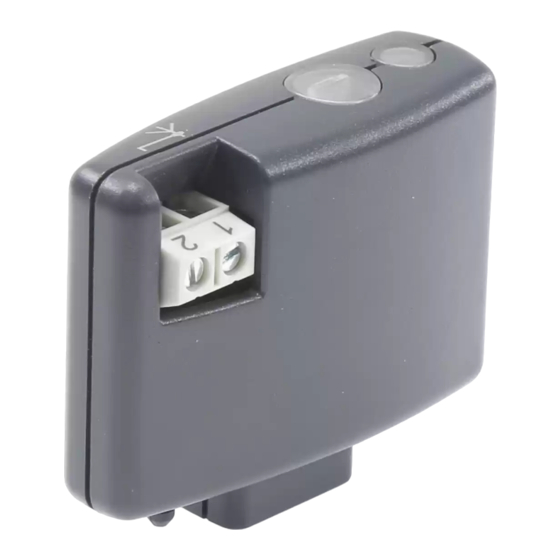

Instructions translated from Italian PRODUCT DESCRIPTION OXIBD (OXIBD/A) is a radio receiver designed for being installed on a control unit for automating gates, garage doors and road barriers. – All uses other than the intended use described and use in environmental conditions other than those described in this manual should be considered improper and forbidden! •... - Page 3 • Other product characteristics – The OXIBD receiver is compatible with the “O-Code”, “FloR”, “TTS”, “Smilo” and “Flo” one-way radio encod- ing systems, and with the “BD” two-way encoding system. In particular, the “O-Code” and “BD” encoding systems allow for exploiting all the advanced and exclusive functions of the “NiceOpera” system.
-
Page 4: Installation And Connection
INSTALLATION AND CONNECTION The receiver must be connected to the control unit by inserting it through the relevant slot: Before inserting (or removing) the receiver, disconnect the power supply to the control unit. Connect the antenna supplied to terminal 1 of the re- ceiver, as shown in Fig. - Page 5 Restore the power supply to the control unit. MEMORISING / DELETING TRANSMITTERS IN THE RECEIVER The first one-way transmitter to be memorised in the receiver also defines the encoding system (“O-Code” (“O-Code/A”) or “FloR” or “TTS” or “Smilo” or “Flo”) that each successive one-way transmitter to be memorised must have.
- Page 6 • 2 green flashes = transmitters with O-Code (O-Code/A) or FloR or TTS encoding system • 2 green flashes and 1 orange flash = transmitters with O-Code x 2+1 (O-Code/A) or FloR or TTS + BD encoding system • 3 green flashes = transmitters with Smilo encoding system • 3 green flashes and 1 orange flash = transmitters with Smilo + x 3+1 BD encoding system • 5 green flashes = no transmitter memorised...
- Page 7 KEY TO THE SYMBOLS USED IN THE MANUAL Symbol Description (on the receiver) LED “B” STEADY LIT (on the receiver) LED “B” LONG FLASH (on the receiver) LED “B” QUICK FLASH (on the receiver) LED “B” OFF Disconnect power supply / Restore power supply Wait ...
- Page 8 Press and release key “A” of the receiver Release key “A” of the receiver Press and release the desired transmitter key Hold down the desired transmitter key Release the desired transmitter key Read the control unit’s instruction manual ... Observe when LED “B” emits signals The system can be programmed in Mode 1 or in Mode 2: see Paragraphs 3.1 and 3.2.
- Page 9 procedure terminates, the memorisation will occupy a single memory location and the command associated with each key will depend on the “List of commands” present on the automation’s control unit. PROCEDURE 1 - Mode 1 memorisation On the receiver: hold down key A and wait for the green LED B to light up.
- Page 10 by the installer from the “List of commands” of the automation’s control unit. Note - A key can be associated with only one output, while the same output can be associated with multiple keys. PROCEDURE 2 - Mode 2 memorisation (and extended Mode 2) In the control unit manual: choose the command to be memo- rised and remember its “identification number”.
- Page 11 transmitter already memorised. The procedure does not entail any direct action on key A of the receiver, only the presence of the transmitter within the receiver’s reception range. • The memorisation “near the receiver” can be prevented by blocking the receiver’s function through Procedure 7 (Paragraph 3.8).
- Page 12 3.5 - Memorising (in the receiver) the control unit Series/Address, for the BusT4 network The OXIBD (OXIBD/A) receiver can interact with a single control unit through the “BusT4” network. If the system contains multiple control units connected to each other via “BusT4”, before carrying out the following procedure the cable of the “BusT4”...
- Page 13 “Memorising the control unit Series/Address for the BusT4 network” procedure. WARNING! - To ensure correct management of the status on two-way transmitters (ON3EBD (ON3EBD/A)), the OXIBD (OXIBD/A) receiver must have the same Series as the control unit. 3.6 - Deleting the receiver’s memory (fully or partially) In a one-way system, the memorisation or code deletion procedures involve the receiver alone.
- Page 14 With the memorisation of two-way transmitters in the OXIBD (OXIBD/A) receiver, the identification code of the same receiver is automatically memorised by the transmitter. Warning! - if the two-way transmitter in the OXIBD (OXIBD/A) receiver is deleted, to complete the operation it is necessary to also delete the transmitter’s memory.
- Page 15 3.7 - Deleting a SINGLE transmitter or a SINGLE key from the receiver memory PROCEDURE 6 - Deleting a SINGLE transmitter or a SINGLE key from the receiver memory On the receiver: hold down key A, observe the green LED B light up and move to step 02 when it switches off.
- Page 16 procedure (Paragraph 3.3) or the “enabling code” procedure (Paragraph 3.4). The default setting is ON for both procedures. To perform the following procedure it is necessary to have a transmitter already memorised in the receiver. PROCEDURE 7 - Locking (or release) of memorisations carried out with the “near the control unit”...
-
Page 17: Other Functions
Within 5 seconds: repeatedly press and release key A of the > 5 sec < receiver to choose one of the following functions, identifiable by the status of LED B: - No lock active = LED OFF - Locking of the memorisation “near the control unit” = RED LED - Locking of the memorisation with the “enabling code”... - Page 18 When the transmitter is used for the first time, the receiver will memorise the new priority level received and ignore any command sent by the lost or stolen transmitter, should it be used. The priority can be changed through the O-Box programmer. By default the receiver has the “Priority”...
-
Page 19: Technical Specifications
O-Box and O-View programmers, if the password is not known. TECHNICAL SPECIFICATIONS OXIBD Product type Two-way receiver Decoding OXIBD: “BD” / “O-code” / “FloR” / “TTS” / “Flo” / “Smilo” OXIBD/A: “BD” / “O-code/A” Input impedance 50 Ω Reception frequency 433.92 MHz Transmission frequency 433.92 MHz (only BD) -
Page 20: Product Disposal
– All technical specifications stated herein refer to an ambient temperature of 20°C (± 5° C). – Nice reserves the right to apply modifications to the product at any time when deemed necessary, without altering the intended use and functions of the product itself. - Page 21 SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby Nice S.p.A. declares that the radio equipment type OXIBD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.niceforyou.com/en/support...
- Page 22 Signals emitted by LED B of the receiver Long flashes > GREEN On start-up: 1 Z = Current encoding system: “Flo” 2 Z = Current encoding system: “O-Code”/“FloR” 3 Z = Current encoding system: “Smilo” 5 Z = No remote control memorised During operation: 1 Z = Indicates that the code received is not stored in the memory 3 Z = Saving code in memory 5 Z = Memory deleted...
- Page 23 5 Z = During the deletion procedure, indicates that the code has been deleted 5 Z = “Certificate” with lower priority than the admissible level 6 Z = Code synchronisation failure Long flashes > RED 1 Z = Non-original code block 2 Z = Code with lower priority than the authorised level Short flashes > RED 1 Z = “In vicinity”...
- Page 24 Nice S.p.A. Via Callalta, 1 31046 Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
