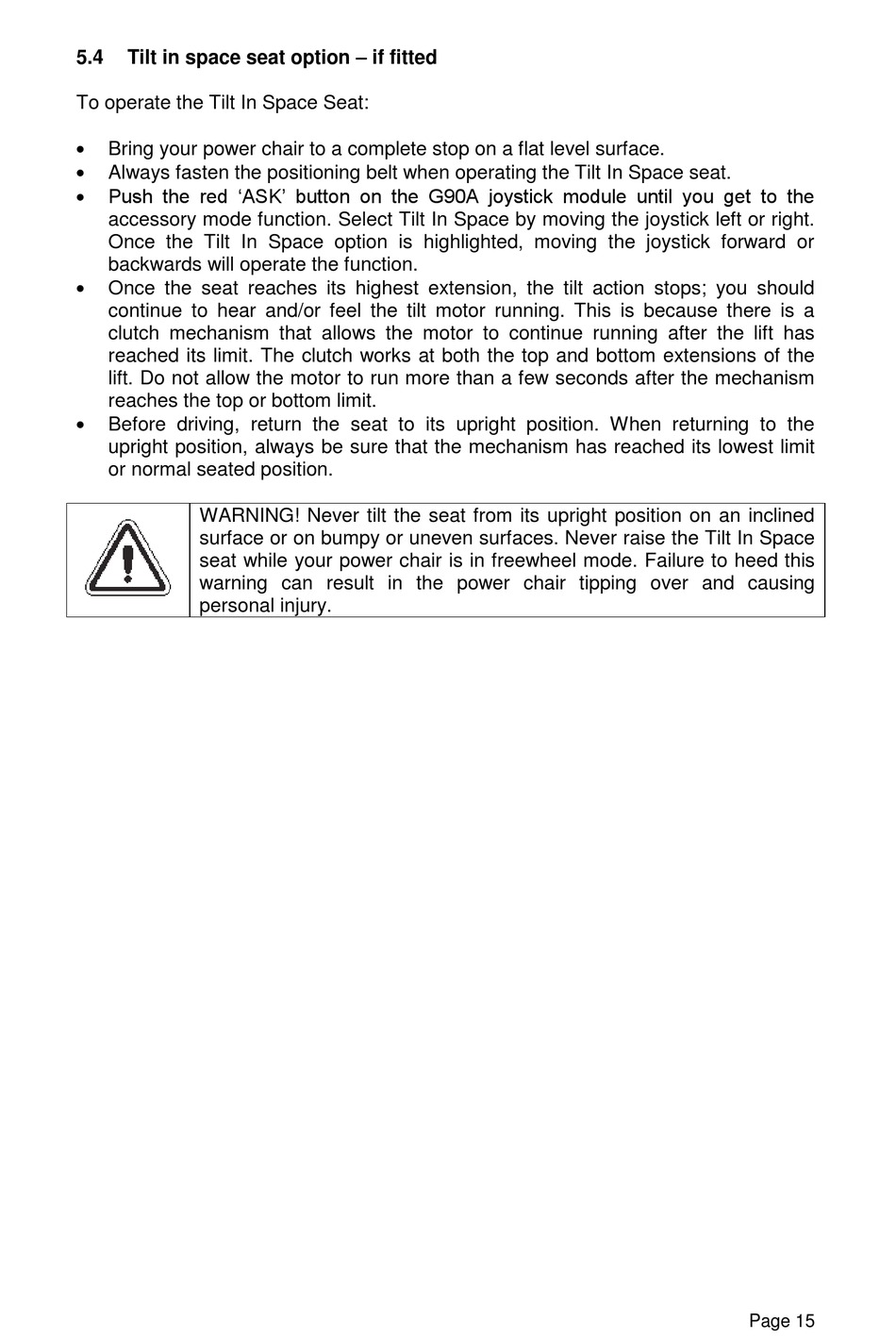

Tilt in space seat option – if fitted
5.4
To operate the Tilt In Space Seat:

Bring your power chair to a complete stop on a flat level surface.

Always fasten the positioning belt when operating the Tilt In Space seat.

Push the red 'ASK' button on the G90A joystick module until you get to the
accessory mode function. Select Tilt In Space by moving the joystick left or right.
Once the Tilt In Space option is highlighted, moving the joystick forward or
backwards will operate the function.

Once the seat reaches its highest extension, the tilt action stops; you should
continue to hear and/or feel the tilt motor running. This is because there is a
clutch mechanism that allows the motor to continue running after the lift has
reached its limit. The clutch works at both the top and bottom extensions of the
lift. Do not allow the motor to run more than a few seconds after the mechanism
reaches the top or bottom limit.

Before driving, return the seat to its upright position. When returning to the
upright position, always be sure that the mechanism has reached its lowest limit
or normal seated position.
WARNING! Never tilt the seat from its upright position on an inclined
surface or on bumpy or uneven surfaces. Never raise the Tilt In Space
seat while your power chair is in freewheel mode. Failure to heed this
warning can result in the power chair tipping over and causing
personal injury.
Page 15
