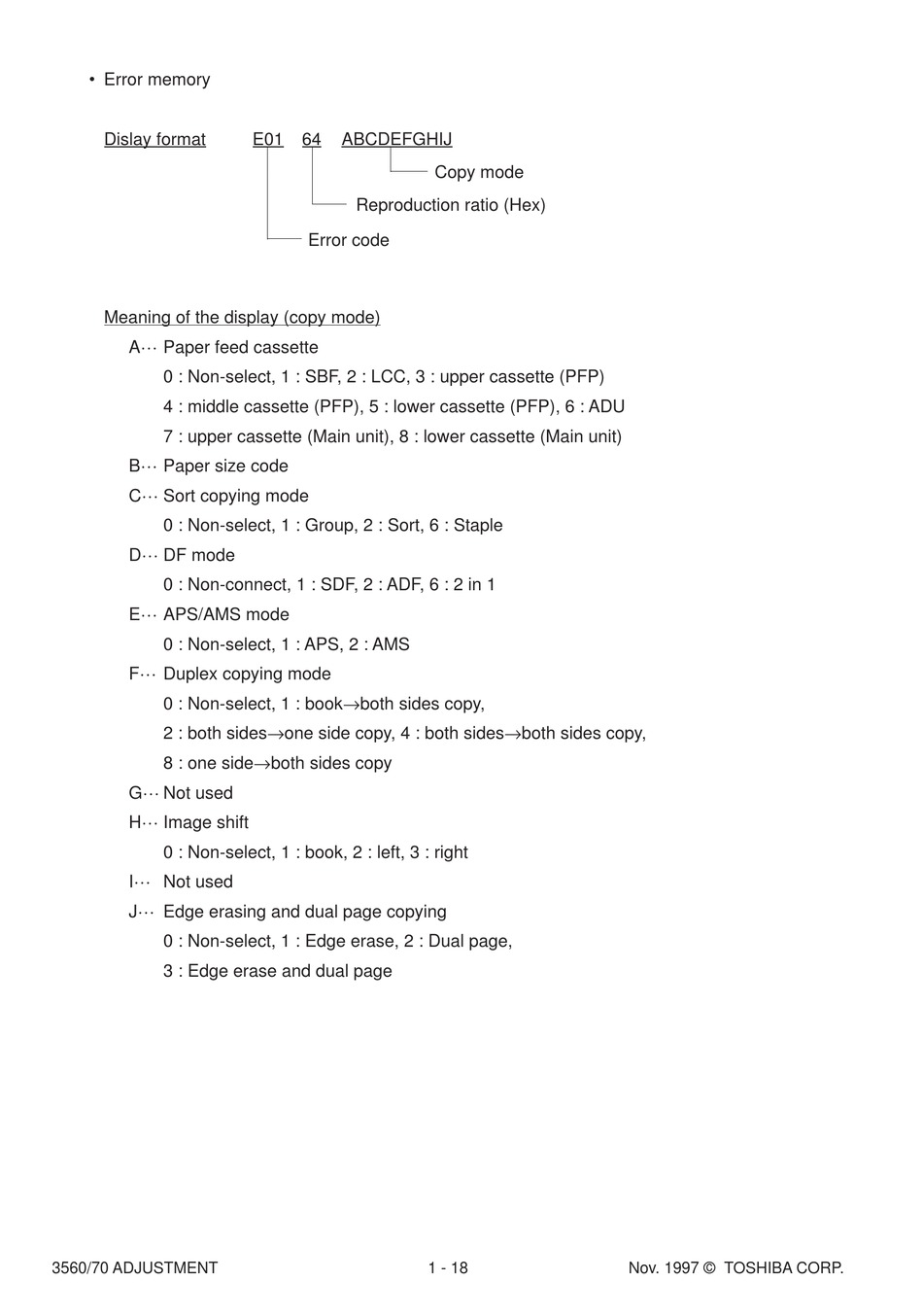

• Error memory
Dislay format
Meaning of the display (copy mode)
AL Paper feed cassette
0 : Non-select, 1 : SBF, 2 : LCC, 3 : upper cassette (PFP)
4 : middle cassette (PFP), 5 : lower cassette (PFP), 6 : ADU
7 : upper cassette (Main unit), 8 : lower cassette (Main unit)
BL Paper size code
CL Sort copying mode
0 : Non-select, 1 : Group, 2 : Sort, 6 : Staple
DL DF mode
0 : Non-connect, 1 : SDF, 2 : ADF, 6 : 2 in 1
EL APS/AMS mode
0 : Non-select, 1 : APS, 2 : AMS
FL Duplex copying mode
0 : Non-select, 1 : book→both sides copy,
2 : both sides→one side copy, 4 : both sides→both sides copy,
8 : one side→both sides copy
GL Not used
HL Image shift
0 : Non-select, 1 : book, 2 : left, 3 : right
IL Not used
JL Edge erasing and dual page copying
0 : Non-select, 1 : Edge erase, 2 : Dual page,
3 : Edge erase and dual page
3560/70 ADJUSTMENT
E01 64 ABCDEFGHIJ
Reproduction ratio (Hex)
Error code
Copy mode
