Installation to Extension Column / Ceiling Plate
2
NOTE: Refer to accompanying instructions with ceiling plates (sold separately) for installing these models to
ceiling.
Screw projector mount assembly (A) onto extension column as shown in figure 2.1.
NOTE: For 3/4" extension columns, reducer ACC 913 (not included) will be required as shown in figure 2.2. Tighten
swivel stop screw against extension column, flush mount tube or reducer using 4 mm security allen wrench (B) as
shown in figure 2.3.
NOTE: Swivel stop screw is used to jam against threads of extension column, flush mount tube or reducer to
prevent any excess movement of projector mount assembly (A). Do not overtighten screw; overtightening screw will
damage threads making it difficult to separate products.
Skip to step 3.
A
Visit the Peerless Web Site at www.peerlessmounts.com
1 1/2" EXTENSION
COLUMN
(SOLD SEPARATELY)
UL LISTED EXT OR ADJ
SERIES)
ARROW
INDICATES
FRONT OF
MOUNT

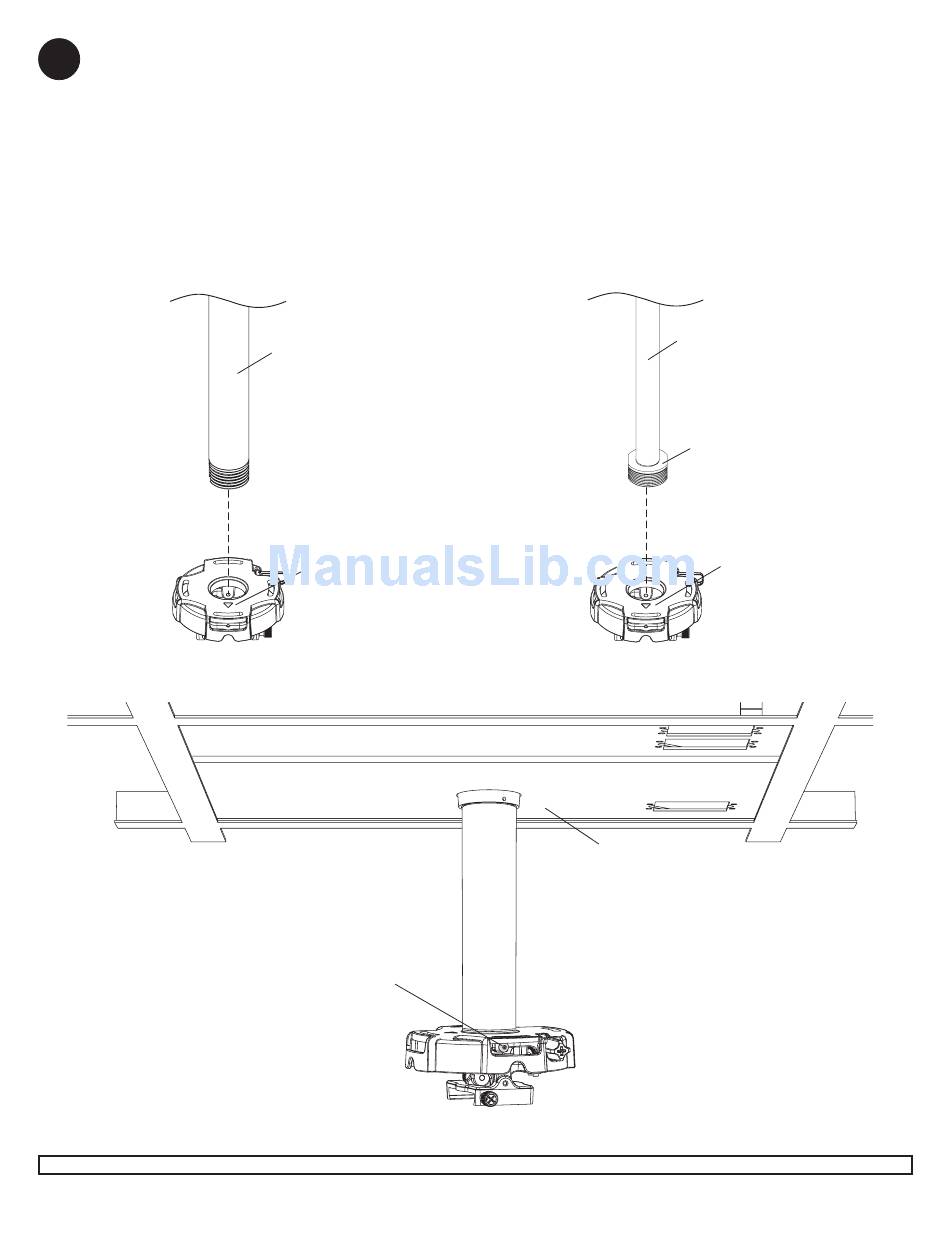

fig. 2.1
SWIVEL STOP
SCREW
4 of 10
3/4" EXTENSION COLUMN
(SOLD SEPARATELY)
ACC 913
(NOT UL LISTED)
(SOLD SEPARATELY)
ARROW
INDICATES
A
FRONT OF
MOUNT
fig. 2.2
CMJ 455
(SOLD SEPARATELY)
fig. 2.3
ISSUED: 08-05-08 SHEET #: 056-9008-1
For customer care call 1-800-865-2112 or 708-865-8870.
