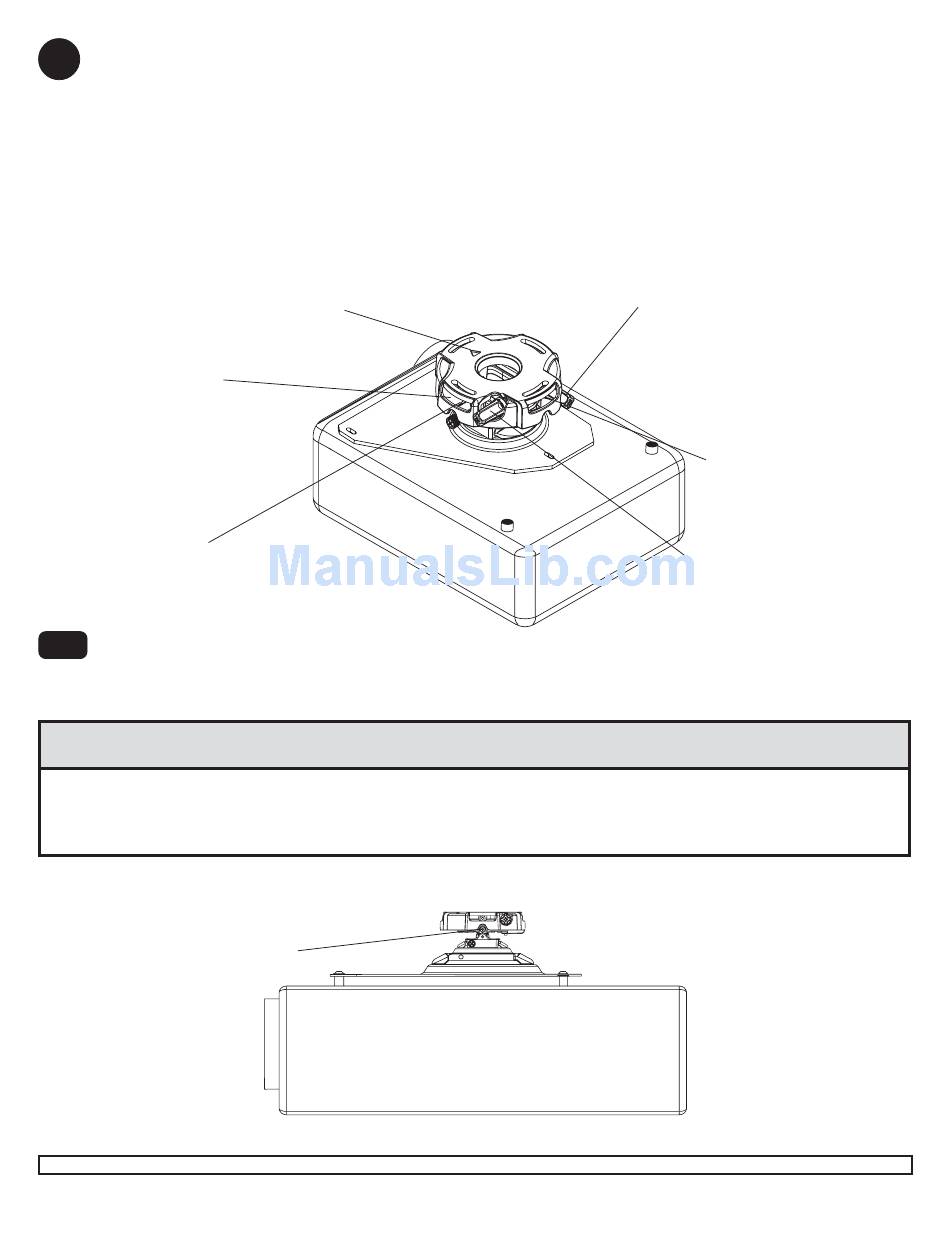

Projector Alignment

7
To adjust yaw (swivel) for wood stud, concrete ceiling, and threaded rod mounting applications:
Loosen wood screws (F) if flush mounted to wood joists (page 5) or concrete ceilings (page 6), or loosen
locknuts on threaded rods (page 7), until projector mount can be rotated. Rotate mount to desired position and
retighten screws or locknuts.
To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A)
indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Turn knob on back of mount as shown below. Pull knob out and
turn by hand for easy adjustment or insert #2 phillips screwdriver in end of knob and turn.
To adjust roll (side to side tilt): Turn knob on side of mount as shown below. Pull knob out and turn by hand
for easy adjustment or insert #2 phillips screwdriver in end of knob and turn.
ACCESS SLOT FOR
OPEN END WRENCH
ALLOWS TIGHTENING
OF WOOD SCREW (F)
WITHOUT REMOVING
PROJECTOR
SCREW FOR YAW (SWIVEL) STOP
(REFER TO STEP 2, INSTALLATION
TO EXTENSION COLUMNS, FIG. 2.3)
7-1
To prevent tampering with the pitch and roll adjustments: Tighten the two tamper resistant security screws
on the projector mount assembly using 4 mm security allen wrench (B) to lock the pitch and roll adjustments as
shown below.
Note: Tighten screws firmly, but do not overtighten. Overtightening can damage the mount.
• Do not adjust pitch or roll while tamper resistant security screws are fully engaged.
• Loosen the two tamper resistant security screws one complete turn before adjusting the projector mount assembly or
damage may occur.
TO LOCK PITCH TIGHTEN
TAMPER RESISTANT
SECURITY SCREW
Visit the Peerless Web Site at www.peerlessmounts.com
ARROW INDICATES
FRONT OF MOUNT
CAUTION
A
SIDE VIEW
10 of 10
For customer care call 1-800-865-2112 or 708-865-8870.
All other brand and product names are trademarks or registered trademarks of their respective owners.
KNOB FOR PITCH
ADJUSTMENT
BACK OF MOUNT
KNOB FOR ROLL
ADJUSTMENT
ISSUED: 08-05-08 SHEET #: 056-9008-1
© 2008, Peerless Industries, Inc. All rights reserved.
