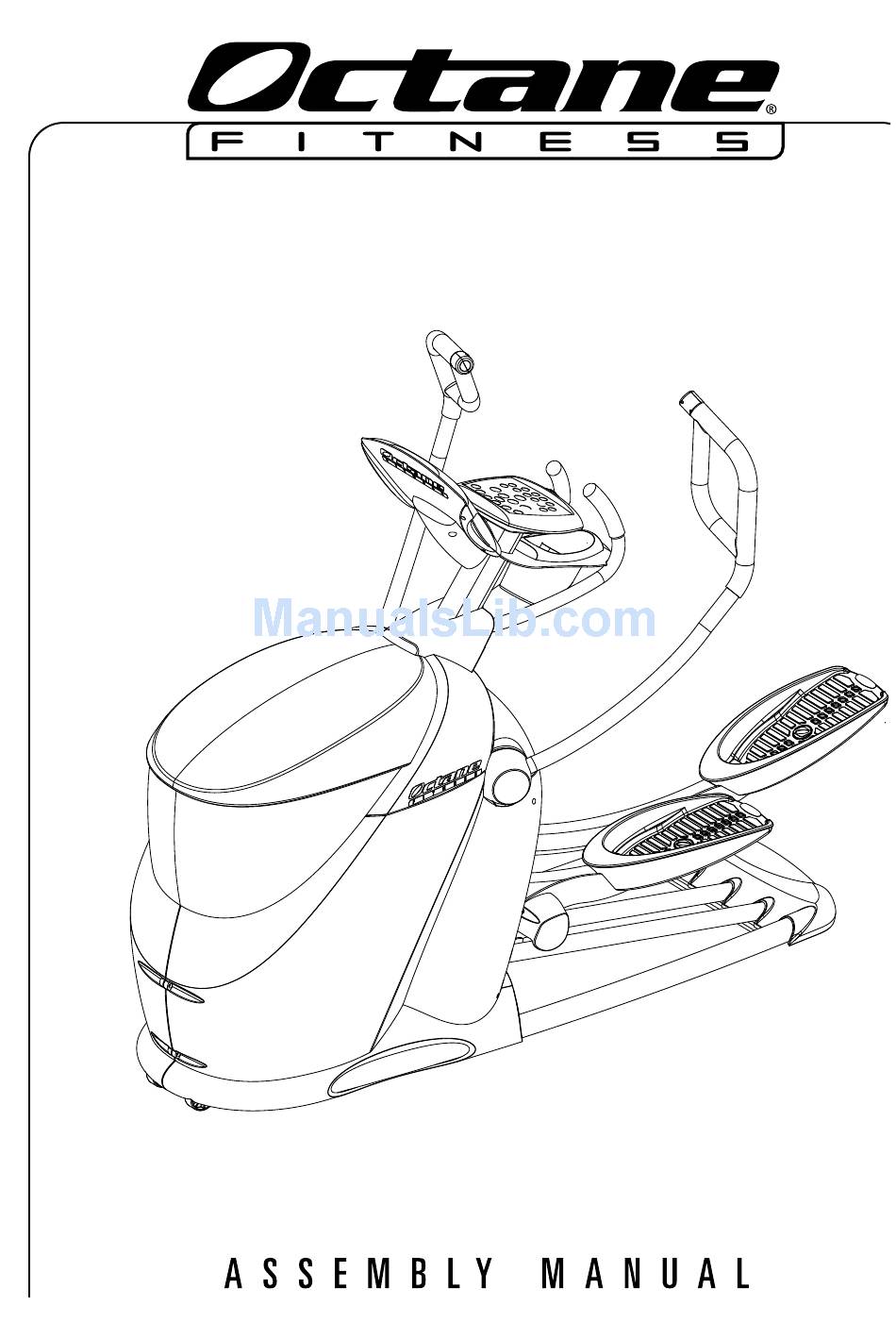

- Page 1 Q47e/Q47ce...
- Page 3 __ __ __ __ __ __ __ __ __ __ __ __ __ __ If you have any additional questions or need additional assistance in assembly, please contact your local service provider or Octane Fitness Customer Service at 1.888.OCTANE4 ext. 1. You may also visit us on the web at www.octanefitness.com.
- Page 4 Q 4 7 e / Q 4 7 c e c o n t e n t s The octane Fitness base box contains the following: tools required: A) 1 - Octane Fitness cross trainer base • Phillips screwdriver B) 1 - Console mast •...
- Page 5 The Q47e/Q47ce features transport wheels on the front of the unit. Be careful when moving from one surface to another, such as hardwood floor to carpet.
- Page 6 1 - Deluxe console 1 - Deluxe keypad 2 - Console back arcs (left and right) 1 - Power supply 1 - Octane Fitness wireless heart rate transmitter and elastic strap ™ 1 - Information packet 4 - Phillips 18mm screws (not pictured)
- Page 7 1. Attach pedal lever a. Remove bolt from 3-pivot link. b. Place right pedal lever (E) through leg slot in rear shroud and attach it to the 3-pivot link. Check to see that the rollers are seated and properly aligned on the rails before securing the pedal lever.
- Page 8 3. install access panel a. Loosen the screws on the left and right sides of the lower shroud near the front of the unit. (These screws secure the side of the shroud and the access panel to the frame.) b. Slide the metal plate of the access panel (D) behind the back shroud.
- Page 9 5. mount the keypad to the console mast If you have the Q47e keypad: a. Remove the two screws securing the console back piece to the mast plate. b. Route the cable from the heart rate board down through the top of the mast tube and out of the hole beneath the console plate.
- Page 10 Note: If you are using the optional LCD Mounting Arm, Keypad Ground Connection skip step 6 of these instructions and instead follow the (all models) instructions included with the LCD Mounting Arm. Once you have completed those instructions, resume assembly of your Q47e/Q47ce with step 7 of these instructions.
- Page 11 If any issues are Console to Base Heart Rate detected, recheck the connections, or contact Octane Fitness (white, 12-pin) (white, 3-pin) Console Ground...
- Page 12 Repeat for the other arm. Should you have any questions or concerns in making this adjustment, please contact your local service provider or contact Octane Fitness Customer Service at 1.888.OCTANE4, ext. 1. 8. Place top cover a Align top cover (C) on top of main housing. Hold the back edge...
- Page 13 Tighten the leveler nut against the frame for each leveler. Note: If you move your Q47e/Q47ce, you may need to adjust the levelers to make sure your product is level with the floor. CAUTION : If the unit is not level, it may not function properly.
- Page 14 n o t e s...
- Page 15 n o t e s...
- Page 16 © 2008 Octane Fitness, LLC ™ . All rights reserved. Octane Fitness, DedicatedLogic, Fuel Your Life, HeartLogic, Now-Zone and X-Mode are registered trademarks of Octane Fitness. Any use of these trademarks, without the express written consent of Octane Fitness, is forbidden.
