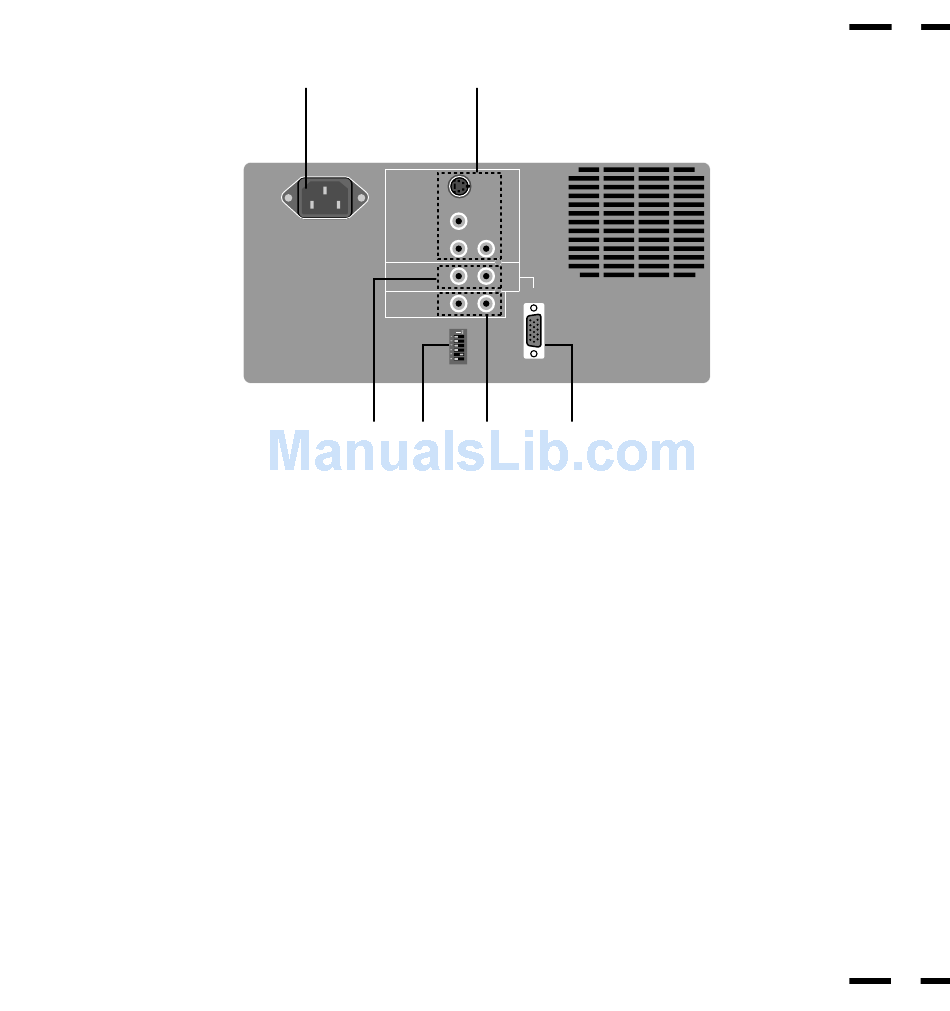

Terminal Board

12 AC Input
Connect the supplied power cord' s three-pin plug here.
13 VIDEO 1
VIDEO 1 IN (RCA type) ........ Connect a VCR or laser disk player here to
display the video.
S-VIDEO 1 IN ........................ Here is where you connect S-Video input
from an external source like a VCR.
AUDIO R IN .......................... This is your right channel audio input for
stereo sound.
AUDIO L IN (MONO) ........... This is your left channel audio input for
stereo sound coming from video equipment
or audio system. It also serves as the mono
audio input.
14 RGB AUDIO
AUDIO R IN .......................... This is where you connect RGB right audio
output from a computer or another RGB
source.
AUDIO L IN(MONO) ............ This is where you connect RGB left audio
output from a computer or another RGB
source.
12 13
AC-IN
VIDEO1
AUDIO1
R
IN
RGB
R
AUDIO IN
MONITOR
R
OUT
DIP SW
14 16
L
( MONO )
L
( MONO )
RGB 1
L
15 17
15 MONITOR OUT (R/L)
Connect additional external speakers here to listen to audio coming from
your computer, Video or S-Video audio inputs (R/L).
16 DIP SWITCH
This switch sets Sync. Control, Power Management, Remote Control ON/
OFF and OSM system Control ON/OFF. See page xx for more details.
17 RGB 1 Input(D-Sub mini 15 pin)
Connect your PC or other RGB equipment such as IBM or compatible
computers.
