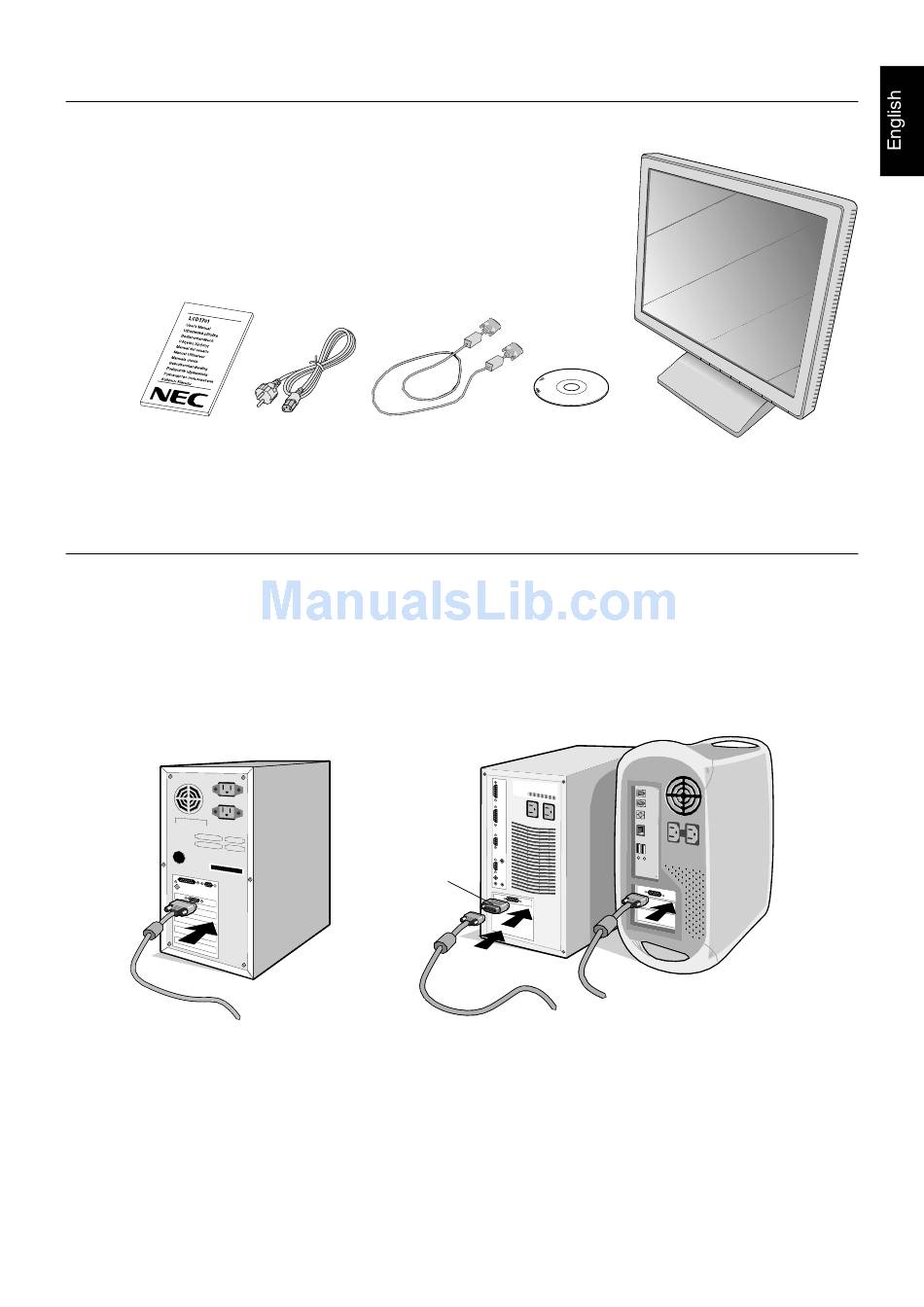

Your new NEC LCD monitor box* should contain the following:
• LCD1701 monitor with tilt base
• Power Cord
• Video Signal Cable
• User's Manual
• CD ROM (includes complete User's Manual in PDF format).
To see the User's Manual, Acrobat Reader 4.0 must be installed on your PC.
* Remember to save your original box and packing material to transport or ship the monitor.

Quick Start

To attach the LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. Remove cable cover.
3. For PC: Connect the 15-pin mini D-SUB of the appropriate signal cable to the connector for the display card in your
system (Figure A.1). Tighten all screws.
For Mac: Connect the LCD1701 Macintosh cable adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB end
of the appropriate signal cable to the LCD1701 Macintosh cable adapter (Figure B.1). Tighten all screws.
Figure A.1
4. Connect the 15-pin mini D-SUB of the video signal cable to the appropriate connector on the back of the monitor
(Figure C.1).
5. Connect one end of the power cord to the LCD1701 monitor and the other end to the power outlet. Place the video signal
cable and AC power cord under the cable cover (Figure C.1). Replace cable cover.
NOTE: Adjust the position of the cable under the cable cover to avoid damage for cable or monitor.
As indicated (Figure C.1) please adjust the cables to place the ferrite core and stopper above the cubic cover.
NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
Macintosh
Cable Adapter
(not included)
English-3
Macintosh G3 and G4
do not need a Macintosh
cable adapter
Figure B.1
