Controls

OSM (On-Screen-Manager) Controls

The OSM controls on the front of the monitor function as follows:
To access OSM press any of the control buttons (<, >, -, +, EXIT).
Control Menu
EXIT Exits the OSM controls.
Exits to the OSM main menu.
< / > Moves the highlighted area left/right to select control menus.
Moves the highlighted area up/down to select one of the controls.
- +
/ Moves the bar left/right to increase or decrease the adjustment.
SELECT Active Auto Adjust function. Enter the OSM controls.
Enter the OSM sub menu.
RESET Resets the highlighted control menu to the factory setting.
NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the
RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS
Adjusts the overall image and background screen brightness.
CONTRAST
Adjusts the image brightness in relation to the background.

AUTO ADJUST

Adjusts the image displayed for non-standard video inputs.
Auto Adjust
Automatically adjusts the Image Position, the H. Size and Fine setting.
Position Controls
LEFT/RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN/UP
Controls Vertical Image Position within the display area of the LCD.
H. SIZE
Adjusts the horizontal size by increasing or decreasing this setting.

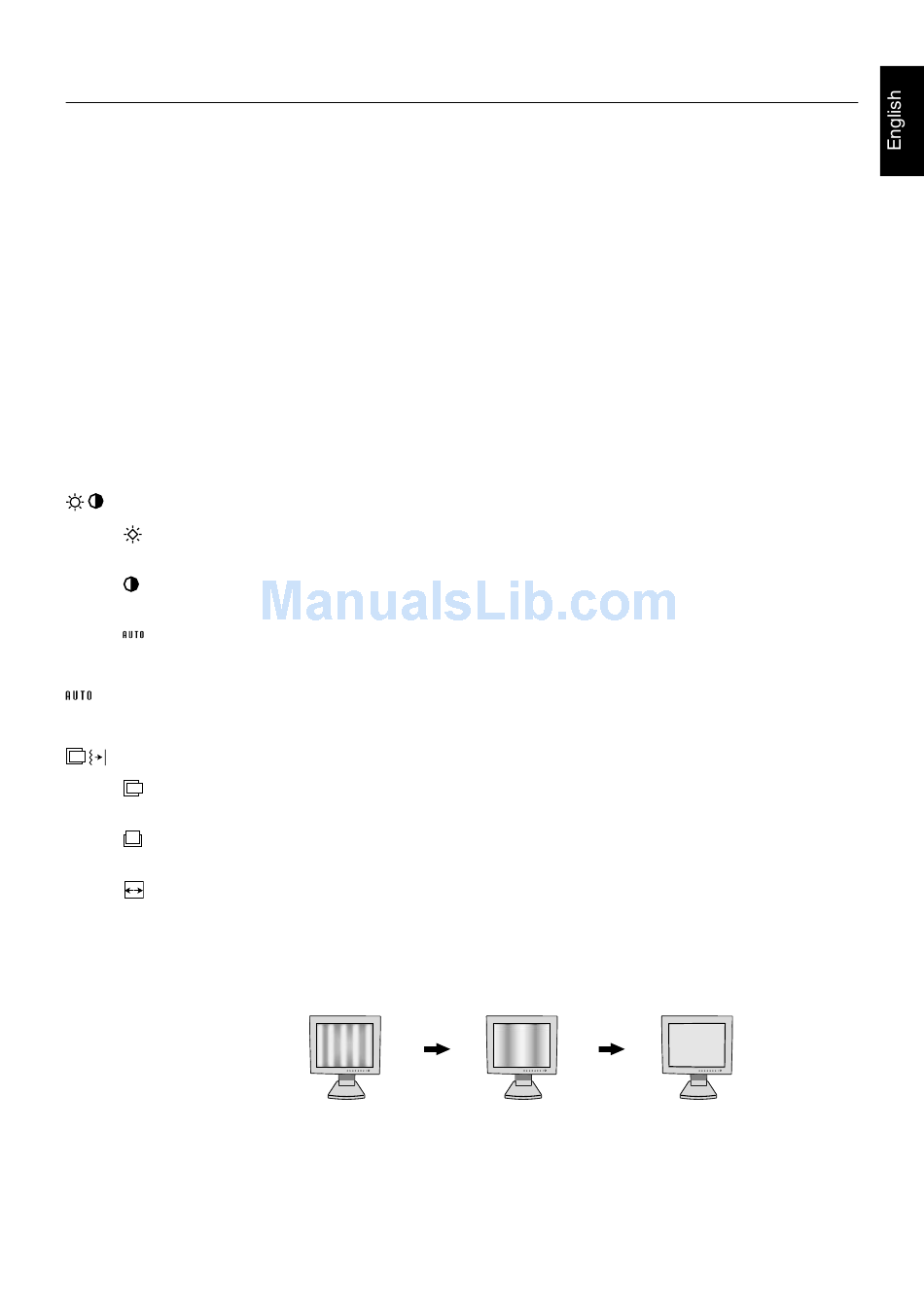

Should the "AUTO Adjust function" do not give you a satisfactory picture setting, a further tuning can be
performed using the "H.Size" function (dot clock). For this a Moiré test pattern could be used. This function
may alter the width of the picture. Use Left/Right Menu to center the image on the screen. If the H.Size is
wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.
When H.SIZE value is
wrong.
English-7
When H.SIZE value is When H.SIZE value is
improved. correct.
