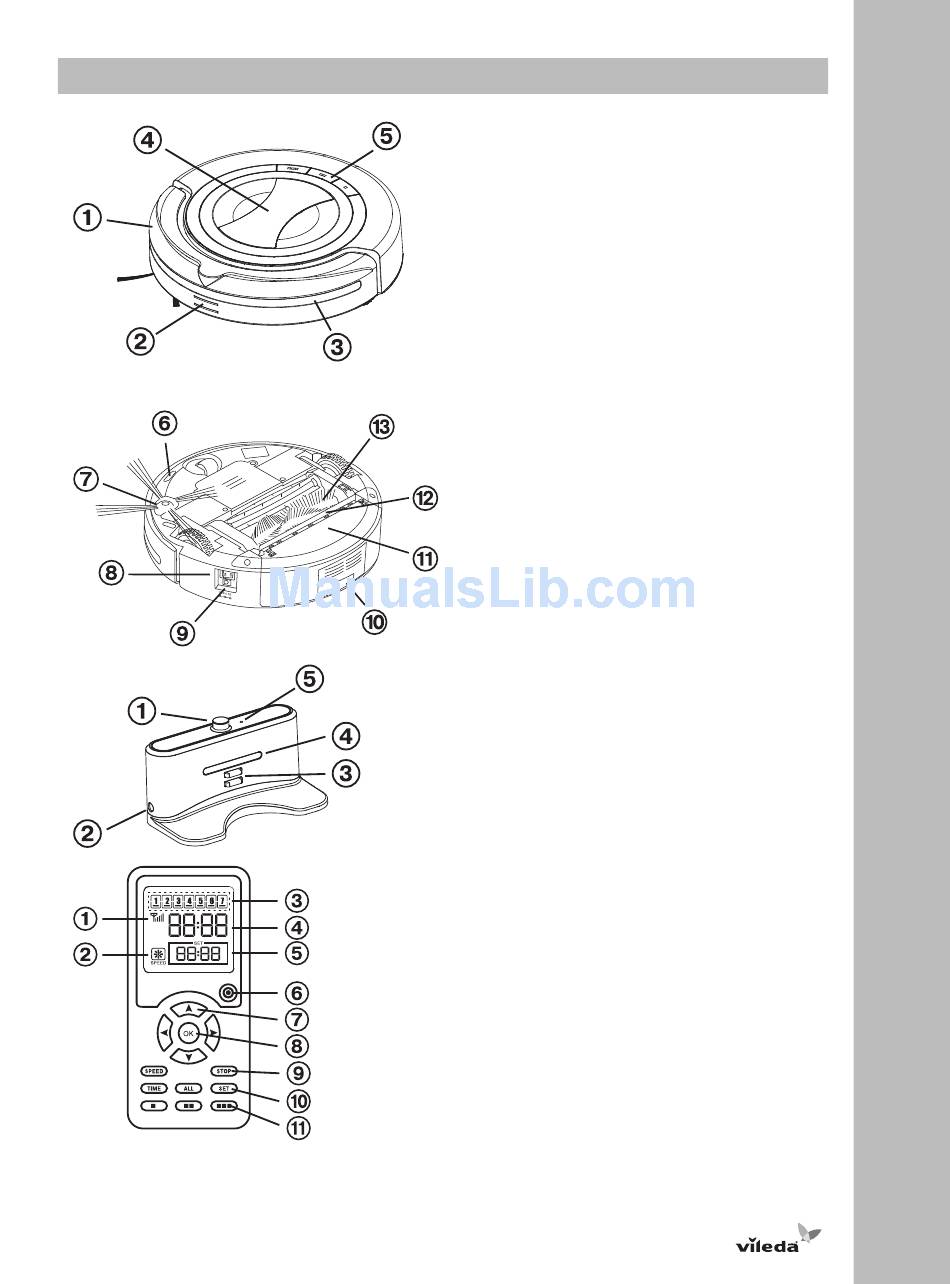

Product Anatomy

1. Front Bumper
2. Charging Contacts
3. Collision Sensors
4. Handle
5. Clean Mode Buttons
6. Cliff Sensors
7. Side Brush
8. Power Switch
9. Battery Charger Socket
10. Removable Dustbin
11. Filter
12. Vacuum Inlet
13. Main Brushes
1. Power Indicator
2. Charging Station Socket
3. Charging Contacts
4. Docking Sensor
5. Sync Button
1. Link Indicator
2. Speed Indicator
3. Week Display (1=Monday,
7=Sunday)
4. Clock Time Display
5. Scheduling Time Display
6. Power Button
7. Arrow Keys
8. OK Button
9. Control Buttons
10. Scheduling Buttons
11. Clean Mode Buttons
