Quick Start - NEC MultiSync LCD175VXM+ User Manual

Contents

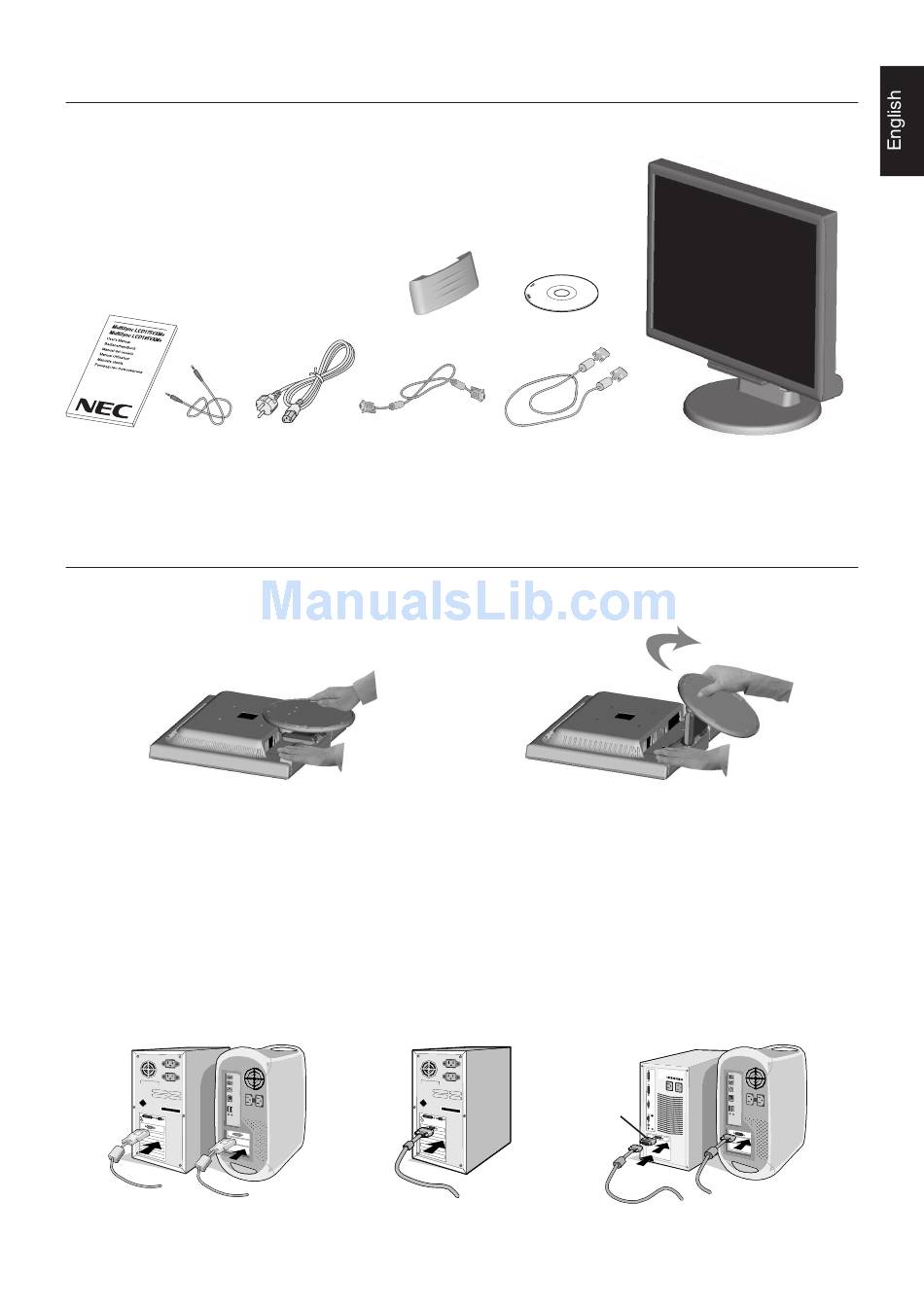

Your new NEC MultiSync LCD monitor box* should contain the following:
• MultiSync LCD monitor with tilt base
• Audio Cable
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Video Signal Cable (DVI-D to DVI-D) (LCD195VXM+ only)
• User's Manual
• CD-ROM
• Cable management cover
Audio Cable
User's Manual
* Remember to save your original box and packing material to transport or ship the monitor.

Quick Start

To pull the stand, follow these instructions:
1. Place monitor face down on a non-abrasive surface (Figure 1).
2. Pull the stand holding the monitor with the other hand until the stand clicks (Figure 2).
NOTE: Handle with care when pulling the stand.
Figure 1
NOTE: Reverse this procedure if you need to re-pack the monitor.
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI-D signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to the computer. Attach the 15-pin mini
D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
Figure A.1
Cable management
cover
Power Cord 15-pin mini D-SUB
male to 15-pin mini
D-SUB male
Figure A.2
English-3
CD-ROM
DVI-D to DVI-D
(LCD195VXM+ only)
Figure 2
Macintosh
Cable Adapter
(not included)
Figure A.3
MultiSync LCD monitor
