Controls Overview

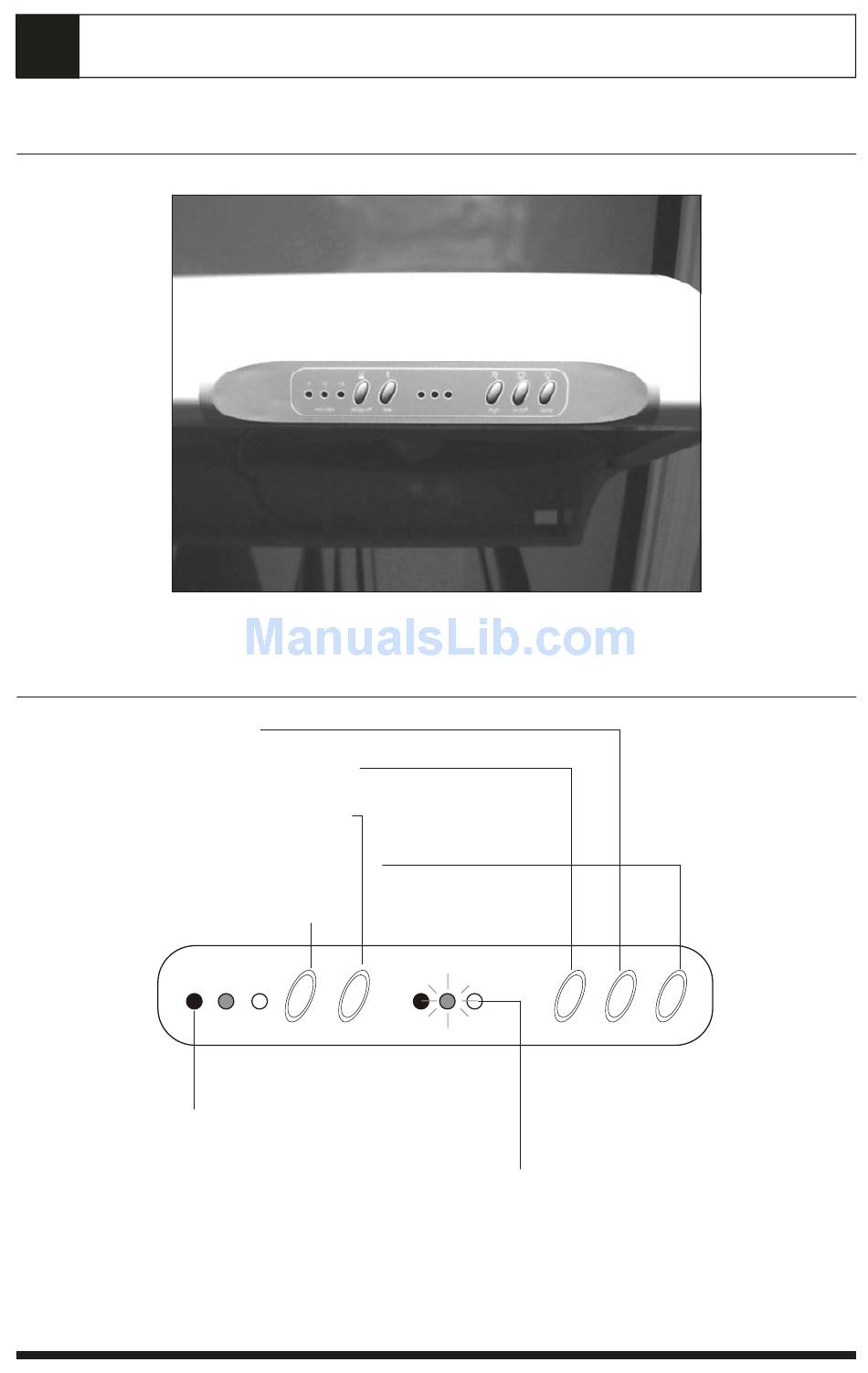

Zephyr Model AK2100 & AK2136
Touch Control Module
(A) turns blowers on/ off
(B) adjust to higher speed level (1 to 6)
(C) adjust to lower speed level (6 to 1)
(D) turns lights on/off and dim (night light)
(E) shuts off hood in 5, 10 or 15 minutes
5
(F) Indicator: indicates 5, 10, or 15 minutes delay when lit
CONTROLS
1 0 1 5
minutes delay off low
1 2 3
(G) Indicator: indicates level of blower speed from 1 to 6
Level 1(low) -Indicator 1 flashing
Level 2 - Indicator 1 lit
Level 3 - Indicator 2 flashing
Level 4 - Indicator 2 lit
Level 5 - Indicator 3 flashing
Level 6 (high) - Indicator 3 lit
high on/off lamp
