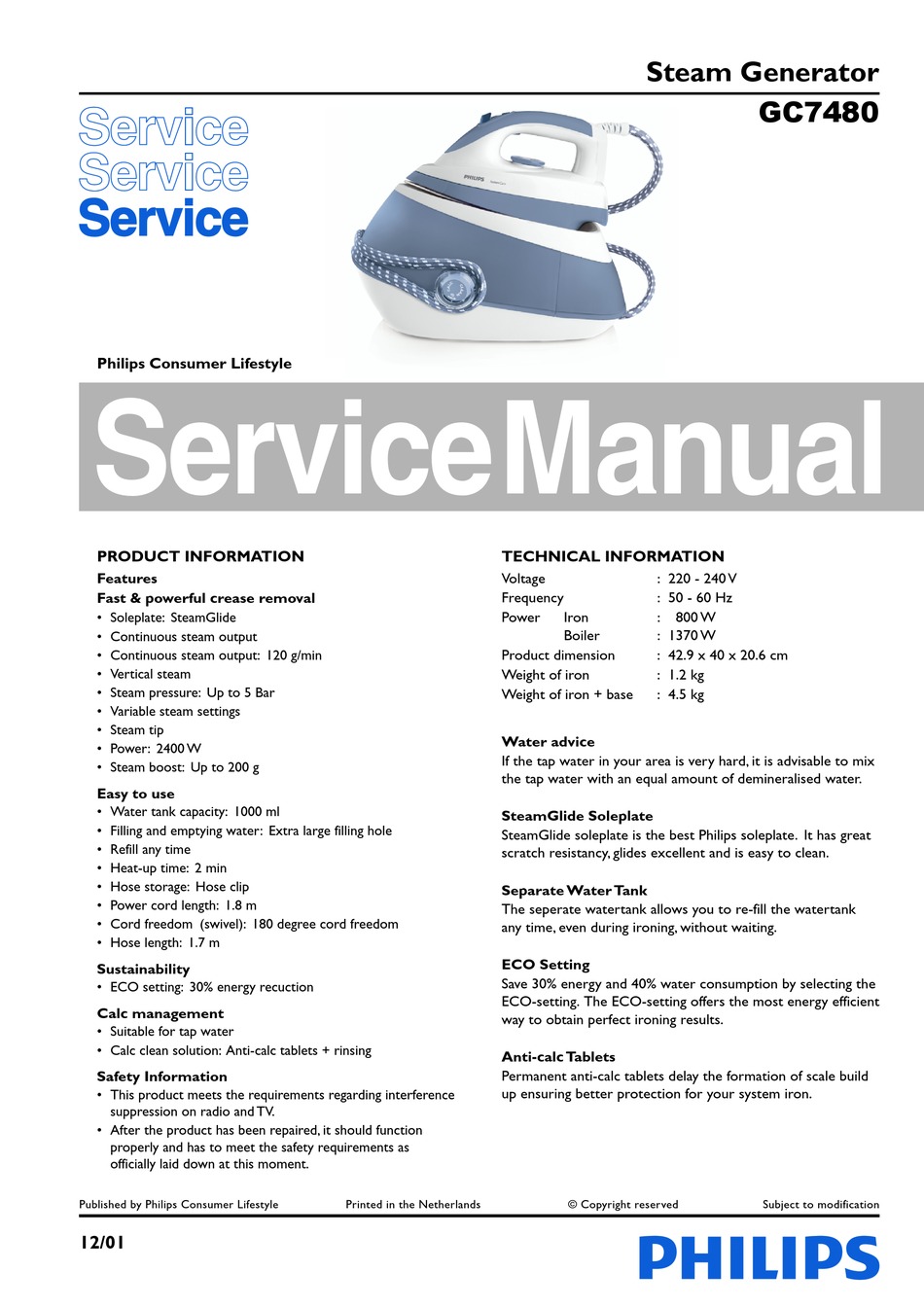

Philips GC7480 Service Manual

Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
Features
Fast & powerful crease removal
• Soleplate: SteamGlide
• Continuous steam output
• Continuous steam output: 120 g/min
• Vertical steam
• Steam pressure: Up to 5 Bar
• Variable steam settings
• Steam tip
• Power: 2400 W
• Steam boost: Up to 200 g
Easy to use
• Water tank capacity: 1000 ml
• Filling and emptying water: Extra large filling hole
• Refill any time
• Heat-up time: 2 min
• Hose storage: Hose clip
• Power cord length: 1.8 m
• Cord freedom (swivel): 180 degree cord freedom
• Hose length: 1.7 m
Sustainability
• ECO setting: 30% energy recuction
Calc management
• Suitable for tap water
• Calc clean solution: Anti-calc tablets + rinsing
Safety Information
• This product meets the requirements regarding interference
suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
12/01
TECHNICAL INFORMATION
Voltage
Frequency
Power
Product dimension
Weight of iron
Weight of iron + base
Water advice
If the tap water in your area is very hard, it is advisable to mix
the tap water with an equal amount of demineralised water.
SteamGlide Soleplate
SteamGlide soleplate is the best Philips soleplate. It has great
scratch resistancy, glides excellent and is easy to clean.
Separate Water Tank
The seperate watertank allows you to re-fill the watertank
any time, even during ironing, without waiting.
ECO Setting
Save 30% energy and 40% water consumption by selecting the
ECO-setting. The ECO-setting offers the most energy efficient
way to obtain perfect ironing results.
Anti-calc Tablets
Permanent anti-calc tablets delay the formation of scale build
up ensuring better protection for your system iron.
Printed in the Netherlands
Steam Generator
: 220 - 240 V
: 50 - 60 Hz
Iron : 800 W
Boiler : 1370 W
: 42.9 x 40 x 20.6 cm
: 1.2 kg
: 4.5 kg
© Copyright reserved
GC7480
GC7540
Subject to modification
