Philips GC7430 Service Manual

Philips Consumer Lifestyle
Service Manual

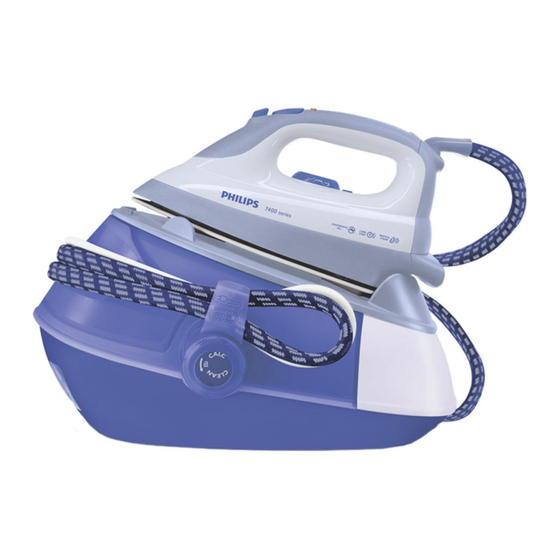

PRODUCT INFORMATION

Features
Iron
- Steam Glide soleplate
- Steam rate (Max): 120 g/min
- Steam trigger with lock
- Steam hose length: 1.65 m
- Steam boost: 150 g/min
Stand
- Inox boiler
- Boiler pressure: 4.5 bar
- Fixed water tank volume: 1.0 L
- Cord length: 2.0 m
- Flex & hose-cord storage hook
- Easy rinse
- Electronic variable steam control
- Tank empty light
- Boiler ready light
- Anti Calc cartridge in water tank
- ECO steam setting
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down as this moment.
Published by Philips Consumer Lifestyle
11/03

TECHNICAL INFORMATION

Voltage
Frequency
Power
Dimension (F-box)
Weight (with packing)
Water advice
If the tap water in your area is very hard, it is advisable to mix
the tap water with an equal amount of demineralised water.
Easy to rinse
The new design of the rinse cap makes it very easy to rinse
the boiler regularly. Simply unscrew the cap and pour out the
"dirty" water into the sink.
No hassle with coins, extra tubes or anything of this sort.
Fixed water tank
The fi xed water tank that is incorporated into the stand allows
re-fi lling anytime during ironing. Since water is not re-fi lled
directly into the boiler, there is no waiting time for boiler to
cool down.
Printed in the Netherlands
Steam Generator
: 220 - 240 V
: 50 - 60 Hz
Iron : 800 W
Boiler : 1370 W
: 350 x 350 x 250 mm (L x W x H)
: 6.4 kg
© Copyright reserved
GC7430
Subject to modification
