SeCTIoN 9: eNGINe dISASSeMblY

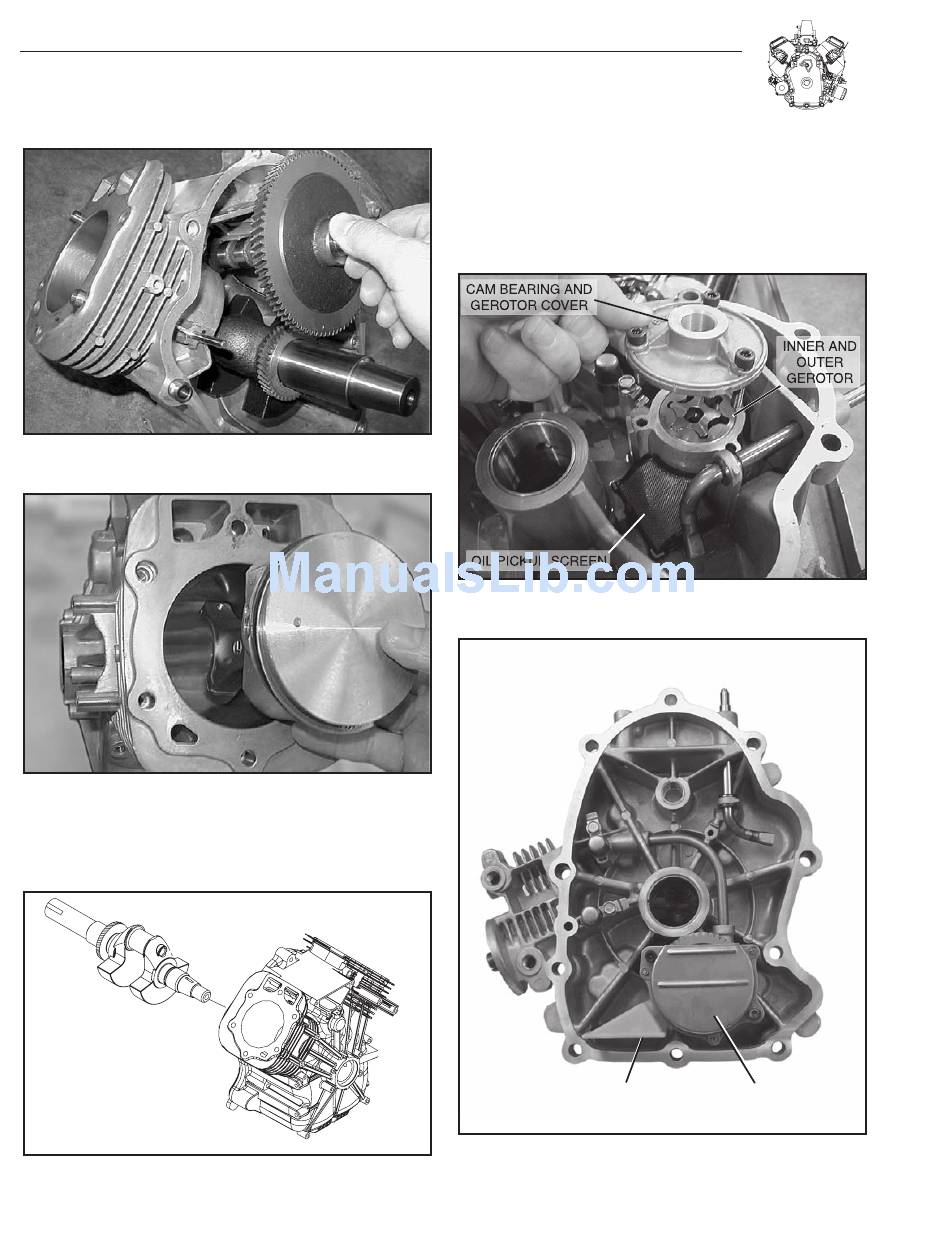

Figure 9-2. Remove Camshaft
Figure 9-3. Remove Pistons and Connecting Rods
5. Repeat for remaining cylinder.
6. Remove crankshaft (Figure 9-4).
Figure 9-4. Remove Crankshaft
7. Remove oil pump from crankcase cover.
Note: Clean all surfaces of gasket material. Remove
oil seals and thoroughly clean components in solvent.
Organize components, keeping parts which are assem-
blies together.
Figure 9-5. Remove Oil Pump (Vertical Shaft Engine)
PICK-UP SCREEN
Figure 9-6. Remove Oil Pump (Horizontal Shaft Engine)
9-2
OIL PUMP
