6. Install rotating screen.
a. Torque screws to 1.9 Nm (17 in. lbs).
7. Install finger guard.
a. If engine is equipped with hex head screws, torque screws
to 4.5 Nm (40 in. lbs).
b. If engine is equipped with finger screws, tighten screws
by hand to approximately 1.3 Nm (12 in. lbs.).
FINGER GUARD
1
ROTATING SCREEN
2
INTAKE MANIFOLD
3
ASSEMBLY
OIL COOLER
4
5 BLOWER HOUSING
UPPER WRAPPER
6
7
LOWER WRAPPER
8
VALVE COVER
3
4

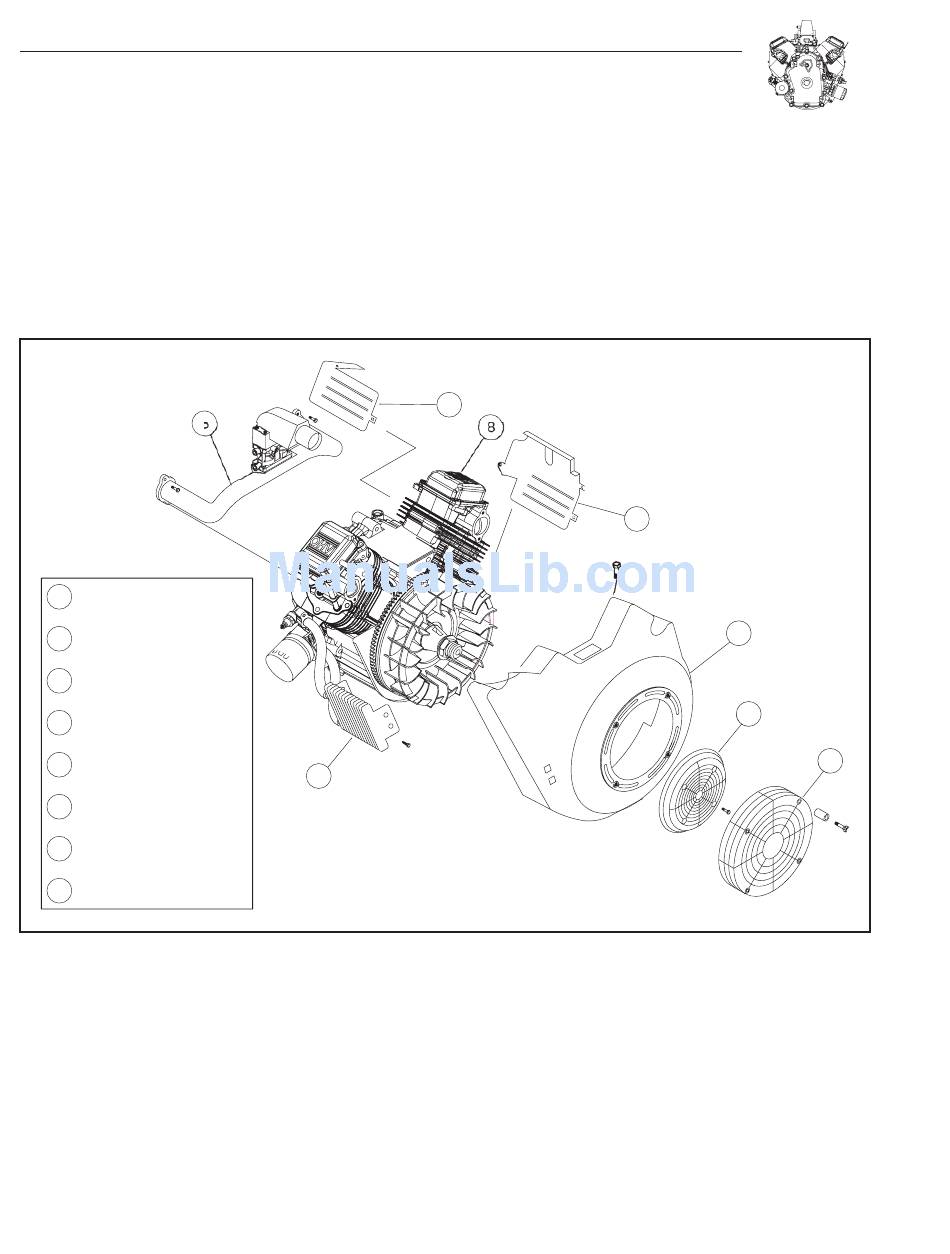

Figure 5-18. General Assembly
8. Assemble air cleaner.
9. Make Static and Dynamic Governor adjustments as out-
lined on Page 4-3.
6
8
5-6
7
5
2
1
