- Page 1 GTV990 Engine Parts Manual Model: 005057-0...

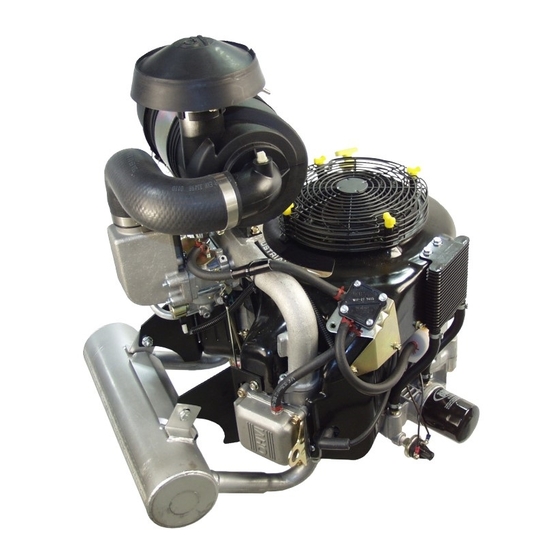

- Page 2 GTV990 OHVI SERIES ENGINE Model 005057-0...
- Page 3 Model 005057-0 GTV990 OHVI SERIES ENGINE ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 1 0C5730B ASSY,CRANKCASE VS W/SLEEVE 38 0D4788 PLUG, DRAIN 2 0E9843 SEAL, 38 I.D. CRANKSHAFT 39 0C2993 SEAL, GOVERNOR SHAFT 3 090388 SCREW, HHTT M6-1.0 X 12 YC 40 0E9842 SEAL, 42 I.D. CRANKSHAFT 4 0C5372 ASSEMBLY, BREATHER 41 0C57320SRV 1 ASSEMBLY, SUMP WITH SLEEVE 5 0C3005 GASKET, BREATHER COVER 42...
- Page 4 GTV990 OHVI SERIES ENGINE Model 005057-0 159A 159B TO #109 TO #95 TO #166 "B" TO #1 TO #138 TO #109 159C "D" TO #168 "B" "A" "B" 84 153 "D" TO VALVE "A" COVER TO #138 "B" 178 177 TO #138 TO #168...
- Page 5 Model 005057-0 GTV990 OHVI SERIES ENGINE ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 79 0E7743 ASSY, IGNITION COIL 270mm CYLINDER 1 1 32 0E3052 MANIFOLD,INTAKE VERT 2BBL CARB 80 0D6147 SCREW, HHFC M6-1.0 X 10mm 1 33 0E4190 CLAMP, 3/16” COATED CABLE 81 047411 SCREW, HHC M6-1.0 X 16 1 34 0F5579 SCREW, HHC W/SHLDR M5-0.8 X 20 82 022097 WASHER, LOCK M6 1 35 0D8559 ROD, CHOKE 83...
- Page 6 GTV990 OHVI SERIES ENGINE Model 005057-0...
- Page 7 Model 005057-0 GTV990 OHVI SERIES ENGINE ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION air ClEaNEr assEMblY MuFFlEr MouNTiNG 2 00 0F7642 CLEANER, AIR WITH MOUNTING BASE 2 15 0E3502A SUPPORT, MUFFLER RH 2 01 0E3557 FILTER, AIR PRIMARY 2 16 0E3502B SUPPORT, MUFFLER LH 2 02 0E3656 FILTER, AIR SAFETY 2 17 039253 SCREW HHC M8-1.25 X 20 G8.8 2 03...
- Page 8 GTV990 OHVI SERIES ENGINE Model 005057-0 oil rEliEF KiT — 0D40150srV hEaD assEMblY KiT - CYl #1 — 0D8675asrV PART NO. QTY. DESCRIPTION 0C3009 SPRING, OIL RELIEF PART NO. QTY. DESCRIPTION 0C3010 BALL, 1/2D OIL RELIEF 0C2229 VALVE, INTAKE 0C3011 COVER, OIL RELIEF 0C2976 SCREW, HHFC M8-1.25 X 65 0C2978 GASKET, CYLINDER HEAD 0C2979 GASKET, VALVE COVER suMP KiT assEMblY —...
