HIKVISION DS-7004HI Technical Manual

Ds-7000hi series
Hide thumbs Also See for DS-7004HI:

Advertisement

Quick Links

Download this manual See also: User Manual
Hikvision Technical Manual
DS-7000HI Series Net DVR
Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-7004HI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-7004HI

Summary of Contents for HIKVISION DS-7004HI

  • Page 1 Hikvision Technical Manual DS-7000HI Series Net DVR Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
  • Page 3 Hikvision Technical Manual Contents 1. Overview 2. Model Description 3. Features 4. Specifications ©2006 – 2010 by HIKVISION. All rights reserved.

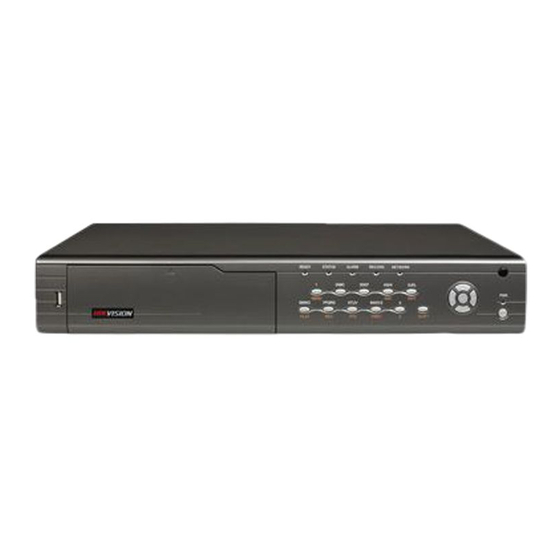

  • Page 4 (DVS). It can work standalone, also be used to build up a powerful surveillance network. DS-7000HI series device can be widely used in bank, telecommunication, transportation, factories, warehouse, irrigation, etc. DS-7000HI Front Panel DS-7004HI Rear Panel DS-7016HI Rear Panel ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 5: Model Description

    Hikvision Technical Manual 2. Model Description DS-7004HI: 4-ch video input and 4-ch audio input. One VGA output. 1-ch composited video output. 4-ch video loop out. DS-7008HI: 8-ch video input. One VGA output. 1-ch video output. 8-ch video loop out. DS-7016HI: 16-ch video input and 4-ch audio input. One VGA output. 1-ch composited video output.
  • Page 6 Compressed video and audio are synchronous. Either composited stream or  video-only stream can be selected. Supports video loop out.  Supports 4CIF (DS-7004HI), 2CIF (DS-7008HI & DS-7016HI) resolution.  Local Functions 3.2.1 Recording  Supports multiple recording types, including real time, manual record, motion detection, external alarm, motion &...
  • Page 7 Supports OSD and changeable OSD position.  Supports LOGO and changeable LOGO position.  Supports multiple upgrade modes, including FTP, USB and CD.  Supports writing player when burning CD.  Supports Scaler.  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 8 Hikvision Technical Manual Automatically recovery from abnormal conditions.  Network SDK and client demo source code available  ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 9: Specifications

    2 IDE interfaces, they can support 4 IDE HDD and each HDD can support interface 2000GB or 2 HDD +1 IDE CD-RW/DVD-RW 1 USB interface, USB1.1, can support USB flash memory, USB HDD, USB USB interface CD-RW/DVD-RW. ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 10 Working -10℃~＋55℃ temperature Working 10%~90% humidity Size 14.25 inch standard (440mm*390mm*70mm) Weight ≤8Kg (without HDD and CD-R/W) PAL: 176×144(QCIF), 352×288(CIF), 704× 288(2CIF), 528×384(DCIF), 704×576(4CIF); NTSC: 176×120(QCIF), 352× 240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF). ©2006 – 2010 by HIKVISION. All rights reserved.
