Livestrong LS 6.0R Service Manual

Hide thumbs Also See for LS 6.0R:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

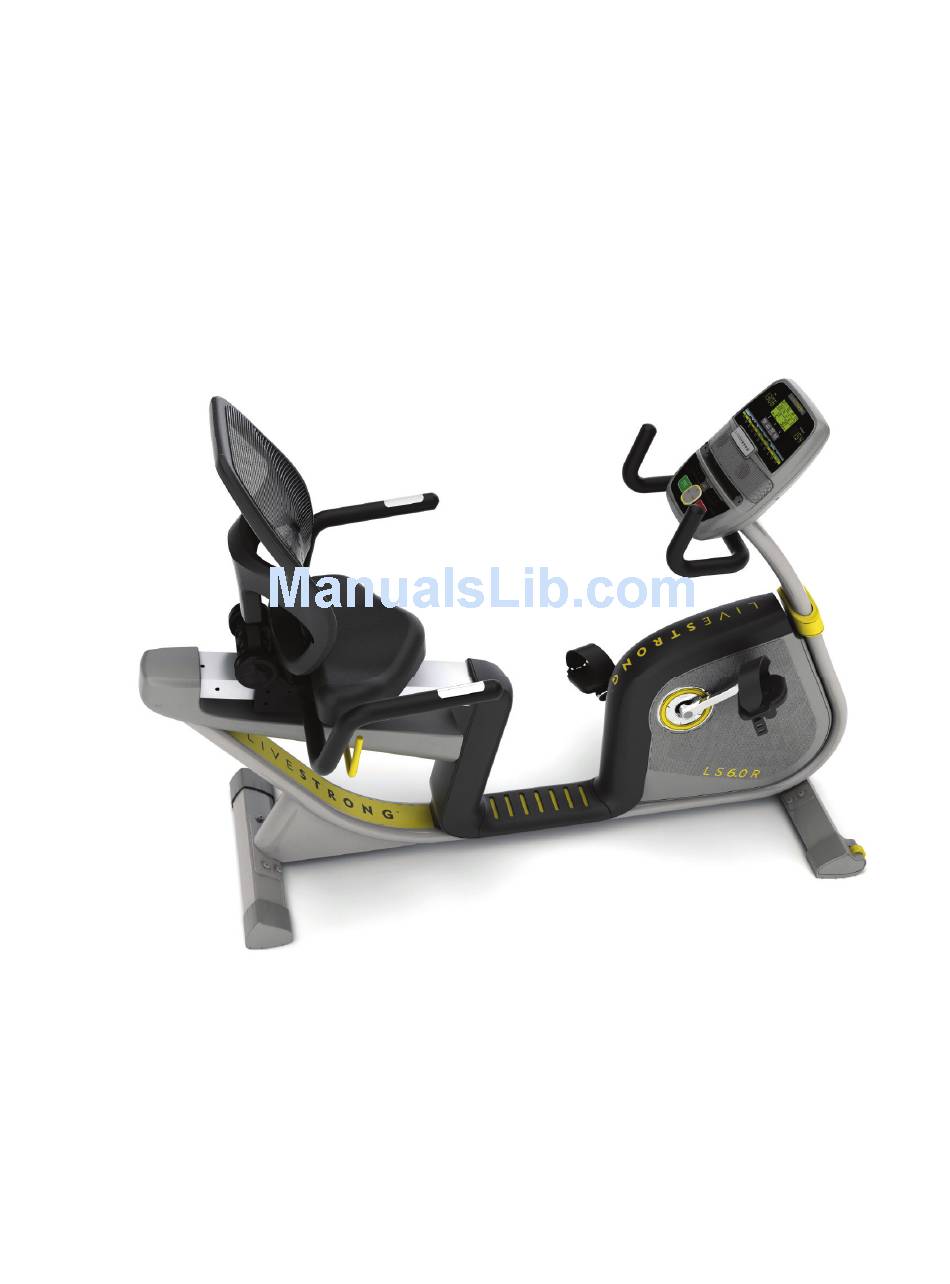

LS 6.0R
SERVICE MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS 6.0R and is the answer not in the manual?

Questions and answers

T.Wood
February 13, 2025

Where do I lubricate for a smooth pedal

0
1 comments:
Mr. Anderson
May 14, 2025

The Livestrong LS 6.0R should be lubricated on its moving parts to ensure smooth operation.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Livestrong LS 6.0R

Summary of Contents for Livestrong LS 6.0R

  • Page 1 LS 6.0R SERVICE MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: SERIAL NUMBER LOCATION CHAPTER 2: CONSOLE OVERLAY AND WORKOUT DESCRIPTION Console Description Display Windows Description Getting Started & Selecting a Workout CHAPTER 3: TROUBLESHOOTING Troubleshooting - No Power to the Console Troubleshooting – Speed Do Not Display Troubleshooting –...

  • Page 3: Chapter 1: Serial Number Location

    CHAPTER 1: Serial Number Location The serial number is located on the front stabilize tube.

  • Page 4: Chapter 2: Console Overlay And Workout Description

    CHAPTER 2: Console Overlay and Workout Description 2.1 CONSOLE DESCRIPTION...

  • Page 5: Display Windows Description

    2.2 DISPLAY WINDOWS DESCRIPTION...

  • Page 6: Getting Started & Selecting A Workout

    2.3 GETTING STARTED & SELECTING A WORKOUT GETTING STARTED 1) Check to make sure no objects are nearby that will hinder the movement of the exercise bike. 2) Plug in the power cord. 3) You have the following options to start your workout: A) QUICK START UP Simply press START to begin working out.
  • Page 7 DATE AND CLOCK SETUP (LS5.0U/LS6.0R ONLY) 1) Enter Setup mode: Press and hold the 2 and 4 keys for 3 seconds. 2) Use + / – on the PROGRAMMING BUTTON to change settings and press ENTER to confirm. 3) Settings include: Month, Day, Year, Hour, Minute, and AM/PM. 4) Review settings: You can review your settings at any time while in setup mode.

  • Page 8: Chapter 3: Troubleshooting

    CHAPTER 3: Troubleshooting 3.1 TROUBLESHOOTING – NO POWER TO THE CONSOLE POWER THE CONSOLE 1) SYMPTOM: a. The power switch is in the on position, but the console will not turn on. 2) SOLUTION: a. The outlet the machine is plugged into is functional. Double check that the breaker has not tripped.
  • Page 9 g. Remove the side cover and check to see if the wires are connected well.

  • Page 10: Troubleshooting -Speed Do Not Display

    CHAPTER 3: Troubleshooting 3.2 TROUBLESHOOTING –SPEED DO NOT DISPLAY SPEED DO NOT DISPLAY 1) SYMPTOM: a. The speed value do not display on console 2) SOLUTION: a. Unplug power cord, remove the console and check that all connections to the console are secure and not damaged or pinched.

  • Page 11: Troubleshooting - No Hand Pulse Respond

    CHAPTER 3: Troubleshooting NO HAND PULSE RESPOND 3.3 TROUBLESHOOTING – NO HAND PULSE RESPOND 1) SYMPTOM: a. The console did not display the heart rate during exercise 2) SOLUTION: a. The user has to hold the sensor with both hands. b.

  • Page 12: Troubleshooting -Noise Issues

    CHAPTER 3: Troubleshooting 3.4 TROUBLESHOOTING –NOISE ISSUES NOISE ISSUES 1) SYMPTOM: a. Slapping / thunking / squeaking sound with each footstep. 2) SOLUTION: a. Make sure that the exercise bike is on a level surface. b. Make sure that the console mast is tightly attached to the frame. c.

This manual is also suitable for:

Ls5.0u
