OWNER MANUAL
PROFESSIONAL ACTIVE
NX L24-A
TWO-WAY ARRAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX L24-A and is the answer not in the manual?

Questions and answers

Related Manuals for RCF NX L24-A

Summary of Contents for RCF NX L24-A

  • Page 1 OWNER MANUAL PROFESSIONAL ACTIVE NX L24-A TWO-WAY ARRAY...
  • Page 2 LANGUAGE ENGLISH ITALIANO...

  • Page 3: Safety Precautions

    (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

  • Page 4: Operating Precautions

    RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

  • Page 5: Product Informations

    RCF professional sound. ARRAY The RCF Team always has the performer’s needs at the forefront of the design in order to create new lines of speakers with renewed features, improved sound clarity and definition and even lighter weight systems.

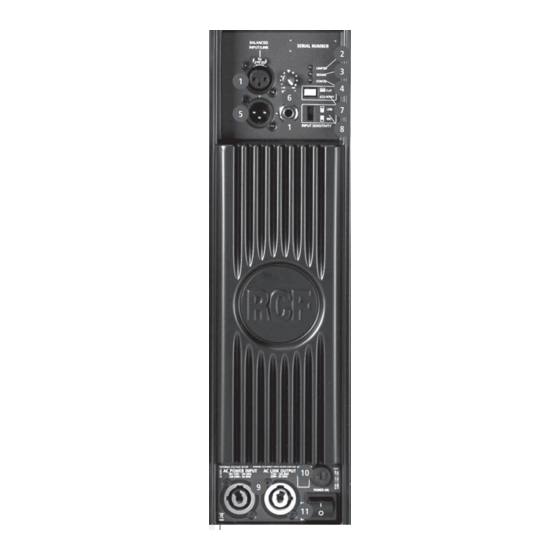

  • Page 6 REAR PANEL JACK/FEMALE XLR INPUTS (BAL/UNBAL). The system accept jack or XLR input connectors. These balanced inputs can be used to connect balanced or unbalanced microphones or audio sources at line level. The balanced connector is connected in parallel and can be used to send the audio signal to other amplified speakers, recorders or supplementary amplifiers.

  • Page 7: Installation

    BEFORE CONNECTING is necessary to change the voltage please call your vendor or authorized RCF SERVICE THE SPEAKER CENTRE. This operation require the substitution of the fuse value and is reserved to an RCF SERVICE CENTRE. BEFORE TURNING ON At this point you can connect the power supply cable and the signal cable, but before...
  • Page 8 INSTALLATION NX L24-A ACCESSORIES p/n 13360278 FLY BAR NX L24-A p/n 13360279 FLY LINK KIT NXL 24-A Accessory to link a second NXL24 to a flying NXL 24-A Sstraight or 2 angles(15°, 20°). p/n 13360280 STACKING KIT 2X NXL 24-A...
  • Page 9 (using POLE MOUNT KIT NXL 24-A) FLOWN MOUNTING Flown dual NXL 24-A at 0° or at 20° (using FLY BAR NX L24-A and FLY LINK KIT NXL 24-A) When two NXL 24-A systems are coupled the BOOST setting is recommended...

  • Page 10: Specifications

    ± SPECIFICATIONS µ ÷ NX L24-A ACOUSTICAL Frequency response 65 - 20 kHz Max SPL 131 dB Horizontal Coverage 120° Vertical Coverage 30° Crossover point TRANSDUCERS Low frequency 4 x 6”, 1.5” v.c. High frequency 2”, 2.5” v.c. AMPLIFIER 1400 Watt...
