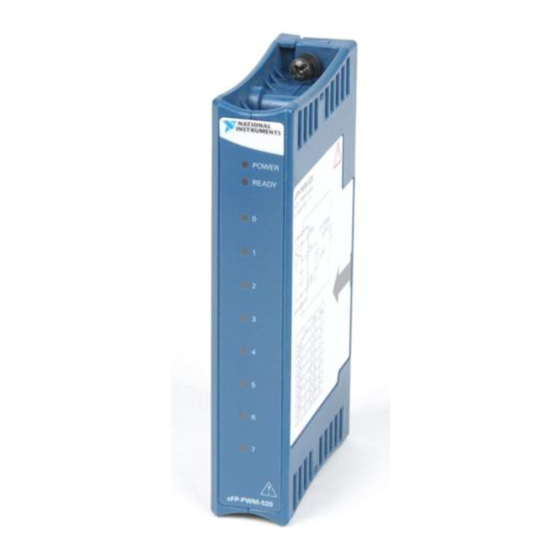

Eight-Channel, 5 V or 10–30 V PWM Output Module
These operating instructions describe how to install and use
the National Instruments FP-PWM-520 and cFP-PWM-520
pulse-width modulation modules (referred to inclusively as the
[c]FP-PWM-520). For details on configuring and accessing the
[c]FP-PWM-520 over a network, refer to the user manual for the
FieldPoint network module you are using.
Features
The [c]FP-PWM-520 is a FieldPoint pulse-width modulation
(PWM) output module with the following features:
•
Eight PWM sourcing output channels
•
0 to 100% duty-cycle capability with 12-bit resolution
•
Short-circuit protection for outputs
•
Outputs source 5 VDC or 10–30 VDC with user-provided
power supply
•
Independent configuration of the output period for each
channel from 1 to 65,535 ms in 1 ms increments
•
On/Off LED indicators
•
250 V
CAT II continuous channel-to-ground isolation,
rms
verified by 2,300 V
•
–40 to 70 °C operation
•
Hot swappable
™
OPERATING INSTRUCTIONS
, 5 s dielectric withstand test
rms
