FIELDPOINT
AND SPECIFICATIONS

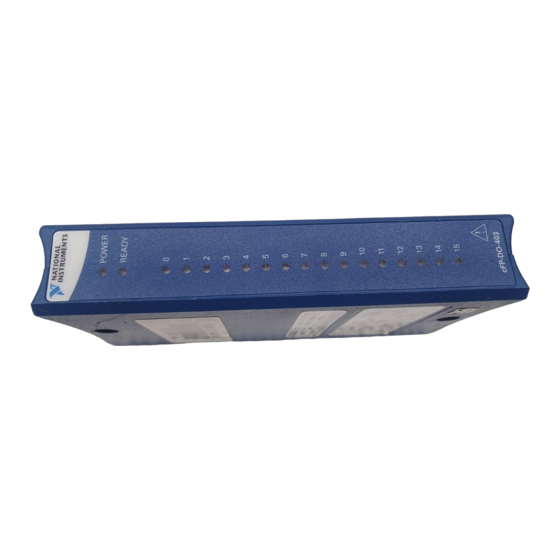

FP-DO-403 and cFP-DO-403
16-Channel, 5 to 30 V Sinking Digital Output Module
These operating instructions describe how to install and use the
National Instruments FP-DO-403 and cFP-DO-403 digital output
modules, referred to inclusively as the [c]FP-DO-403. For
information about configuring and accessing the [c]FP-DO-403
over a network, refer to the user manual for the FieldPoint network
module you are using.
Features
The [c]FP-DO-403 is a FieldPoint digital output module with the
following features:
16 sinking digital output channels
Outputs that sink 2 A per channel, 16 A
Compatible with voltages from 5 to 30 VDC
250 V
CAT II continuous channel-to-ground isolation,
rms
verified by 2,300 V
–40 to 70 °C operation
ON/OFF LED indicators
Hot swappable
Installing the FP-DO-403
The FP-DO-403 mounts on a FieldPoint terminal base (FP-TB-x),
which provides operating power to the module. Installing the
FP-DO-403 onto a powered terminal base does not disrupt the
operation of the bank.
To install the FP-DO-403, refer to Figure 1 and complete the
following steps:
1. Slide the terminal base key to either position X, used for any
module, or position 6, used for the FP-DO-403 module.
OPERATING INSTRUCTIONS
, 5 s dielectric withstand test
rms
2
per module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIELDPOINT cFP-DO-403 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for National Instruments FIELDPOINT cFP-DO-403

  • Page 1 16-Channel, 5 to 30 V Sinking Digital Output Module These operating instructions describe how to install and use the National Instruments FP-DO-403 and cFP-DO-403 digital output modules, referred to inclusively as the [c]FP-DO-403. For information about configuring and accessing the [c]FP-DO-403 over a network, refer to the user manual for the FieldPoint network module you are using.
  • Page 2 (cFP-BP-x), which provides operating power to the module. Installing the cFP-DO-403 onto a powered backplane does not disrupt the operation of the bank. To install the cFP-DO-403, refer to Figure 2 and complete the following steps: 1. Align the captive screws on the cFP-DO-403 with the screw holes on the backplane.
  • Page 3 1 cFP I/O Module 2 Captive Screws 3 cFP Controller Module Figure 2. Installing the cFP-DO-403 Wiring the [c]FP-DO-403 The FP-TB-x terminal base has connections for each FP-DO-403 output channel and for an external supply to power field devices. The cFP-CB-x connector block provides the same connections for the cFP-DO-403.
  • Page 4 Table 1 lists the terminal assignments for the signals associated with each channel. Terminal assignments and wiring diagrams are also listed on the side panel of the cFP-DO-403 and under the slide-in card on the front of the FP-DO-403 module.
  • Page 5 [c]FP-DO-403, wire your application as shown in Figure 4. Install a 2 A maximum, fast-acting fuse (F2A 250V) in series with each load as shown. [c]FP-DO-403 Figure 4. Wiring for High-Current Applications © National Instruments Corp. 2 A Max User-Supplied Fuse Load...
  • Page 6: Digital Output Circuit

    Digital Output Circuit The [c]FP-DO-403 digital output channels are optically isolated from the rest of the FieldPoint bank. In the ON state, a transistor is turned on between the V C and COM terminals). In the OFF state, this transistor is turned off, allowing only a small leakage current to flow.
  • Page 7: Status Indicators

    The [c]FP-DO-403 has two green status LEDs, POWER and READY. After you insert the FP-DO-403 into a terminal base or the cFP-DO-403 into a backplane and apply power to the connected network module, the green POWER indicator lights and the [c]FP-DO-403 informs the network module of its presence.
  • Page 8 250 V Measurement Category II continuous isolation, verified by 2,300 V , 5 s dielectric withstand test. The [c]FP-DO-403 provides double insulation (compliant with IEC 61010-1) for working voltages of 250 V published by UL and IEC) require the use of double insulation between hazardous voltages and any human-accessible parts or circuits.
  • Page 9: Safety Guidelines For Hazardous Locations

    Class I, Division 2. For Zone 2 applications, install the FieldPoint Caution system in an enclosure rated to at least IP 54 as defined by IEC 60529 and EN 60529. © National Instruments Corp. ni.com/certification , search by model [c]FP-DO-403...
  • Page 10: Specifications

    Physical Characteristics Indicators ... Green POWER and Weight FP-DO-403 ... 140 g (4.8 oz) cFP-DO-403 ... 110 g (3.7 oz) [c]FP-DO-403 II 3G and is suitable for use in Zone 2 (0.12 V drop at 1 A) at –40 to 60 °C 12 A at 60 to 70 °C...
  • Page 11 Humidity ... 10 to 90% RH, Maximum altitude... 2,000 m; at higher altitudes, Pollution Degree ... 2 Shock and Vibration These specifications apply only to the cFP-DO-403. NI recommends Compact FieldPoint if your application is subject to shock and vibration. Operating vibration, random (IEC 60068-2-64)...
  • Page 12 Certification column. Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers.
  • Page 13: Mechanical Dimensions

    Figure 6 shows the mechanical dimensions of the FP-DO-403 installed on a terminal base. Dimensions are given in millimeters [inches]. If you are using the cFP-DO-403, refer to the Compact FieldPoint controller user manual for the dimensions and cabling clearance requirements of the Compact FieldPoint system.
  • Page 14: Where To Go For Support

    Go to ni.com/support and troubleshooting information. National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at the calling instructions or dial 512 795 8248.
  • Page 15 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
