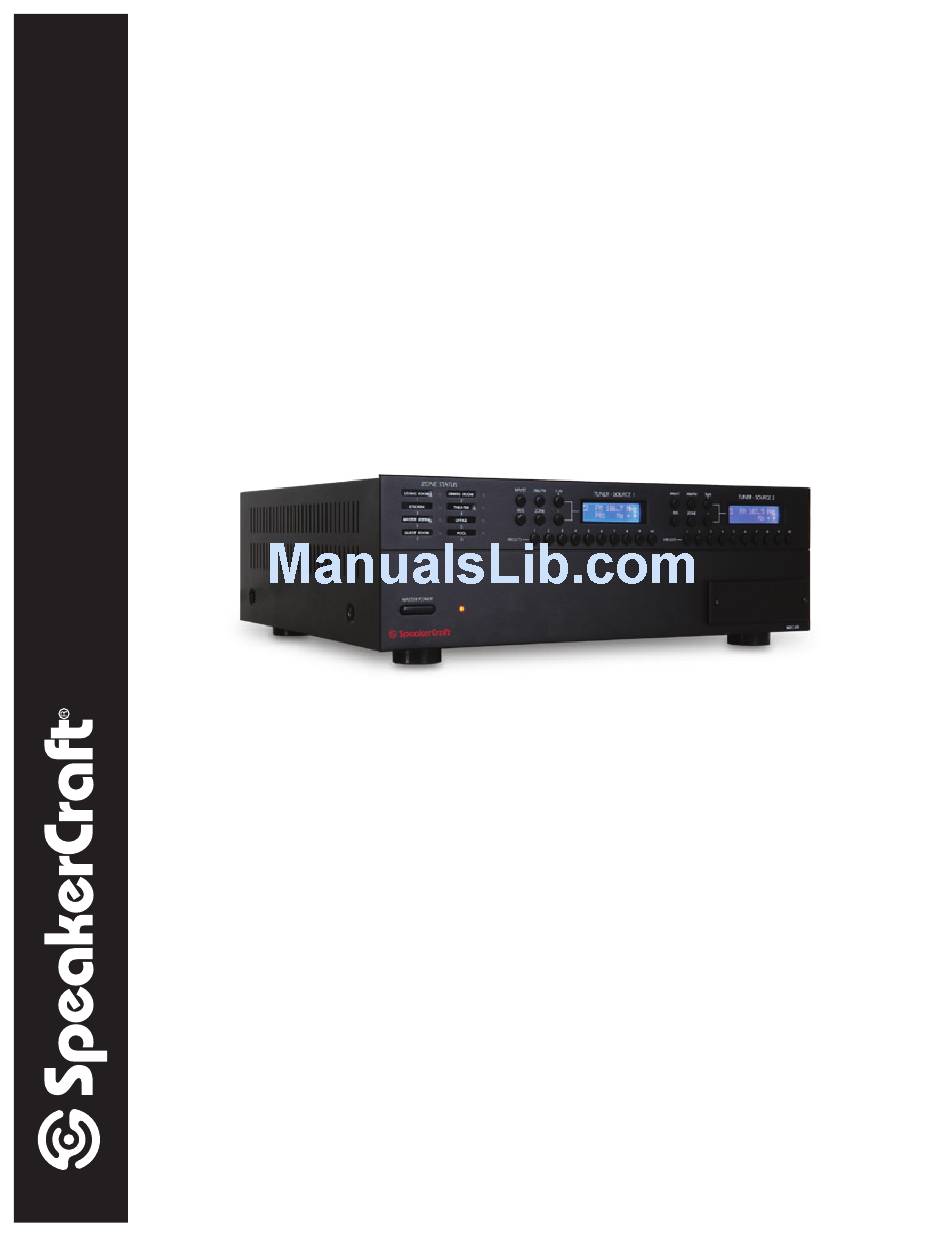

QUICK START GUIDE

MZC-88

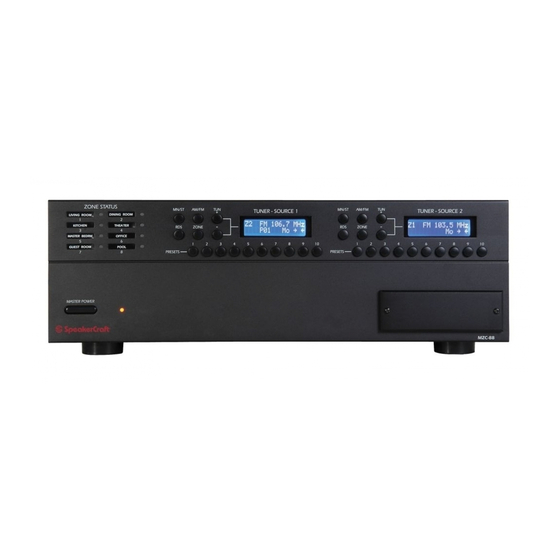

Multi-Zone Audio/Video Amplifier Controller

ABOUT MZC-88 QUICK START GUIDE

MZC-88 QUICK START GUIDE is intended to provide top-level instructions for Installation, Configuration and
Connection of a SpeakerCraft MZC-88 System. MZC-88 Quick Start focuses on a MZC-88 'default' system,
that is, a basic eight zone system that includes up to eight audio/video sources, (including the two internal
AM/FM Tuners) that matches the MZC-88 default project included in the EZ-Tools download. This Quick Start
Guide can also be used for getting more sophisticated systems started, but when planning and installing ex-
panded systems with multiple controllers, external amplifiers, multi-room zones or when changing the layout
of the keypad buttons, it is highly recommended that the MZC-88 Hardware Installation Instructions be used
for reference and guidance. Additionally, the Hardware Installation Instructions provide much greater detail
in regard to instructions given here. MZC-88 Hardware Installation Instructions are available as a download
from www.speakercraft.com.
Once a MZC system has been installed, though capable of some basic functions out of the box such as
ON/OFF, Source Selection and Volume/Mute, configuration of MZC-88 advanced features requires Speaker-
Craft EZ-Tools Programming Software. EZ-Tools and the EZ-Tools MZC Programming Instructions can be down-
loaded from: www.speakercraft.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MZC-88 and is the answer not in the manual?

Questions and answers

Related Manuals for SpeakerCraft MZC-88

Summary of Contents for SpeakerCraft MZC-88

  • Page 1: Quick Start Guide

    (including the two internal AM/FM Tuners) that matches the MZC-88 default project included in the EZ-Tools download. This Quick Start Guide can also be used for getting more sophisticated systems started, but when planning and installing ex-...
  • Page 2 8, 15. PRESETS – Tuner Presets 1-10. Press to select preset for programming or channel preset select by zone. MASTER POWER SWITCH – When pressed to the in position, the MZC-88 is placed in the power ON standby condition, permitting individual zones to be turned ON and OFF by keypad, or touch panel commands. In the OFF (out) position, power from the AC mains is completely turned off.
  • Page 3 Source Audio signals to additional zone inputs on Slave MZC-88’s in expanded systems. i.e. The L, R, V LOOP on the MZC Master would connect to the appropriate L, R, V INPUT on MZC Slave 1.
  • Page 4 MKP-1.1 SOURCE/FUNCTION BUTTONS – When used with MZC-88, six of this set of eight buttons may be programmed as source or function buttons. The top two source buttons are dedicated to Tuner 1 and Tuner 2 when used with a MZC-88. Any mix of source/function buttons is allowed on the remaining six, including all source or all function buttons, if desired.

  • Page 5: Keypad Connections

    Preset Programming The MZC-88 has two built-in AM/FM Tuners that allow programming of up to 10 AM or FM Stations per Tuner per Zone. Each Zone’s presets require programming by Tuner and by preset. Tuner Presets can only be programmed from the MZC-88 Front Panel controls.
  • Page 6 EZ-Tools. High power or multi-channel amplifiers can be added to the individual zones for high audio output in large rooms or out- door zones or when adding additional rooms or “sub-zones” to a default system. Additionally, the MZC-88 has two programmable contact closures for control of lifts, screens, drapes etc.
  • Page 7 Carefully attach a SpeakerCraft IR Emitter (Models: 1.0, 2.0, 3.0, 4.0) over the IR eye on the front panel of each external source component to be controlled via infrared. Carefully pull the emitter wire to the rear panel of the MZC-88. Do not block accesses for discs and tapes. Do not pinch emitter wires between components.
  • Page 8 17” (432mm) W x *5-1⁄4” (133mm) H x 14-3⁄4” (375mm) D *5-3⁄4” (146mm) H, including feet. Weight 31.5 lbs (14.3 kg) 940 Columbia Ave., Riverside CA 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.com LIT13188...
