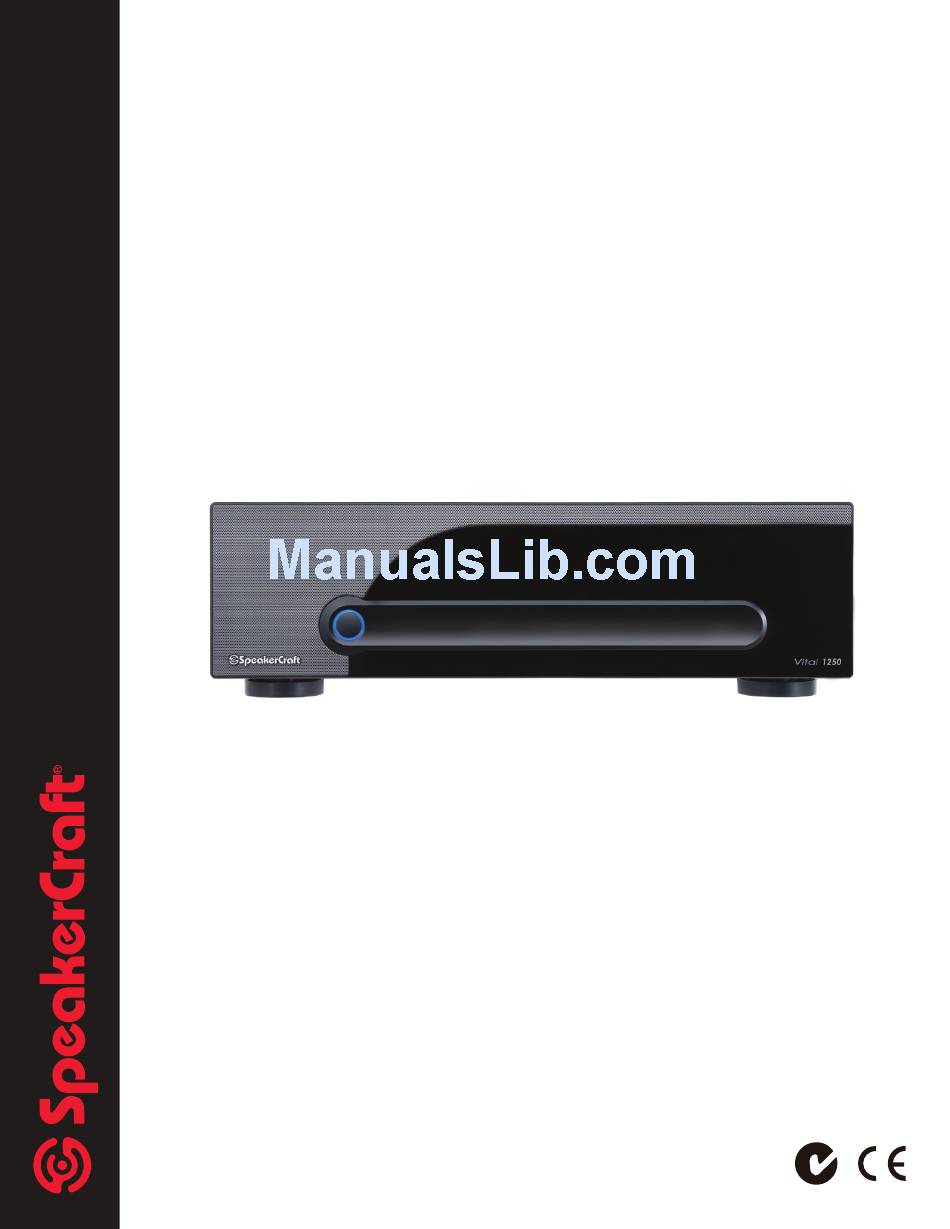

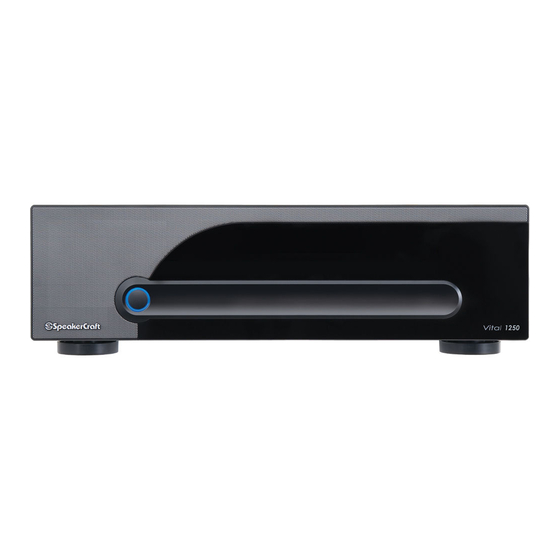

- Page 1 Vital Digital Amplifiers Vital 1250 and 850 Owner’ s Manual...
- Page 2 Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the CAUTION: To reduce the risk of electric shock, do appliance.
- Page 3 When SpeakerCraft set out to develop the custom installation industry's most complete line of amplifiers, we knew we had to have answers for the variety of situations that you encounter. Having years of success with our Big Bang amplifiers, SpeakerCraft is reVitalizing our amplifier line to include several digital amplifiers: Vital 1250, Vital 850 and Vital 170V.
- Page 4 Bridging The power output of adjacent channels can be combined to Sophisticated design and superior internal components result provide extra power when needed in certain areas. This is in outstanding sound quality, performance and long term easily accomplished by flipping a single switch. reliability.
- Page 5 Bridging Switch Allows you to easily Main bus inputs allow outputs Level controls for double the power output by coupling from receivers, CD players, TVs, each channel. two channels together. or any stereo audio sources to be amplified across all channels Bus outputs allow the bus inputs Source Selection Switch for easy multi-room applications.
- Page 6 Allows any of the channels to be adjusted independently to raise or lower the output of each channel. This may be used There are many ways to configure the Vital amplifier. The to control the speaker output in order to balance different following pages contain some typical installation examples.
-
Page 7: Audio Sources
AUDIO SOURCES OUTPUT PREAMPLIFIER / RECEIVER CD Player TAPE INPUT INPUT INPUT OUTPUT OUTPUT Tape Deck OUTPUT DVD Player 3043949 Room 1 Room 2 Room 3 Room 4 Room 5 Room 6 VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL LEFT SPEAKER... - Page 8 SOURCES OUTPUT PREAMPLIFIER / RECEIVER CD Player #1 TAPE OUTPUT INPUT INPUT INPUT INPUT OUTPUT Tape Deck OUTPUT CD Player #2 DVD Player OUTPUT 3043949 VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL VOLUME CONTROL LEFT SPEAKER RIGHT SPEAKER LEFT SPEAKER RIGHT SPEAKER LEFT SPEAKER...
- Page 9 CD Player DVD Player Tuner Tape Deck OUTPUT OUTPUT OUTPUT OUTPUT AUDIO SOURCES TUNER TAPE INPUT INPUT INPUT INPUT 6 STEREO PREAMPLIFIERS MULTIZONE PREAMPLIFIER ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT 3043949...
- Page 10 SOURCES OUTPUT HOME THEATER RECEIVER CD Player SPEAKER SUBWOOFER MULTI-ROOM OUTPUTS OUTPUT OUTPUT INPUT INPUT INPUT REAR REAR OUTPUT LEFT CENTER RIGHT LEFT RIGHT DVD Player OUTPUT LEFT SPEAKER CENTER SPEAKER RIGHT SPEAKER 3043949 REAR LEFT SPEAKER SUBWOOFER REAR RIGHT SPEAKER Room 1 Room 2 Room 3...
- Page 11 SOURCES OUTPUT HOME THEATER RECEIVER / PROCESSOR CD Player SUBWOOFER INPUT INPUT INPUT REAR REAR OUTPUT LEFT CENTER RIGHT LEFT RIGHT OUTPUT CHANNEL OUTPUTS DVD Player OUTPUT 3043949 LEFT SPEAKER CENTER SPEAKER RIGHT SPEAKER VOLUME CONTROL LEFT SPEAKER RIGHT SPEAKER REAR LEFT SPEAKER SUBWOOFER REAR RIGHT SPEAKER...
- Page 12 Constant Power Mode Selection Power button will light = Set to “Constant”. up when the amplifier is “On/Active” and will level surface. Master Power Button go off when it is “off”. = Depress to “In” position to turn proper cooling. In areas that lack proper ventilation, such amplifier “On”, out as tight cabinets or racks, it may be necessary to install position is “Off”.
- Page 13 To bridge two adjacent channels move the switch marked unsure about using this feature please contact an authorized “BRIDGE” to the “ON” position. SpeakerCraft dealer for assistance. The speaker must be connected to the terminals immediately under the “BRIDGED” text as indicated in Diagram 11. All...
- Page 14 If you have a problem please check the troubleshooting list first. If the problem persists, contact your authorized SpeakerCraft dealer or SpeakerCraft technical support at (800) 448-0976 or e-mail us at techsupport@speakercraft.com.
- Page 15 Vital 1250 Vital 850 : 50 Watts x 8 Channels, 8 , 2 Channels : 50 Watts x 12 Channels, 8 , 2 Channels Driven, Remaining Channels Driven at 1/8 of Rated Power. Driven, Remaining Channels Driven at 1/8 of Rated Power.
- Page 16 It is preferable to ship this product in the original shipping container to lessen the chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the purchaser. If upon examination at the Factory or SpeakerCraft Authorized Dealer it is determined that the unit was defective in materials or workmanship at any time during this warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below.
- Page 17 940 Columbia Ave., Riverside CA 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.com LIT91250...
