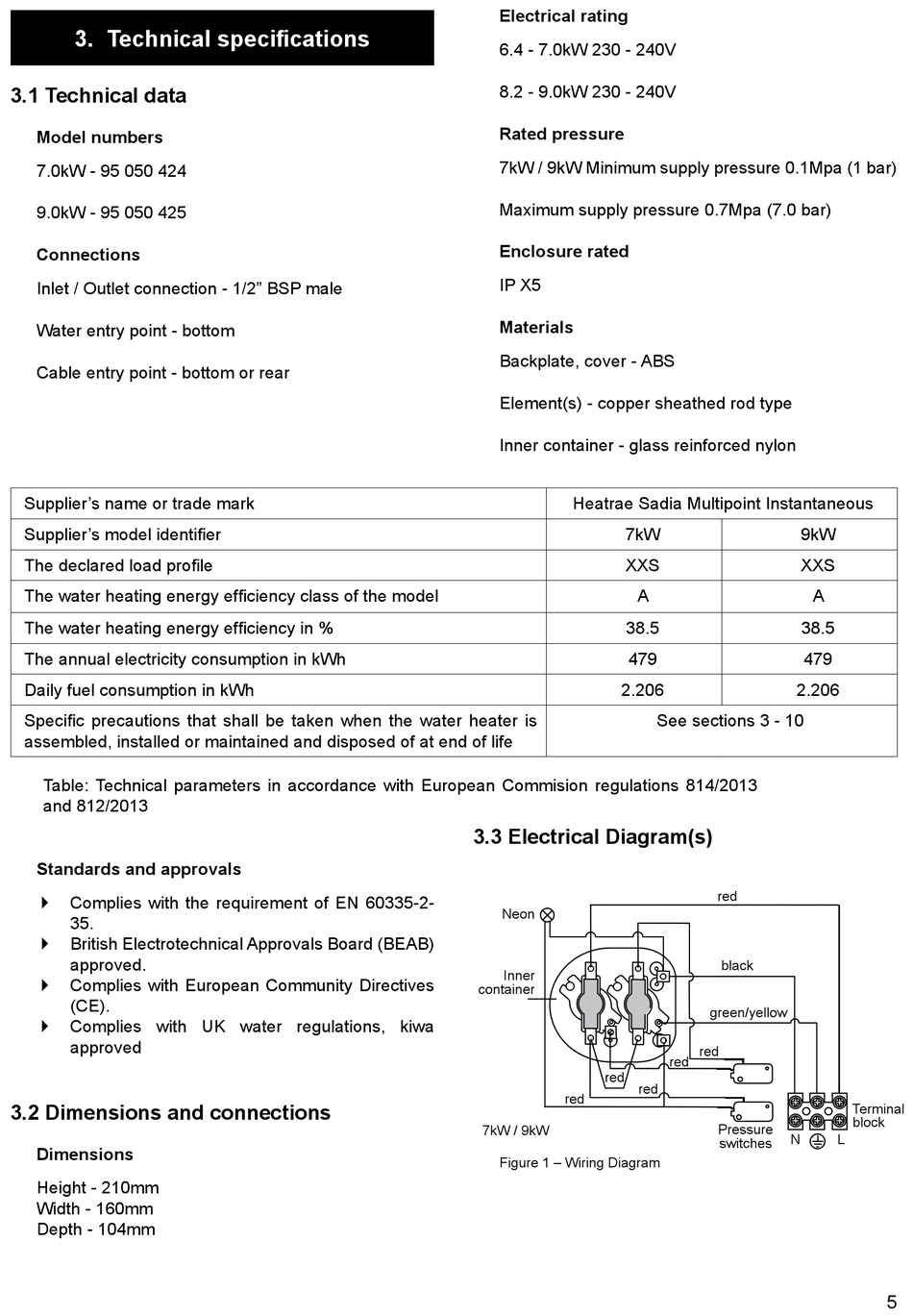

3. Technical specifications

3.1 Technical data

Model numbers
7.0kW - 95 050 424
9.0kW - 95 050 425
Connections
Inlet / Outlet connection - 1/2" BSP male
Water entry point - bottom
Cable entry point - bottom or rear
Supplier's name or trade mark
Supplier's model identifier
The declared load profile
The water heating energy efficiency class of the model
The water heating energy efficiency in %
The annual electricity consumption in kWh
Daily fuel consumption in kWh
Specific precautions that shall be taken when the water heater is
assembled, installed or maintained and disposed of at end of life
Table: Technical parameters in accordance with European Commision regulations 814/2013
and 812/2013
Standards and approvals
Complies with the requirement of EN 60335-2-
`
35.
British Electrotechnical Approvals Board (BEAB)
`
approved.
Complies with European Community Directives
`
(CE).
Complies with UK water regulations, kiwa
`
approved

3.2 Dimensions and connections

Dimensions
Height - 210mm
Width - 160mm
Depth - 104mm
Electrical rating
6.4 - 7.0kW 230 - 240V
8.2 - 9.0kW 230 - 240V
Rated pressure
7kW / 9kW Minimum supply pressure 0.1Mpa (1 bar)
Maximum supply pressure 0.7Mpa (7.0 bar)
Enclosure rated
IP X5
Materials
Backplate, cover - ABS
Element(s) - copper sheathed rod type
Inner container - glass reinforced nylon
Heatrae Sadia Multipoint Instantaneous
7kW
XXS
A
38.5
479
2.206

3.3 Electrical Diagram(s)

Neon
Inner
container
red
red
red
7kW / 9kW
Figure 1 – Wiring Diagram
9kW
XXS
A
38.5
479
2.206
See sections 3 - 10
red
black
green/yellow
red
red
Pressure
N
switches
Terminal
block
L
5
