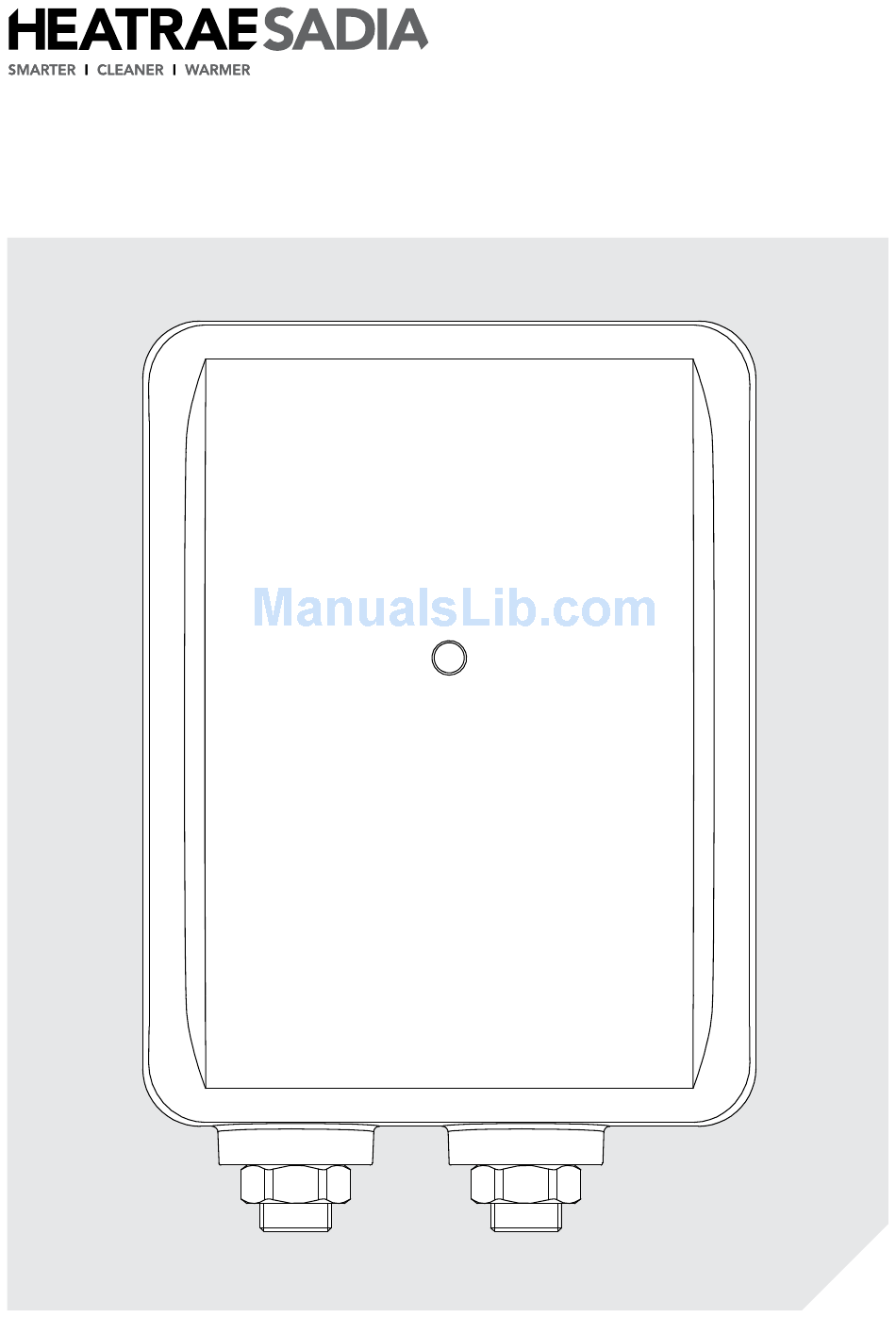

- Page 1 Multipoint Instantaneous Fitting Instructions...
-
Page 2: Table Of Contents
Contents 1. Introduction ....................3 1.1 General ....................3 1.2 Symbols used ..................3 1.3 Abbreviations ..................3 1.4 Liabilities .....................3 2. Safety ......................4 2.1 General safety warnings ..............4 2.2 Recommendations ................4 2.3 Specific safety instructions ..............4 3. Technical specifications ................5 3.1 Technical data ..................5 3.2 Dimensions and connections ..............5 3.3 Electrical Diagram(s) ................5 4. -
Page 3: Introduction
Our liability as the manufacturer may not be invoked 1. Introduction in the following cases: Failure to abide by the instructions on using the 1.1 General product. Faulty or insufficient maintenance of the The following instructions are offered as a guide to product. -
Page 4: Safety
2.3 Specific safety instructions 2. Safety WARNING 2.1 General safety warnings DO NOT operate the product if: WARNING Water ceases to flow during use. Water has entered inside the Only competent persons having product because of an incorrectly received adequate training are fitted cover. -
Page 5: Technical Specifications
Cable entry point - bottom or rear Element(s) - copper sheathed rod type Inner container - glass reinforced nylon Supplier’s name or trade mark Heatrae Sadia Multipoint Instantaneous Supplier’s model identifier The declared load profile The water heating energy efficiency class of the model The water heating energy efficiency in % 38.5... -
Page 6: Description Of The Product
4. Description of the product 4.1 General description These heaters are of the closed outlet type (unvented pressure system) and are suitable for connection to normal cold water mains supply up to a maximum of 0.7MPa (7.0 bar) for 7 & 9 kW 4.2 Operation principle The product is used to provide the user with hot water at point of use. -
Page 7: Before Installation
A - Outlet valve 5. Before installation B - Flow restrictor C - Multipoint instantaneous D - Expansion relief valve E - Services stop valve 5.1 Installation regulations WARNING Installation of the product must be carried out by a qualified engineer in accordance with prevailing and national regulations as listed below. -
Page 8: Installation
Multipoint Instantaneous. You will need to call in WARNING your Regional Electricity DO NOT solder pipes or fittings within... - Page 9 A double-pole isolating switch (rated at 30A for 7kW Multiple installation and 40A for 9kW), with a contact separation of at When larger volumes of water are required least 3mm in each pole, must be incorporated in than can be provided by one heater, multiple the circuit.
-
Page 10: Commissioning
7. Commissioning 8. Operation 7.1 General 8.1 General After installing the product in the previous section Once installed, the heater will operate automatically please follow the following steps to complete the when the outlet valve is opened. The valve must installation. -
Page 11: Troubleshooting
Remove the product Cap pipework For any faults that cannot be identified using the fault finding chart please contact the Heatrae Sadia Environmental information Service Department. Products are manufactured from many recyclable materials. -
Page 12: Spare Parts
Do not replace with parts not recommended by Heatrae Sadia - this will invalidate your warranty and may render the installation dangerous. Description Code No... - Page 13 Figure 7...
-
Page 14: Warranty
Regulations in force at the time of installation and that all necessary inlet, vent and electrical connections have been fitted correctly. Any valves or controls are of the Heatrae Sadia recommended type. The product has not been tampered with. The product has been used only for heating potable water. - Page 16 Parts Center OUR NATIONWIDE NETWORK OF CUSTOMER SUPPORT ENGINEERS Tel: 0344 292 7057 Heatrae Sadia has its very own dedicated nationwide network of highly trained www.partscenter.co.uk customer support engineers so you can have peace of mind that we’re always here to help.
