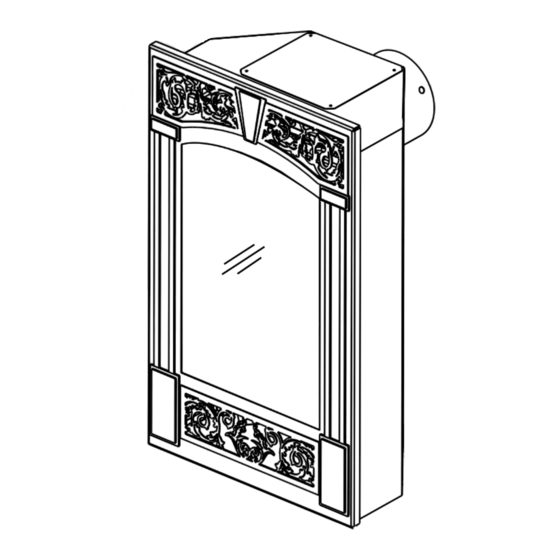

Napoleon Vittoria GD19N Installation And Operation Instructions Manual

Vented natural & propane gas fireplace
Hide thumbs Also See for Vittoria GD19N:
Table of Contents

Advertisement

Quick Links

CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50 CSA 2.22 FOR VENTED GAS FIREPLACE.
GD19N
NATURAL GAS
GD19P
PROPANE
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
-
Installation
and
performed by a qualified installer, service
agency or the supplier.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031
$10.00
INSTALLER: LEAVE THIS MANUAL WTIH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
OPERATION INSTRUCTIONS
service
must
be
www.napoleonfireplaces.com • ask@napoleon.on.ca
INSTALLATION
1
AND
W415-0612 / C / 01.25.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vittoria GD19N and is the answer not in the manual?

Questions and answers

Related Manuals for Napoleon Vittoria GD19N

Summary of Contents for Napoleon Vittoria GD19N

  • Page 1 INSTALLER: LEAVE THIS MANUAL WTIH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50 CSA 2.22 FOR VENTED GAS FIREPLACE. GD19N NATURAL GAS GD19P PROPANE CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS. SAFETY INFORMATION WARNING If the information in these instructions are...

  • Page 2: Table Of Contents

    PG 2-5 INTRODUCTION Warranty General Instructions General Information Care of Glass and Plated Parts Dimensions 5-15 VENTING Venting Lengths and Air Terminal Locations Typical Vent Installations Special Vent Installations Minimum Air Terminal Location Clearances Venting Application Flow Chart Venting Specifi cations Top Exit Conversion 16-23 INSTALLATION Wall and Ceiling Protection...
  • Page 3 NAPOLEON® products are manufactured under the strict Standard of the world recognized ISO 9001 : 2000 Quality Assurance Certifi cate. NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test station.

  • Page 4: General Instructions

    GENERAL INSTRUCTIONS THIS GAS FIREPLACE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local codes. Installation practices vary from region to region and it is important to know the specifi cs that apply to your area, for example: in Massachusetts State: •...

  • Page 5: Dimensions

    FIGURE 1a ” ACCESS FIGURE 1d ” VENTING LENGTHS AND AIR TERMINAL LOCATIONS Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp or American Metal Amerivent venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations, and air terminal locations for either system are set out in this manual and must be adhered to.

  • Page 6: Vent Installations

    VENTING LENGTHS AND AIR TERMINAL LOCATIONS CONTINUED When using Wolf Steel venting components, use only approved Wolf Steel rigid / fl exible components with the following termination kits:Wall Terminal Kit 1/12 to 7/12 Pitch Roof Terminal Kit GD110, 8/12 to 12/12 Roof Terminal Kit GD111, Flat Roof Terminal Kit GD112 or Periscope Kit GD201 (for wall penetration below grade).

  • Page 7: Typical Vent Installations

    TYPICAL VENT INSTALLATIONS REAR EXIT FIGURE 2a 16” MINIMUM 35 FT MAXIMUM 3 FT MINIMUM FIGURE 2b 20" MAXIMUM PLUS RISE* SPECIAL VENT INSTALLATIONS PERISCOPE TERMINATION Use the GD201 periscope kit to locate the air termination above grade. The periscope must be installed so that when fi...

  • Page 8: Minimum Air Terminal Location Clearances

    MINIMUM AIR TERMINAL LOCATION CLEARANCES FIGURE 6 W415-0612 / C / 01.25.08...
  • Page 9 W415-0612 / C / 01.25.08...

  • Page 10: Elbow Vent Length Values

    DEFINITIONS For the following symbols used in the venting calculations and examples are: > - greater than > - equal to or greater than < - less than < - equal to or less than - total of both horizontal vent lengths (H ) in feet - combined horizontal vent lengths in feet - offset factor: .03(total degrees of offset - 90°*) in...
  • Page 11 TOP EXIT / HORIZONTAL TERMINATION ) > (V Simple venting confi guration (only one 90° elbow) See graph to determine the required vertical rise V required horizontal run H REQUIRED VERTICAL RISE IN INCHES V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V...

  • Page 12: Rear Exit / Horizontal Termination

    REAR EXIT / HORIZONTAL TERMINATION ) < (V Simple venting confi guration (only two 90° elbows) See graph to determine the required vertical rise V required horizontal run H 33.3 REQUIRED VERTICAL RISE IN 17.5 FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V...
  • Page 13 REAR EXIT / HORIZONTAL TERMINATION ) > (V Simple venting confi guration (only two 90° elbows) See graph to determine the required vertical rise V required horizontal run H REQUIRED VERTICAL RISE IN INCHES V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V...

  • Page 14: Top Or Rear Exit Vertical Termination

    TOP OR REAR EXIT VERTICAL TERMINATION ) < (V ple venting confi gurations See graph to determine the required vertical rise V required horizontal run H REQUIRED VERTICAL RISE IN FEET V 17.5 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V...
  • Page 15 ) > (V Simple venting confi gurations See graph to determine the required vertical rise V required horizontal run H REQUIRED VERTICAL RISE IN FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V For vent confi...

  • Page 16: Top Exit Conversion

    TOP EXIT CONVERSION In order to convert the venting confi guration from a rear exit to a top exit, remove the components as illustrated: When reinstalling in the alternate position: Check gaskets for tears, replace if necessary to ensure a proper seal. Outer Top 7”...

  • Page 17: Installation

    WALL AND CEILING PROTECTION For optimum performance, it is recommended that horizontal runs have a minimum 1" rise per foot when using Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent, or Wolf Steel rigid or fl exible vent components. For safe and proper operation of the fi replace, follow the venting instructions exactly.

  • Page 18: Using Flexible Vent Components

    USING FLEXIBLE VENT COMPONENTS ELBOW Do not allow the 4" flexible vent pipe to bunch up on horizontal or vertical runs and elbows. tight. A 1 1/4” air gap between the 4" and 7" flexible vent pipes all around is required for safe operation. SPACERS spacer is required at the start, middle and end of each elbow to ensure this...

  • Page 19: Fireplace Vent Connection

    4. Thread the air terminal connector / vent pipe assembly down through the roof. The air terminal must be located vertically and plumb. Attach the air terminal connector to the roof support, ensuring that the top of the air terminal is 16” above the highest point that it penetrates the roof.

  • Page 20: Vertical Venting Installation

    EXTENDED HORIZONTAL AND CORNER AIR TERMINAL INSTALLATION 1. Follow the instructions for "Horizontal Air Terminal Installations", items 1 to 3. 2. Continue adding components alternating 4" and 7" vent pipes. Ensure that all 4" vent pipes and elbows have suffi cient vent spacers attached and each component is securely fastened to the one prior.

  • Page 21: Mobile Home Installation

    MOBILE HOME INSTALLATION This appliance is certifi ed to be installed as an OEM (Origi- nal Equipment Manufacturer) installation in a manufactured home or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada.

  • Page 22: Framing

    It is best to frame your fi replace after it is positioned and the vent system is installed. Frame to local building codes. NOTE: In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the fi replace body, it is required that the walls of the fi...

  • Page 23: Minimum Mantel And Enclosure Clearances

    MINIMUM MANTEL AND ENCLOSURE CLEARANCES Mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the clearance needed. Combustible materials must be installed fl ush with the front of the fi replace but must not cover any of the black face-area of the fi...

  • Page 24: Front Facing And Inset Kit Installation

    FRONT FACING AND INSET KIT INSTALLATION FIGURE 45 WARNING: The components in this kit are heavy, use care when lifting and ensure they are fi rmly secured once installed. This front facing does not replace the main glass door. Do not operate without the main glass door installed. The front facing can sit fl...

  • Page 25: Blower Installation

    BLOWER INSTALLATION ELECTRICAL INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must be connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE If an optional blower is to be used, the blower must be connected to the main power supply. Route a grounded 14 gauge 2- wire power cable to the junction box and ground.

  • Page 26: Finishing

    GLASS DOOR INSTALLATION AND REMOVAL Before the glass door can be removed, the optional front must be removed. The glass door is secured to the top front edge of the fi rebox and retained by the bottom. 1. Unlatch door 2.

  • Page 27: Logo Placement

    3. Place the center log as shown, ensuring the holes on the underside are placed onto the two center pins. 4. Place the hole in the underside of the right log onto the locating pin, on the burner base and rests against the rear log as shown.

  • Page 28: Wiring Diagram

    The main burner and Night Light lower access panel. For ease of accessibility, optional re- mote wall switches may be installed in a convenient location for both burner and light operation. The recommended maximum lead length depends on wire size: WIRE SIZE 14 gauge 16 gauge...

  • Page 29: Operation / Maintenance

    OPERATION / MAINTENANCE Purge all gas lines with the glass door of the fi replace removed or opened. Assure that a continuous gas fl ow is at the burner before installing the door. When lit for the fi rst time, the fi replace will emit a slight odour by the "burn-in"...

  • Page 30: Adjustments

    PILOT INJECTOR AND ORIFICE REPLACEMENT 1. Turn off the electrical FIGURE 64 and gas supply to the fi replace. 2. Remove the front, glass viewing door and log set. 3. Remove the 2 securing screws. Slide the burner assembly to the right and lift out.

  • Page 31: Replacements

    Contact your dealer for questions concerning prices and availability of replacement parts. Normally all parts can be ordered through your Napoleon® dealer or distributor. When ordering replacement parts always give the following information: 1. M & S ODEL ERIAL UMBER OF FIREPLACE 2.
  • Page 32 W415-0612 / C / 01.25.08...

  • Page 33: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED SYMPTOM PROBLEM Pilot will not light. - Wiring Makes noise with no spark at pilot burner - Loose connection - Module - Igniter Spark gap is...
  • Page 34 SYMPTOM PROBLEM - Wiring / Connection Pilot lights Stops sparking / pilot remains lit - Wiring harness but burner will not turn on - Module or Valve - Fireplace is spilling. Exhaust fumes smelled in room, headaches. Carbon is being depos- - Air shutter has become blocked ited on glass, logs or...
  • Page 35 W415-0612 / C / 01.25.08...
  • Page 36 NOTES W415-0612 / C / 01.25.08...
