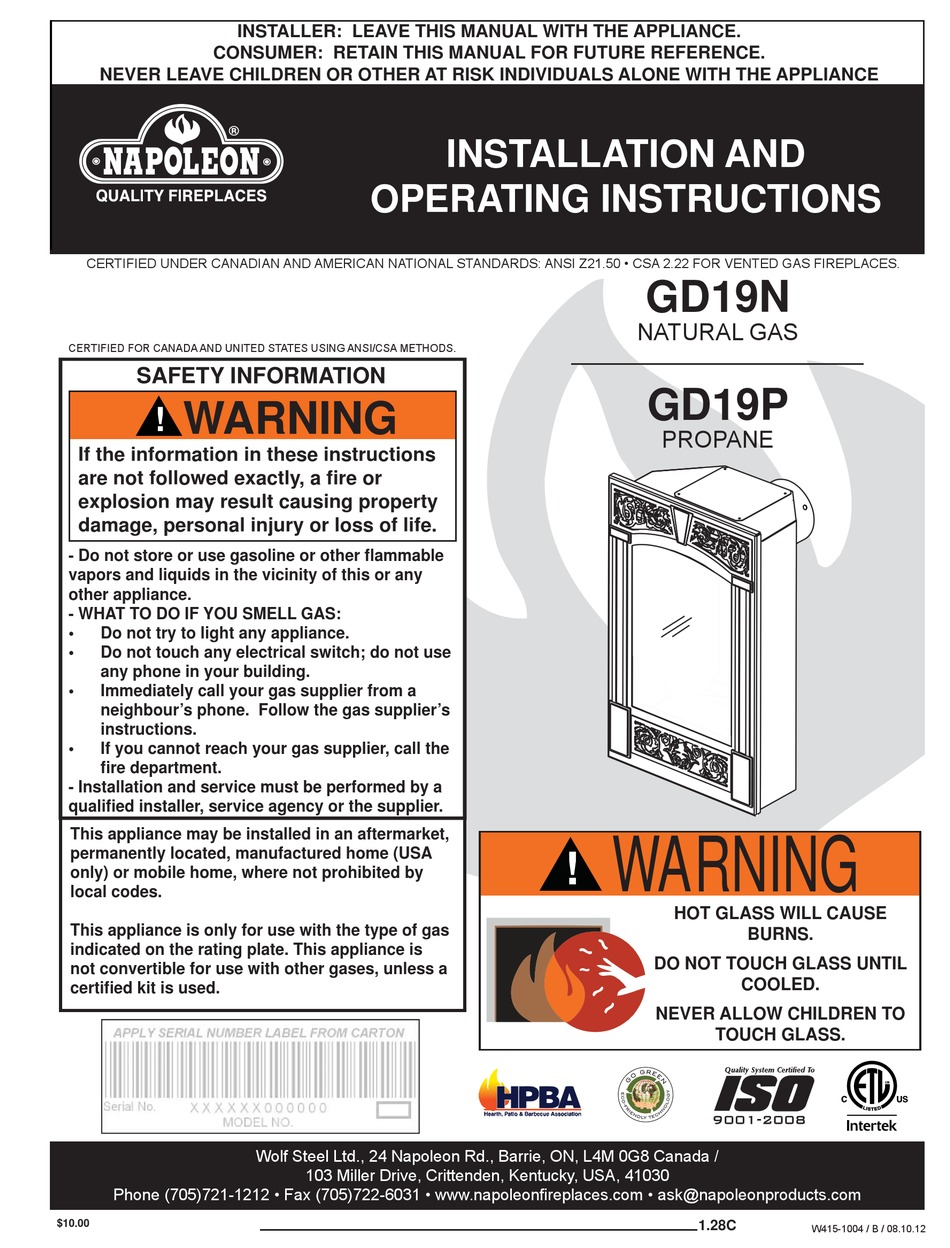

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50 • CSA 2.22 FOR VENTED GAS FIREPLACES.
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.

SAFETY INFORMATION

WARNING
!
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
If the information in these instructions
are not followed exactly, a fi re or
explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certifi ed kit is used.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
WARNING
!
GD19N

NATURAL GAS

GD19P
PROPANE
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
1.28C
W415-1004 / B / 08.10.12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD19N and is the answer not in the manual?

Questions and answers

Related Manuals for Napoleon GD19N

Summary of Contents for Napoleon GD19N

  • Page 1: Natural Gas

    NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE INSTALLATION AND OPERATING INSTRUCTIONS CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50 • CSA 2.22 FOR VENTED GAS FIREPLACES. GD19N NATURAL GAS CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS. SAFETY INFORMATION...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INSTALLATION OVERVIEW INTRODUCTION GENERAL INSTRUCTIONS GENERAL INFORMATION RATING PLATE INFORMATION VENTING VENTING LENGTHS AND COMPONENTS TYPICAL VENT INSTALLATION SPECIAL VENT INSTALLATIONS 3.3.1 PERISCOPE TERMINATION 3.3.2 CORNER TERMINATION VENT TERMINAL CLEARANCES VENTING APPLICATION FLOW CHART DEFINITIONS ELBOW VENT LENGTH VALUES TOP EXIT HORIZONTAL TERMINATION REAR EXIT HORIZONTAL TERMINATION 3.10...

  • Page 3: Installation Overview

    1.0 INSTALLATION OVERVIEW Top vent, see “REAR VENT CONVERSION” section. Venting, see “VENTING” Door, see “GLASS DOOR section. INSTALLATION AND REMOVAL” section. Burner, see “BURNER INSTALLATION” section. Rating Plate, see “RATING PLATE INFORMATION” section. Blower, see “OPTIONAL Front face, see “FRONT BLOWER INSTALLATION”...

  • Page 4: Introduction

    2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi...
  • Page 5 7” DIA. 4” DIA. ” ” ” ” ” LINE ACCESS 12” ” ELECTRICAL 13” ” ” ACCESS ” ” 9” ” 7” DIA. 4” DIA. LINE 5” ACCESS ” ” ELECTRICAL ACCESS W415-1004 / B / 08.10.12...

  • Page 6: General Instructions

    GENERAL INSTRUCTIONS WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT, WITH THE GLASS DOOR OPENED OR REMOVED. PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE. PROVIDE ADEQUATE VENTILATION. NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48”...

  • Page 7: General Information

    COLONNE D'EAU(GN) COLONNE D'EAU (P) MIN SUPPLY PRESSURE: 4.5" W.C.(NG) MIN SUPPLY PRESSURE: 11" W.C. (LP) CDV19P GD19P GD19 GD19N CDV19N PRESSION D'ALIMENTATION MIN: 4.5" D'UNE PRESSION D'ALIMENTATION MIN: 11" D'UNE ALTITUDE / ELEVATION E / ELEVATION COLONNE D'EAU (GN)

  • Page 8: Venting

    3.0 VENTING WARNING RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE. IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3 FEET FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM COMBUSTIBLES.

  • Page 9: Typical Vent Installation

    For optimum flame appearance and appliance performance, keep the vent length and number of elbows to a minimum. The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that it is unobstructed and undamaged. Rigid and fl...
  • Page 10 16" MINIMUM 35 FT MAXIMUM 3 FT MINIMUM 20" MAXIMUM 26 3/8" MINIMUM PLUS RISE* 26 3/8" * See "VENTING" section W415-1004 / B / 08.10.12...

  • Page 11: Special Vent Installations

    SPECIAL VENT INSTALLATIONS 3.3.1 PERISCOPE TERMINATION Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when fi nal grading is completed, the bottom air slot is located a minimum 12” above grade. The maximum allowable vent length is 10’...

  • Page 12: Vent Terminal Clearances

    VENT TERMINAL CLEARANCES COVERED BALCONY APPLICATIONS = 3 feet = 2 x ACTUAL INSTALLATIONS feet CANADA U.S.A. 12” 12” Clearance above grade, veranda porch, deck or balcony. 12” 9” Clearance to windows or doors that open. Δ Δ 12” * 12”...

  • Page 13: Venting Application Flow Chart

    VENTING APPLICATION FLOW CHART TOP EXIT Horizontal Termination Vertical Termination Vertical rise is equal Vertical rise is equal Vertical rise is less Vertical rise is less to or greater than to or greater than than horizontal run than horizontal run the horizontal run the horizontal run Horizontal run +...

  • Page 14: Elbow Vent Length Values

    ELBOW VENT LENGTH VALUES FEET INCHES 1° 0.03 15° 0.45 30° 11.0 45° 1.35 16.0 90°* 32.0 * The fi rst 90° offset has a zero value and is shown in the formula as - 90° 15.1 TOP EXIT HORIZONTAL TERMINATION ) <...
  • Page 15 ) > (V Simple venting configuration (only one 90° elbow) See graph to determine the required vertical rise V for the required horizontal run H 147” REQUIRED VERTICAL RISE IN INCHES V 57” 19 1/2” 2’ 19.5’ 12.5’ HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V...

  • Page 16: Rear Exit Horizontal Termination

    REAR EXIT HORIZONTAL TERMINATION ) < (V Simple venting configuration See graph to determine the required vertical rise V for the required (only two 90° elbows) horizontal run H 32.3 REQUIRED VERTICAL RISE IN FEET V 12.5 17.5 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V 90°...
  • Page 17 ) > (V Simple venting configuration See graph to determine the required vertical rise V for the (only two 90° elbows) required horizontal run H REQUIRED VERTICAL RISE IN INCHES V 12.5 17.5 19.25 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V...

  • Page 18: Top Or Rear Exit Vertical Termination

    3.10 TOP OR REAR EXIT VERTICAL TERMINATION ) < (V See graph to determine the required vertical rise V for the Simple venting configurations. required horizontal run H REQUIRED VERTICAL 17.5 RISE IN FEET V 17.5 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H...
  • Page 19 ) > (V See graph to determine the required vertical rise V for the Simple venting configurations. required horizontal run H REQUIRED VERTICAL RISE IN FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H For vent configurations requiring more than one 90°...
  • Page 20 Example: = 1.5 FT = 5 FT = 1.5 + 1 + 5 = 6.5 FT = 1 FT = 1 FT = 10.75 FT = 1 + 1 + 10.75 = 12.75 FT = .03 (four 90° elbows + one 45° elbow - 90°) 90°...

  • Page 21: Rear Vent Conversion

    3.11 REAR VENT CONVERSION In order to convert the venting confi guration from a top exit to a rear exit, remove components as illustrated: When reinstalling in the alternate position: Check gaskets for tears, replace if necessary to ensure a proper seal.

  • Page 22: Installation

    4.0 INSTALLATION WARNING FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS EXACTLY. ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE JOINTS MAY BE SEALED USING EITHER RED RTV HIGH TEMP SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC W573-0007 (NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST BE SEALED USING MILL PAC.

  • Page 23: Horizontal Installation

    4.1.1 HORIZONTAL INSTALLATION WARNING THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP. TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE RETURN FLANGE OF THE MOUNTING PLATE. This application occurs when venting through an exterior wall. Having determined the correct height for the air terminal VENT location, cut and frame a hole in the exterior wall as...

  • Page 24: Using Flexible Vent Components

    USING FLEXIBLE VENT COMPONENTS WARNING DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS. KEEP IT PULLED TIGHT. SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER FLEX PIPE.

  • Page 25: Vertical Air Terminal Installation

    4.2.2 VERTICAL AIR TERMINAL INSTALLATION WARNING MAINTAIN A MINIMUM 2” SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR. Fasten the roof support to the roof using the screws provided. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof support.

  • Page 26: Appliance Vent Connection

    4.2.3 APPLIANCE VENT CONNECTION Install the inner fl ex pipe to the appliance. Secure with 3 screws #8 X 1/2” and fl at washers. Seal the joint and screw holes using the high temperature sealant W573-0007 (not supplied). SELF DRILLING Install the outer fl...

  • Page 27: Horizontal Air Terminal Installation

    4.3.1 HORIZONTAL AIR TERMINAL INSTALLATION Move the appliance into position. #10x2" Measure the vent length required SCREWS between terminal and appliance CAULKING taking into account the additional length needed for the fi nished INNER wall surface and any 1¼” overlaps RIGID OUTER between venting components.

  • Page 28: Vertical Air Terminal Installation

    4.3.3 VERTICAL AIR TERMINAL INSTALLATION NOTE: Before attaching elbows to the collars on the back of the appliance, 1 1/2” will need to be trimmed off the 4” collar. REAR VENT APPLICATION: Attach 4” and 7” elbows to the appliance. Secure with 3 screws and seal the joints and screw heads using high temperature sealant.

  • Page 29: Vertical Through Existing Chimney

    VERTICAL THROUGH EXISTING CHIMNEY WARNING RISK OF FIRE! CO-AXIAL TO CO-LINEAR VENTING CONFIGURATIONS MUST ONLY BE USED IN A NON- COMBUSTIBLE CHIMNEY OR ENCLOSURE. INSTALLATION IN A COMBUSTIBLE ENCLOSURE COULD RESULT IN A FIRE. This appliance is designed to be attached to a 3” co-linear aluminum fl ex vent system running the full length of a masonry chimney.

  • Page 30: Mobile Home Installation

    MOBILE HOME INSTALLATION This appliance is also certifi ed to be installed as an OEM (Original Equipment Manufacturer) installation in a manufactured home (U.S. only) or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada.

  • Page 31: Gas Installation

    GAS INSTALLATION WARNING RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS SPARKS OR OPEN FLAMES. SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED.

  • Page 32: Framing

    5.0 FRAMING WARNING RISK OF FIRE! IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY OTHER OUTSIDE WALL OF A HOME.

  • Page 33: Minimum Clearance To Combustibles

    MINIMUM CLEARANCE TO COMBUSTIBLES Minimum clearance to combustible construction from appliance and vent surfaces: Combustible Framing: 0" to stand-offs 1" to bottom and sides of the vent pipe* 2" to top of the vent pipe* Combustible Finishing: 0" to rear 0"...

  • Page 34: Rear Vent

    5.1.1 REAR VENT OUTSIDE MINIMUM CHASE ” ” ENCLOSURE HEIGHT ” ” ” INSIDE ” CHASE ” ” 2" ” 4" SIDE 2" PROTRUSION WALL 4" 5.1.2 TOP VENT 6" MINIMUM 23” ” MINIMUM ENCLOSURE HEIGHT ” ” OUTSIDE ” CHASE ”...

  • Page 35: Minimum Clearance To Combustible Enclosures

    MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES COMBUSTIBLE NON-COMBUSTIBLE BRICK 6” 0” IF NON-COMBUSTIBLE 2” FINISHING IS USED SUCH AS BRICK AND STONE. 39 1 /8” 1” 33 1 /8” 26 3 /8” MINIMUM PLUS RISE * 1” * See "VENTING" section COMBUSTIBLE NON-COMBUSTIBLE BRICK...

  • Page 36: Minimum Mantel Clearances

    MINIMUM MANTEL CLEARANCES WARNING RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE CLEARLY MAINTAINED.

  • Page 37: Electrical Connection

    6.0 ELECTRICAL CONNECTION WARNING DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE ELECTRICAL CIRCUIT. RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE APPLIANCE WALL SWITCH.

  • Page 38: Wiring Diagram

    7.0 WIRING DIAGRAM GNITION ODULE ILOT SSEMBLY IRE TAGS [through Yellow ARE BRACKETED Gas line conduit] [through Orange independent conduit] ATTERY Black ILOT OLDER URNER WITCH Shown in ALVE “OFF” position. ATTERY ELAY Red (3 Volt) ARNESS AC A DAPTOR Black (12 Volt) To Accent Light &...

  • Page 39: Finishing

    8.0 FINISHING GLASS DOOR REMOVAL: • Before the glass door can be removed, the decorative front must be removed. • The glass door is secured to the top and front bottom edges of the fi rebox with four spring DOOR latches.

  • Page 40: Facing Kit Installation/Removal

    FACING KIT INSTALLATION/REMOVAL WARNING THE COMPONENTS IN THIS KIT ARE HEAVY, USE CARE WHEN LIFTING AND ENSURE THEY ARE FIRMLY SECURED ONCE INSTALLED. THIS FRONT FACING DOES NOT REPLACE THE MAIN GLASS DOOR. DO NOT OPERATE WITHOUT THE MAIN GLASS DOOR INSTALLED. THE FRONT FACING CAN SIT FLUSH WITH A COUNTER, FLOOR, OR HEARTH.

  • Page 41: Optional Blower Installation

    9.0 OPTIONAL BLOWER INSTALLATION WARNING RISK OF FIRE AND ELECTRICAL SHOCK. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE. USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.

  • Page 42: Operation

    10.0 OPERATION WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED.

  • Page 43: Control Functions

    10.1 CONTROL FUNCTIONS MAIN BURNER SWITCH This switch turns the Main Burner on and off. FLAME ADJUSTMENT Turn this knob clockwise or counter-clockwise to adjust the main burner fl ame height. NIGHT LIGHT SWITCH This switch turns the Night Light on and off.

  • Page 44: Pressure Check

    11.2 PRESSURE CHECK Check Pressure Readings: Inlet pressure can be checked by turning screw (A) counter-clockwise 2 or 3 turns and then placing pressure gauge tubing over the test point. Gauge should read 7” (minimum 4.5”) water column for natural gas or 13” (11” minimum) water column for propane.

  • Page 45: Maintenance

    12.0 MAINTENANCE MAINTENANCE MAINTENANCE WARNING MAINTENANCE TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

  • Page 46: Door Glass Replacement

    12.1 DOOR GLASS REPLACEMENT WARNING DO NOT USE SUBSTITUTE MATERIALS. GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE APPLIANCE BEFORE OPERATION.

  • Page 47: Night Light Tm Replacement

    12.3 NIGHT LIGHT REPLACEMENT 12.3.1 BULB REPLACEMENT The GD19 comes equipped with our “Night Light™”. If in the event the lamp or lens needs to be replaced, follow these instructions. Turn off all electrical supply. Remove the front and door from the fi rebox. Unscrew the lens cover making sure the washer stays in place.

  • Page 48: Replacements

    13.0 REPLACEMENTS Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts can be ordered through your Authorized dealer / distributor. FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM.
  • Page 49 ACCESSORIES REF NO. PART NO. DESCRIPTION GS66 BLOWER KIT W175-0266 CONVERSION KIT - NG-LP 0-4,500 W175-0267 CONVERSION KIT - LP-NG 0-4,500 GD-301 HEAT GUARD W175-0001 4" COUPLER GD201 PERISCOPE FK19 FACING KIT, METALLIC BLACK FINISH FK19PW FACING KIT, PEWTER FINISH CFK19 CONTEMPORARY FACING KIT, METALLIC BLACK FINISH CFS19...

  • Page 50: Troubleshooting

    14.0 TROUBLESHOOTING WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS.
  • Page 51 SYMPTOM PROBLEM TEST SOLUTION Carbon is being Air shutter has become Ensure air shutter opening is free of lint or other deposited on blocked. obstructions. glass, logs, Flame is impinging on the Check that the glass, logs, rocks or media are rocks, media glass, logs, rocks, media correctly positioned.

  • Page 52: Warranty

    15.0 WARRANTY NAPOLEON® products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certifi cate. NAPOLEON® products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test station. The complete appliance is again thoroughly inspected by a qualifi...

  • Page 53: Service History

    16.0 SERVICE HISTORY 43.1 W415-1004 / B / 08.10.12...
  • Page 54 17.0 NOTES 44.1 W415-1004 / B / 08.10.12...
  • Page 55 44.1 W415-1004 / B / 08.10.12...
  • Page 56 W415-1004 / B / 08.10.12...
  • Page 81 PILOT R502...
