Page 1: Installation Guide

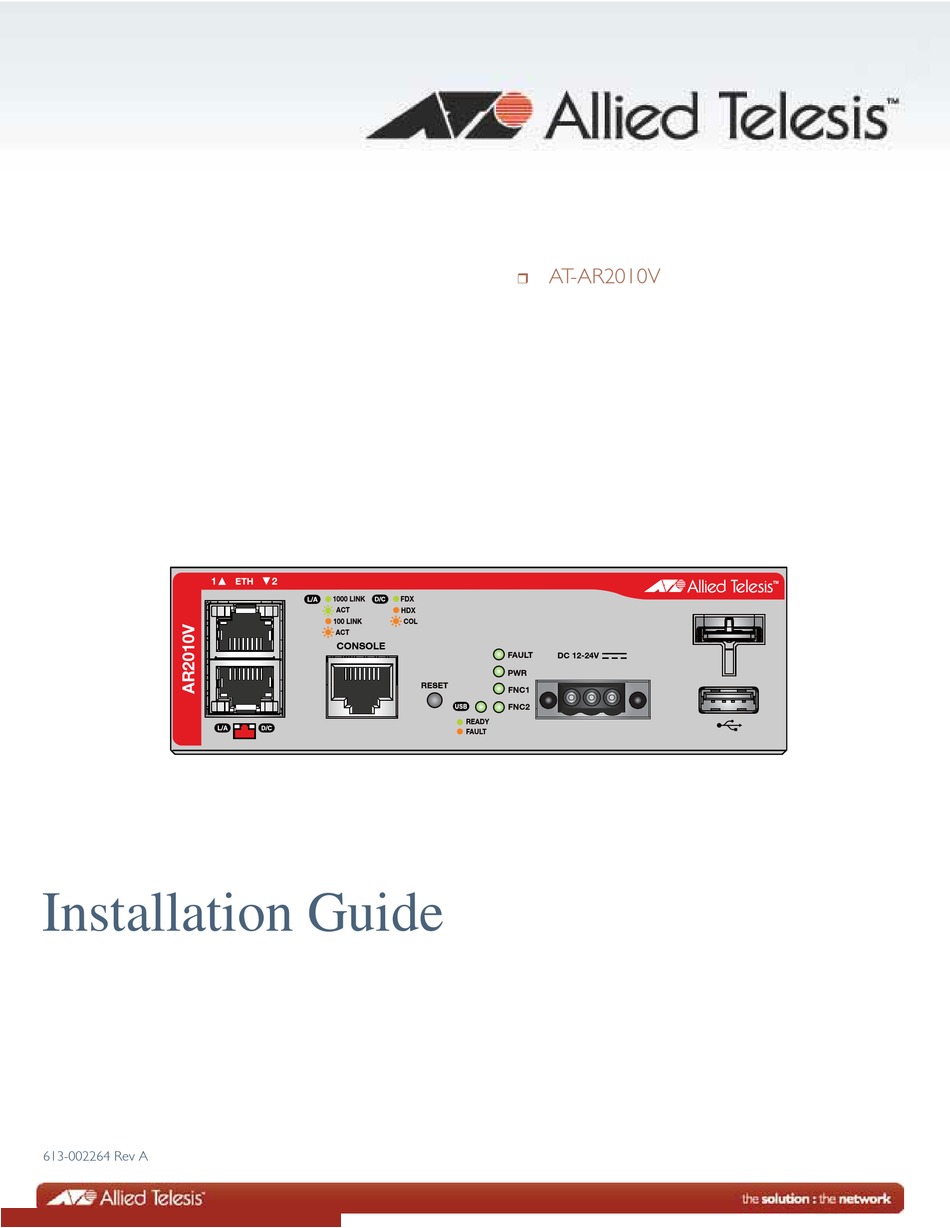

AT-AR2010V 1000 LINK 100 LINK CONSOLE FAULT DC 12-24V RESET FNC1 FNC2 READY FAULT Installation Guide 613-002264 Rev A... - Page 2 Allied Telesis, Inc. has been advised of, known, or should have known, the...
- Page 3 Electrical Safety and Emissions Standards This product meets the following standards. U.S. Federal Communications Commission Radiated Energy Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules.
- Page 4 Translated Safety Statements Important: Safety statements that have the symbol are translated into multiple languages in the Translated Safety Statements document at www.alliedtelesis.com/support.
-
Page 5: Table Of Contents
Contents Preface ....................................11 Document Conventions .............................. 12 Contacting Allied Telesis ............................13 Chapter 1: Overview ................................. 15 Features ..................................16 ETH Ports ................................16 USB Port ................................16 USB Retainer Slot ............................... 16 Reset Button ................................ 16 LEDs ..................................16 DC Power Inlet .............................. - Page 6 Contents Physical Specifications ..............................59 Environmental Specifications............................59 Power Specifications ..............................61 Certifications ................................61 RJ-45 Twisted Pair Port Pinouts..........................62 RJ-45 Style Serial Console Port Pinouts ........................63 Front DC Power Connector ............................63...
- Page 7 Figures Figure 1: Front panel of the AT-AR2010V router........................19 Figure 2: Back panel of the AT-AR2010V router ........................19 Figure 3: AT-AR2010V management panel..........................20 Figure 4: ETH ports ................................22 Figure 5: Power LED ................................23 Figure 6: Fault LED................................24 Figure 7: USB LED ................................25 Figure 8: ETH1 Port LEDs ..............................25...
- Page 8 Figures...
- Page 9 Tables Table 1: Power LED ................................23 Table 2: Fault LED ................................24 Table 3: USB LED ................................25 Table 4: LEDs for ETH1 Port ...............................26 Table 5: LEDs for ETH2 Port ...............................27 Table 6: Product Dimension ..............................59 Table 7: Product Weight ..............................59 Table 8: Environmental Specifications ..........................59 Table 9: Maximum Power Consumption ..........................61 Table 10: Input Voltages ..............................61...
- Page 10 Tables...
-
Page 11: Preface
Preface This guide contains the installation instructions for the AT-AR2010V router. This preface contains the following sections: “Document Conventions” on page 12 “Contacting Allied Telesis” on page 13... -
Page 12: Document Conventions
Preface Document Conventions This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. -
Page 13: Contacting Allied Telesis
Installation Guide for AT-AR2010V Router Contacting Allied Telesis If you need assistance with this product, you may contact Allied Telesis technical support by going to the Support & Services section of the Allied Telesis web site at www.alliedtelesis.com/support. You can find links for the following services on this page: ... - Page 14 Preface...
-
Page 15: Chapter 1: Overview
Chapter 1 Overview This chapter contains the following sections: “Features” on page 16 “Package Contents” on page 18 “Front and Back Panels” on page 19 “Management Panel” on page 20 “Management Software” on page 21 ... -
Page 16: Features
Chapter 1: Overview Features Here are the features of the AT-AR2010V router. ETH Ports Here are the basic features of the ETH ports. Two copper ETH ports for WAN connection 10Base-T (IEEE 802.3i), 100Base-TX (IEEE 802.3u), and 1000Base-T (IEEE 802.3ab) compliant ... -
Page 17: Kensington Lock Hole
Installation Guide for AT-AR2010V Router Supports external DC power supply One AC Adapter connector on the back panel for external AC power supply Kensington Lock Here are the basic features of the Kensington lock hole. Hole Used for attaching a lock-and-cable apparatus ... -
Page 18: Package Contents
Chapter 1: Overview Package Contents 1 main unit 1 AC Adapter and regional power cord 1 addendum document sheet 1 USB retainer 1 double-side adhesive tape 2 cable ties 4 stick-on rubber feet kit ... -
Page 19: Front And Back Panels
Installation Guide for AT-AR2010V Router Front and Back Panels The front panel of the AT-AR2010V router is shown in Figure 1. 1000 LINK 100 LINK CONSOLE FAULT DC 12-24V RESET FNC1 FNC2 READY FAULT Figure 1. Front panel of the AT-AR2010V router The back panel of the AT-AR2010V router is shown in Figure 2. -
Page 20: Management Panel
Management Panel Figure 3 identifies the components in the management panel on the AT- AR2010V router. 1000 LINK 100 LINK CONSOLE FAULT DC 12-24V RESET FNC1 FNC2 READY FAULT USB Port Reset Button Console Port Figure 3. AT-AR2010V management panel... -
Page 21: Management Software
Installation Guide for AT-AR2010V Router Management Software The routers are shipped with the management software pre-installed. The software provides a Command Line Interface (CLI) management. In the unlikely event that the management software becomes corrupted or damaged on the router, you can download the software from the Allied Telesis corporate web site and reinstall it on the router. -
Page 22: Eth Ports
Chapter 1: Overview ETH Ports The AT-AR2010V router features two ETH ports for WAN connection. All ports support 10/100/1000 Mbps twisted pair ports and are 10Base-T, 100Base-TX, and 1000Base-T compliant. You can set the port speeds and duplex modes either automatically with IEEE 802.3u Auto-Negotiation or manually with the management software. -
Page 23: Leds
Installation Guide for AT-AR2010V Router LEDs Here are the descriptions of the LEDs. Power LED The Power LED reports the status of DC power. The LED is shown in Figure 5. Power LED 1000 LINK 100 LINK CONSOLE FAULT DC 12-24V... -
Page 24: Fault Led
Chapter 1: Overview Fault LED The Fault LED reports the status of the router. The LED is shown in Figure Fault LED 1000 LINK 100 LINK CONSOLE FAULT DC 12-24V RESET FNC1 FNC2 READY FAULT Figure 6. Fault LED The LED is described in Table 2. Table 2. -
Page 25: Eth1 Port Leds
Installation Guide for AT-AR2010V Router Figure 7. USB LED The LED is described in Table 3. Table 3. USB LED State Description No USB memory device is attached. Steady USB memory device is experiencing Yellow failure. Steady USB memory device is mounted correctly. -
Page 26: Table 4: Leds For Eth1 Port
Chapter 1: Overview The LEDs are described in Table 4. Table 4. LEDs for ETH1 Port State Description Solid Green A port has established a 1000 Mbps link to a network device. Blinking A port is transmitting or receiving data at Green 1000 Mbps. -
Page 27: Eth2 Port Leds
Installation Guide for AT-AR2010V Router ETH2 Port LEDs The ETH2 port has two LEDs that display link, activity, duplex and collision information. The LEDs are shown in Figure 9. 1000 LINK 100 LINK CONSOLE FAULT DC 12-24V RESET FNC1 FNC2... -
Page 28: Function 1 Led
Chapter 1: Overview State Description A port has not established a link with another network device. Function 1 LED The Function 1 LED is shown in Figure 10. The Function 1 LED is user configurable and controlled by trigger actions. Function 1 LED 1000 LINK 100 LINK... -
Page 29: Usb Port
Installation Guide for AT-AR2010V Router USB Port The management panel has a USB port which is shown in Figure 12. You may also use the port for the following maintenance purposes. Store configuration files on a USB device and copy the files to routers whose settings have been lost or corrupted ... -
Page 30: Dc Power Inlet
Chapter 1: Overview DC Power Inlet The router has a DC power inlet which is shown in Figure 13. A single 3- pin power connector is available for DC power input. The front panel power socket is used when the router is mounted in a DIN rail, or powered from a building with a centralized12-24V DC feed. -
Page 31: Usb Retainer Slot
Installation Guide for AT-AR2010V Router USB Retainer Slot The management panel has a USB retainer slot which is shown in Figure 14. You can use the USB retainer kit and the USB retainer slot to prevent the USB device from falling out of the USB port. -
Page 32: Figure 15: Usb Retainer
Chapter 1: Overview Double-side adhesive tape USB retainer ring Stick Back of the USB retainer Cut to an appropriate size Figure 15. USB retainer 2. Mount the USB device into the USB port and then attach the H-shaped tip of the USB retainer to the USB retainer slot as shown in Figure 16. FA U LT C O N S O FA U LT... -
Page 33: Figure 17: Attaching The Cable Tie
Installation Guide for AT-AR2010V Router C O N S O FA U LT FA U LT D C 12 -2 P W R P W R S E T F N C 1 F N C 1 F N C 2... -
Page 34: Console Port
Chapter 1: Overview Console Port The Console port is used to establish a management session with the router to configure its features and parameter settings. The Console port is shown in Figure 18. This type of management uses serial RS-232 and is commonly referred to as local or out-of-band management because it is not conducted over your network. -
Page 35: Reset Button
Installation Guide for AT-AR2010V Router Reset Button The reset button is located between the Console port and the USB port. You may use the reset button to restore the router to its factory default settings or reboot the router. ... -
Page 36: Power Supply
Chapter 1: Overview Power Supply A single 4-pin latching type connector is available on the back panel for power supply. The connector accepts 12V DC power supply. The connector is not accessible when DIN rail mounting kit is used. The rear power socket is only used when the router is sitting horizontally on a desk or table. -
Page 37: Chapter 2: Beginning The Installation
Chapter 2 Beginning the Installation The chapter contains the following sections: “Reviewing Safety Precautions” on page 38 “Choosing a Site for the Routers” on page 41 “Unpacking the Router” on page 42... -
Page 38: Reviewing Safety Precautions
Chapter 2: Beginning the Installation Reviewing Safety Precautions Review the following safety precautions before beginning the installation procedure. Note Safety statements that have the symbol are translated into multiple languages in the Translated Safety Statements document at www.alliedtelesis.com/support. Warning Do not work on equipment or cables during periods of lightning activity. - Page 39 Installation Guide for AT-AR2010V Router Warning Only trained and qualified personnel are allowed to install or replace this equipment. E14 Caution Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits might have on overcurrent protection and supply wiring.
- Page 40 Chapter 2: Beginning the Installation Caution Risk of explosion if battery is replaced by an incorrect type. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Attention: Le remplacement de la batterie par une batterie de type incorrect peut provoquer un danger d’explosion.
-
Page 41: Choosing A Site For The Routers
Installation Guide for AT-AR2010V Router Choosing a Site for the Routers Observe these requirements when planning the installation of the router. If you plan to install the routers on a table, check to be sure that the table is level and stable. -
Page 42: Unpacking The Router
Chapter 2: Beginning the Installation Unpacking the Router Figure 20 lists the items that come with the AT-AR2010V router. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. You should retain the original packaging material in the event you need to return the unit to Allied Telesis. -
Page 43: Chapter 3: Installing The Router And Powering On The Router
Chapter 3 Installing the Router and Powering on the Router The procedures in this chapter are: “Installing the Router on a Table or Desktop” on page 44 “Fitting Rubber Feet” on page 45 “Installing the Router in a DIN Rail” on page 46 ... -
Page 44: Installing The Router On A Table Or Desktop
Chapter 3: Installing the Router and Powering on the Router Installing the Router on a Table or Desktop You may install the routers on a table or desktop. Here are the guidelines to selecting a site. The table should be level and stable. ... -
Page 45: Figure 21: Attaching The Rubber Feet
Installation Guide for AT-AR2010V Router Fitting Rubber Feet If your routers do not already have rubber feet fitted, fit these as follows: 1. Remove all equipment from the package and store the packaging material in a safe place. 2. Turn the router over and place it on a table. - Page 46 Chapter 3: Installing the Router and Powering on the Router Installing the Router in a DIN Rail Observe the following requirements when choosing a DIN rail site for your router: The site should allow for easy access to the ports on the front of the router, so that you can easily connect and disconnect cables, and view the port LEDs.
-
Page 47: Figure 22: Orienting The Mounting Kit
Installation Guide for AT-AR2010V Router Figure 22. Orienting the mounting kit 2. Secure the mounting kit to the unit with the screws, as show in Figure 23. Figure 23. Securing the mounting kit 3. Rotate the router down to snap it into place. -
Page 48: Figure 24: Rotating The Router Down To Snap It Into Place
Chapter 3: Installing the Router and Powering on the Router A R 2 0 1 Figure 24. Rotating the router down to snap it into place 4. After snapping the router onto the DIN rail, go to Chapter 4, “Cabling the Networking Ports”... - Page 49 Installation Guide for AT-AR2010V Router Connecting DC Power to a Power Supply Module Warning The router has two power connectors. Only one connector may be connected to a power source at a time. To power on the router, perform the following procedure: 1.
-
Page 50: Figure 25: Connecting The Management Cable To The Console Port
Chapter 3: Installing the Router and Powering on the Router Starting a Local Management Session This procedure requires a terminal or a terminal emulator program and the management cable that comes with the router. To start a local management session on the router, perform the following procedure: 1. -
Page 51: Figure 26: Router Initialization Messages
Installation Guide for AT-AR2010V Router Monitoring the Initialization Processes It takes about thirty seconds for the router to initialize its management software programs and features, and load the default configuration. You may also monitor the bootup sequence by connecting a terminal or computer that has a terminal emulator program, to the console port on the router. -
Page 52: Figure 27: Router Initialization Messages (Continued)
Chapter 3: Installing the Router and Powering on the Router Checking system reboot stability... Starting base/cron... Starting base/appmond... Starting hardware/openhpi... Starting hardware/timeout... Starting base/inet... Starting base/modules... Received event modules.done Received event board.inserted Received event hardware.done Starting network/startup... Starting base/external-media... Starting network/roboswitch... Received event network.enabled Initializing HA processes: auth, hostd, hsl, irdpd, lacp, loopprot, mstp... -
Page 53: Chapter 4: Cabling The Networking Ports
Chapter 4 Cabling the Networking Ports This chapter contains the following procedures: “Cabling the Twisted Pair Ports” on page 54... -
Page 54: Cabling The Twisted Pair Ports
Chapter 4: Cabling the Networking Ports Cabling the Twisted Pair Ports Here are the guidelines to cabling the 10/100/1000Base-T twisted pair ports. The connectors on the cables should fit snugly into the ports, and the tabs should lock the connectors into place. ... - Page 55 Installation Guide for AT-AR2010V Router support Auto-Negotiation and have a fixed duplex mode. You should disable Auto-Negotiation on those ports and set their duplex modes manually to avoid the possibility of duplex mode mismatches. A router port using Auto-Negotiation defaults to half-...
- Page 56 Chapter 4: Cabling the Networking Ports...
-
Page 57: Chapter 5: Troubleshooting
This chapter contains suggestions on how to troubleshoot the router if a problem occurs. Note For further assistance, please contact Allied Telesis Technical Support at www.alliedtelesis.com/support. Problem 1: The POWER LED on the front of the router is off. Solutions: The unit is not receiving power. Try the following: ... - Page 58 Chapter 5: Troubleshooting a different cable. If the twisted pair port is able to establish a link, then the problem is with the cable or the other network device. Verify that the twisted pair cable does not exceed 100 meters (328 feet).
-
Page 59: Appendix A: Technical Specifications
Appendix A Technical Specifications Physical Specifications Dimensions (Height x Width x Depth) Table 6. Product Dimension AT-AR2010V 42.5 mm x 140 mm x 105mm (1.7 in. x 5.5 in. x 4.1 in.) Weight Table 7. Product Weight AT-AR2010V 556 grams (1.2 lb.) Environmental Specifications Table 8. - Page 60 Appendix A: Technical Specifications Table 8. Environmental Specifications (Continued) Maximum Operating Altitude 2,000 m (6,562 ft) You need to de-rate the operating temperature as altitude increases. A de-rating of 1° C for every 305 m (1,000 ft) normally applies. Maximum Nonoperating Altitude 3,000 m (9,843 ft)
-
Page 61: Power Specifications
Installation Guide for AT-AR2010V Router Power Specifications Maximum Power Consumptions Table 9. Maximum Power Consumption DC Power Consumption 13 watts AC Power Consumption 13 watts Input Voltages Table 10. Input Voltages DC Power Consumption 12-24V, 1.5A maximum AC Power Consumption 12VDC, 1.5A maximum... -
Page 62: Rj-45 Twisted Pair Port Pinouts
Appendix A: Technical Specifications RJ-45 Twisted Pair Port Pinouts Figure 28 illustrates the pin layout of the RJ-45 connectors and ports. Figure 28. RJ-45 Socket Pin Layout (Front View) Table 12 on page 62 lists the pin signals for 10 and 100 Mbps. Table 12. -
Page 63: Rj-45 Style Serial Console Port Pinouts
Installation Guide for AT-AR2010V Router Table 13. Pin Signals for 1000 Mbps (Continued) Pair 3 - Pair 2 - Pair 4 + Pair 4 - RJ-45 Style Serial Console Port Pinouts Table 14 lists the pin signals of the RJ-45 style serial Console port. -
Page 64: Table 15: Front Dc Power Connector Pin Signals
Appendix A: Technical Specifications Table 14 lists the pin signals of the DC power connector on the front panel. Table 15. Front DC Power Connector Pin Signals Signal Negative Positive 12-24V DC...
