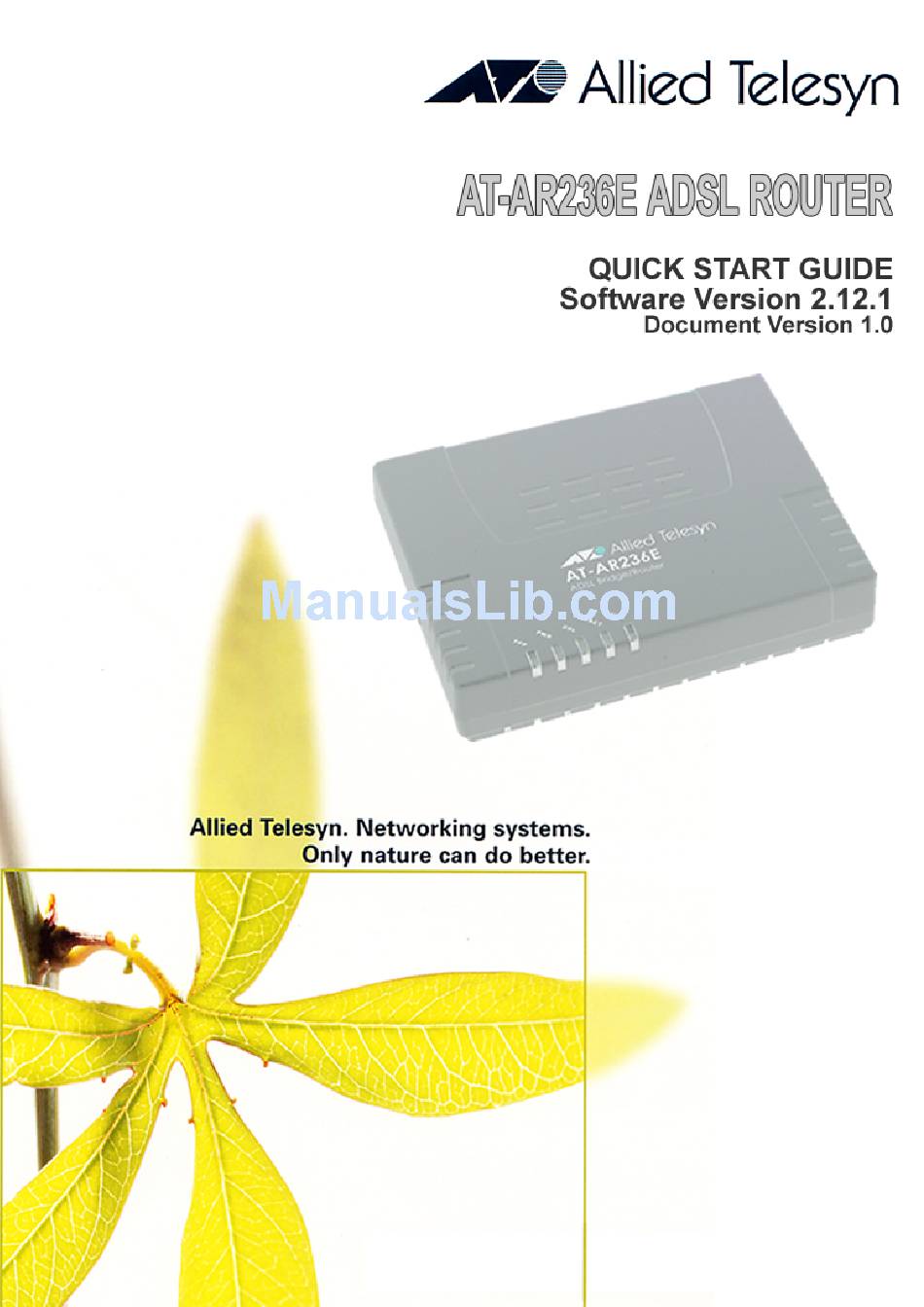

  • Page 2 Important: This Quick Start Guide was written to allow you to complete a basic setup configuration for the Allied Telesyn AT-AR236E ADSL router. At which point you should have access to the Internet via the ISP account that you have already organized.

  • Page 3: Pre-Installation

    ADSL ROUTER 236E QUICK START GUIDE 1.0 A. Contents Check that you have received the following items in the AT-AR236E pack. 1. AT-AR236E Router. 2. 240 VAC to 9VDC power adapter. 3. ADSL Phone Cable (BT to RJ11). 4. Ethernet Patch Cable (RJ45 to RJ45).

  • Page 4: Getting Started

    = 255.255.255.0 Default Gateway = 192.168.1.1 The default IP address of the AT-AR236E ADSL router is 192.168.1.1. Enter this address into your browser’s address bar and press enter. You should receive the Modem Access Screen from the router. Figure 1. Mode...
  • Page 5 ADSL ROUTER 236E QUICK START GUIDE 1.0 Select the country where this router is to be operated in and click on the “Next” button (Figure 2). The default settings for the country you selected are displayed. To continue, click on the “Next” button (Figure 3). The quick start, Login Settings screen will be displayed.
  • Page 6 ADSL ROUTER 236E QUICK START GUIDE 1.0 While this process is underway, a screen stating “Trying to connect to ISP…“will be displayed. Once the connection has been successfully completed the, “Connections” screen will appear. This screen will display the connection name, type, the IP address allocated to the connection and the status of the connection.
  • Page 7 You now need to decide what IP address range you intend to use and how IP address allocation is going to be done on your LAN network. By default, the AT-AR236E is configured for the IP address range 192.168.1.0 with a mask of 255.255.255.0. Also by default, DHCP is on. DHCP is an automated method of allocating IP addresses to PCs as they boot up.
  • Page 8 ADSL ROUTER 236E QUICK START GUIDE 1.0 It can take up to 10 seconds for all the fields to show their information. The DHCP Configuration screen allows you to turn DHCP off or on (if you are not sure, leave DHSP on). Click on Apply once you have completed making changes. To change the address of the router or the whole address range, click on “Management IP”...
  • Page 9 ADSL ROUTER 236E QUICK START GUIDE 1.0 Here we can check the WAN or ADSL settings that have been configured so far. mall changes can be made here quickly without restarting the whole procedure. may be useful to change the name of this connection to something more eaningful or descriptive.
  • Page 10 ADSL ROUTER 236E QUICK START GUIDE 1.0 Always check that the router is installed properly. Check the website for information and how to troubleshoot the router. If you have difficulties contact your reseller or distributor for technical assistan ce relating to warranties, installation and operation. They will escalate the problem through the appropriate channels.
